The FANUC A05B-2255-C102#EMH is an English-language Material Handling iPendant used to program, operate and monitor compatible FANUC industrial robots. FANUC documentation identifies the #EMH configuration as English / Material Handling.

Natural search results commonly describe this version as an iPendant without touch-panel operation. Robot commands and screen navigation are performed through physical keys and controls.

• 100% pendant functions tested before shipment
• Worldwide DHL, UPS and FedEx shipping
• Testing video provided upon request
• Repair evaluation and optional exchange available

Product Details

Brand: FANUC
Part Number: A05B-2255-C102#EMH
Alternative Format: A05B2255C102EMH
Official Configuration: English / Material Handling
Product Type: Robot iPendant Teach Pendant
Interface Style: Physical-key operation
Touch Function: Non-touch configuration
Product Series: A05B-2255
Documented Controller Family: Compatible R-30iB family configurations
Application: Material handling robot operation
Additional Market Reference: XGMF-23758
Availability: Contact us for current availability
Core Exchange: Subject to evaluation
Repair: Repair evaluation available
Testing: Display, keypad, communication, emergency stop and enabling-switch functions checked with a compatible FANUC controller

Teach Pendant Function

The A05B-2255-C102#EMH provides a handheld interface for compatible FANUC robot setup and operation. It allows qualified personnel to view robot status and alarms, navigate menus, edit applicable programs, jog axes and perform supported teaching or maintenance procedures.

Available screens and commands depend on the controller software, installed options, user access and robot application. The #EMH suffix identifies the English material-handling configuration; it is not a general suffix for every robot application.

Non-Touch Configuration

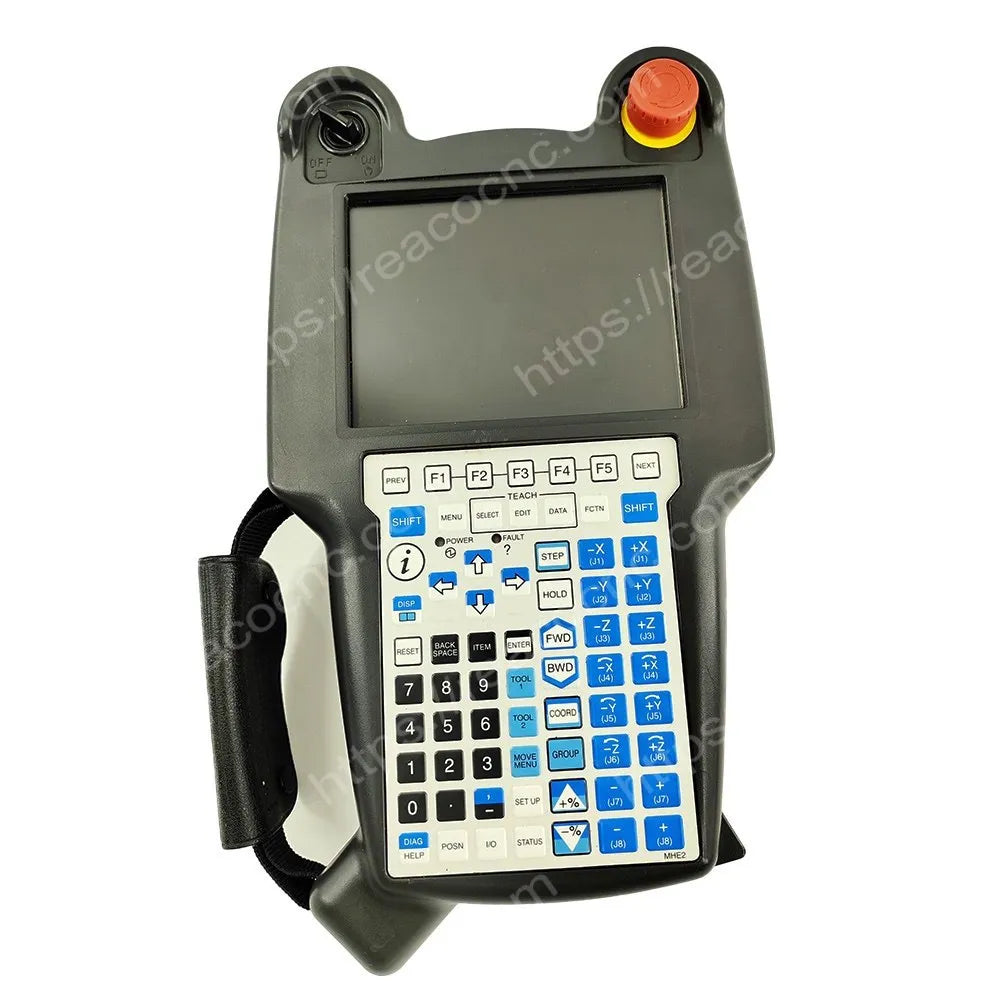

This version has a display for viewing controller information, but input is performed through physical keys rather than touch-screen operation.

Other A05B-2255-C102 suffixes may use different application, language or screen configurations. Their descriptions should not be applied automatically to the #EMH version.

Controller Compatibility

FANUC documentation lists the A05B-2255-C102#EMH in applicable R-30iB Mate and R-30iB Mate Plus controller information. Compatibility still depends on the controller generation, connector, cable, software, safety circuit and application.

The base number A05B-2255-C102 without its suffix is not sufficient for ordering. For example, #EAW denotes English/Arc Welding and #ESW denotes English/Spot Welding. Similar housing or connectors do not prove interchangeability.

Compatibility Check

Before ordering, verify:

• Complete number A05B-2255-C102#EMH
• Controller and robot model
• Teach-pendant connector and cable configuration
• Controller software series
• Required language and robot application
• Touch or non-touch configuration
• Emergency-stop and enabling-switch arrangement
• Condition of the keys, display, cable and housing

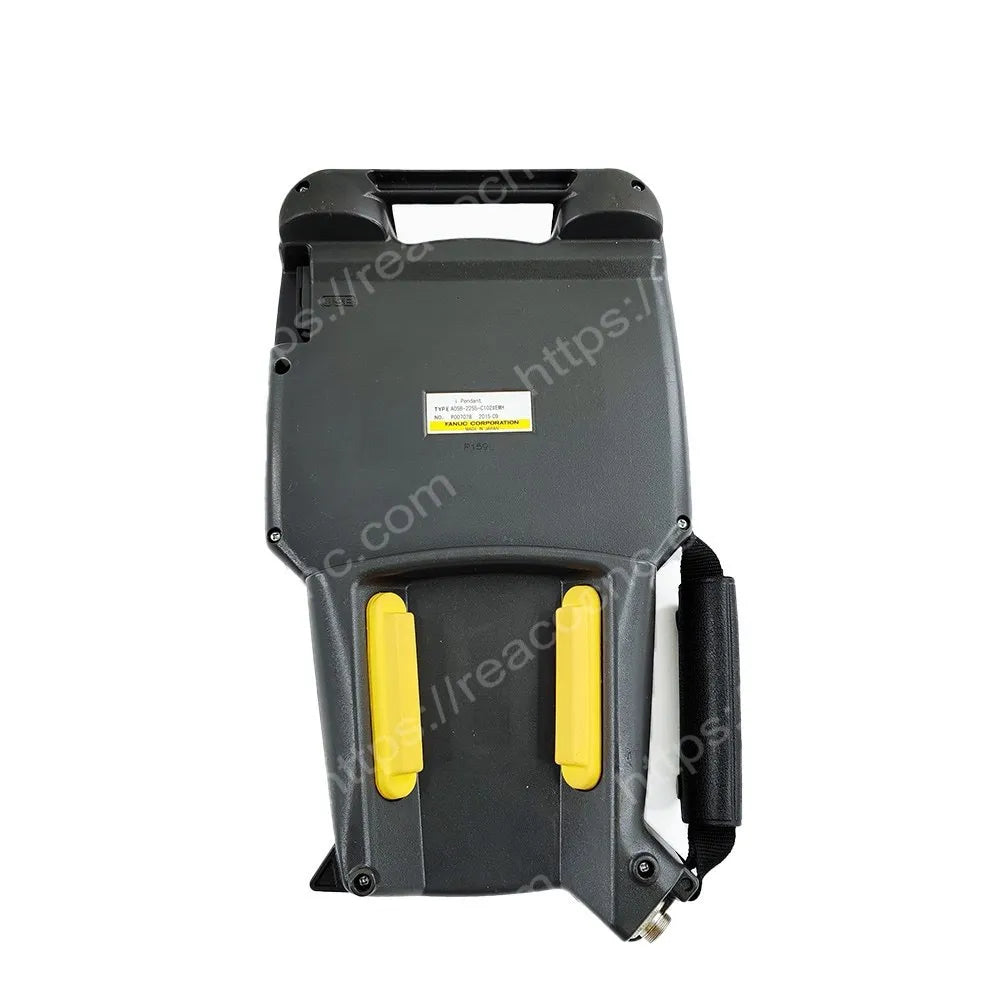

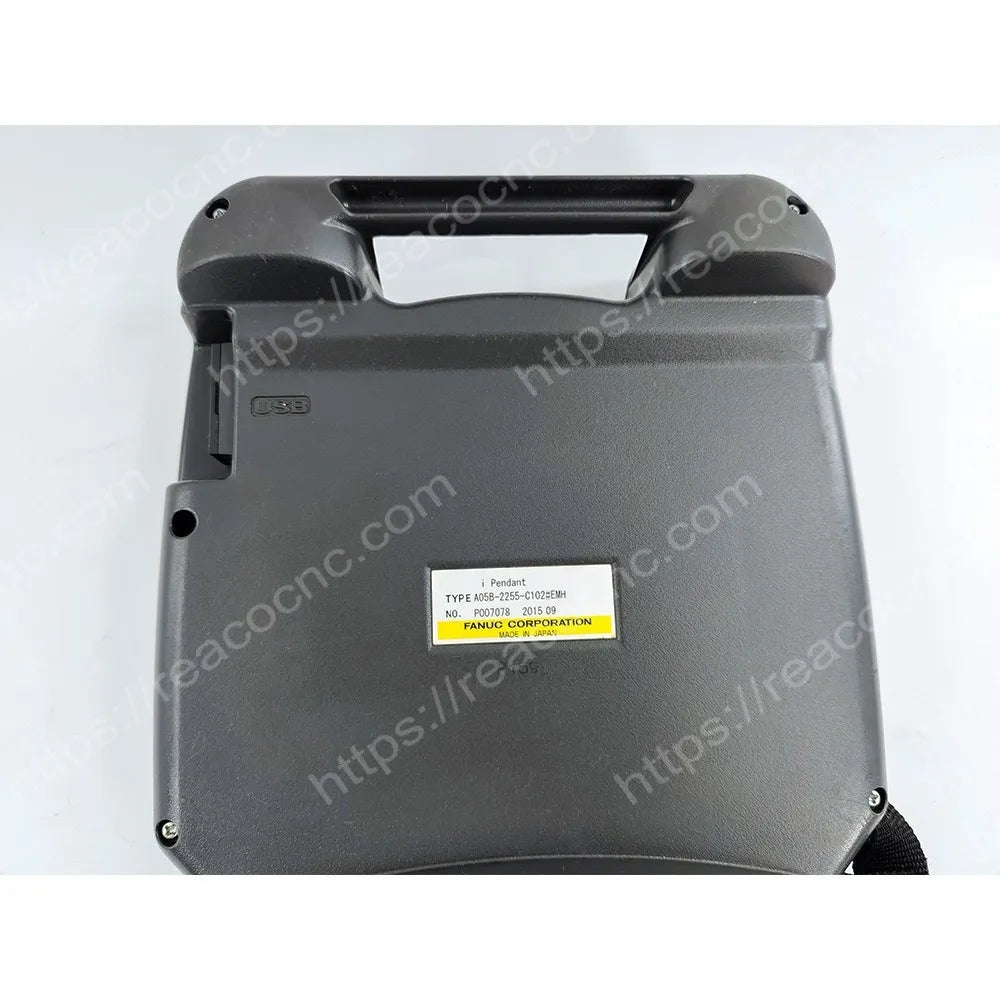

Send photographs of the rear label, connector, cable and front key layout if assistance is needed.

Product Classification

The A05B-2255-C102#EMH is a robot teach pendant, not a PLC, robot main controller, CNC operator panel or standalone HMI.

Replacement and Safety Note

Display failure, non-responsive keys, communication faults, cable damage or safety-switch faults may indicate a pendant problem, but the controller, cable and safety circuit should also be checked.

Before operation, qualified personnel must verify the emergency-stop circuit, three-position enabling switch, key response and controlled robot movement according to the machine’s safety procedures.
