Name: FANUC A06B-0116-B103#0100 βiS 1/6000 AC Servo Motor
Brand: FANUC
Price: 744.0 USD
Availability: InStock

FANUC A06B-0116-B103#0100 βiS 1/6000 AC Servo Motor

In stock

• Testing Video Provided

$744.00 USD

Shipping:

Delivery: Estimated 2- 6 business days delivery. See details

Returns: 14 days returns. See details

All parts are covered by REACO CNC warranty

All parts tested under load

Fast response, global shipping, expedited shipping available

Free technical support

More than 100,000 parts in stock & ready for delivery

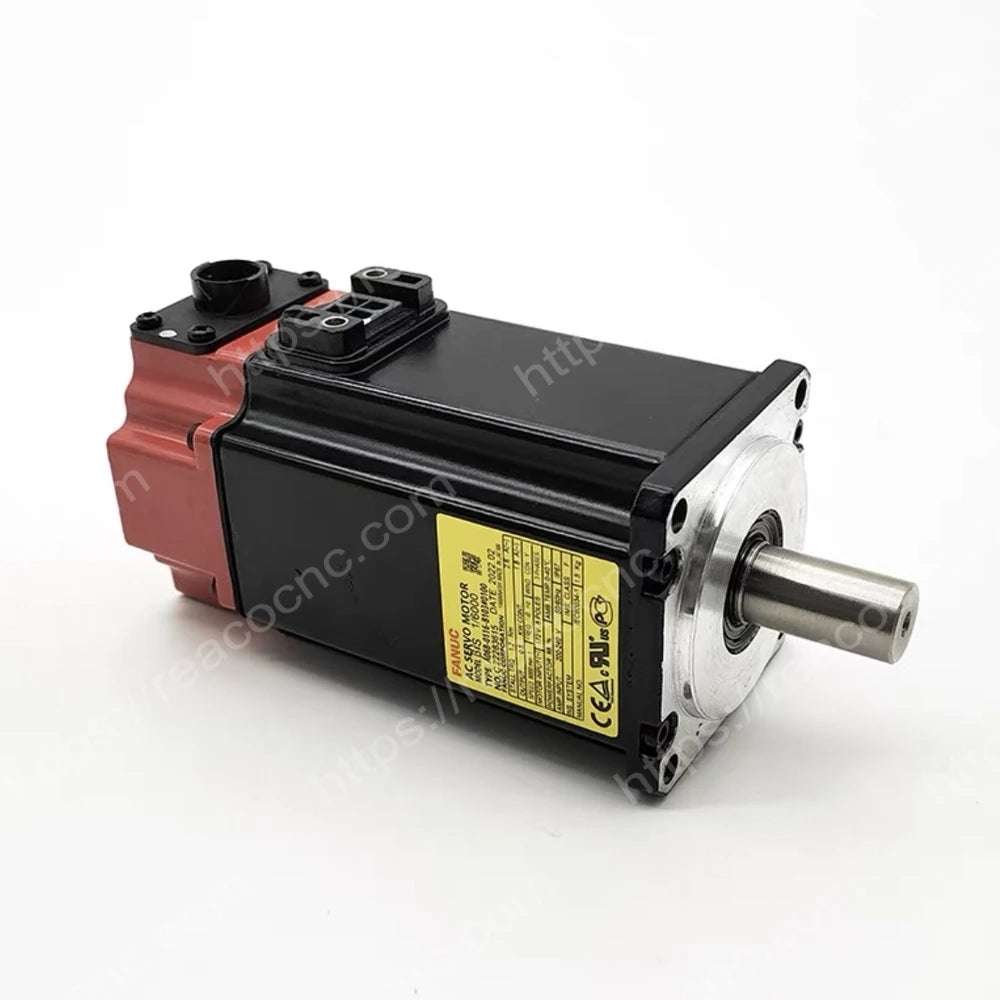

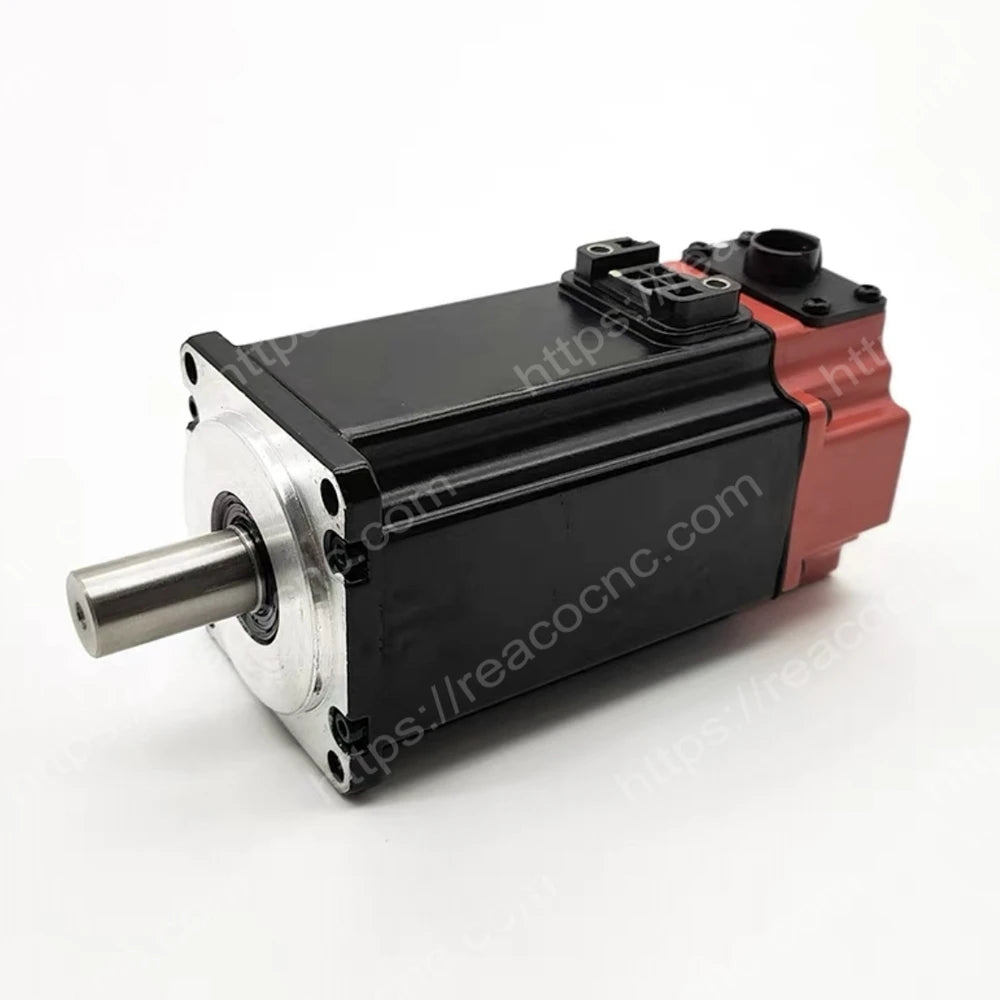

FANUC A06B-0116-B103#0100 is a βiS 1/6000 AC servo motor rated at 0.5kW and 6000rpm. Designed for high-speed CNC feed-axis and industrial positioning applications, this exact configuration has a straight smooth shaft, no holding brake, a βiA64 absolute pulse coder and IP67 protection.

A06B-0116-B103#0100 Specifications

Brand	FANUC
Model / MPN	A06B-0116-B103#0100
Motor Model	βiS 1/6000 AC servo motor
Rated Output	0.5kW / 0.67HP
Rated / Maximum Speed	6000rpm / 6000rpm
Stall / Maximum Torque	1.2Nm / 5Nm
Stall Current	2.7A RMS
Shaft / Brake	Straight smooth shaft without keyway / no brake
Feedback	βiA64 absolute pulse coder, 65,536 divisions/rev
Protection	IP67 specification (#0100)
Approximate Mass	1.5kg
Condition	New, refurbished, or used 90% new; subject to stock
Handling	Normally 1–3 business days
Shipping / ETA	DHL, UPS or FedEx worldwide; typically 2–6 business days
Warranty	1 year for new/refurbished; 3 months for used
Service / Packing	100% tested, test video and technical support; reinforced protective packing

High-Speed Servo Feedback

The βiS 1/6000 motor delivers compact, responsive motion for compatible FANUC servo systems. Its βiA64 absolute pulse coder supplies position and speed feedback at 65,536 divisions per revolution. Final positioning behavior depends on the amplifier, CNC, parameters and machine configuration.

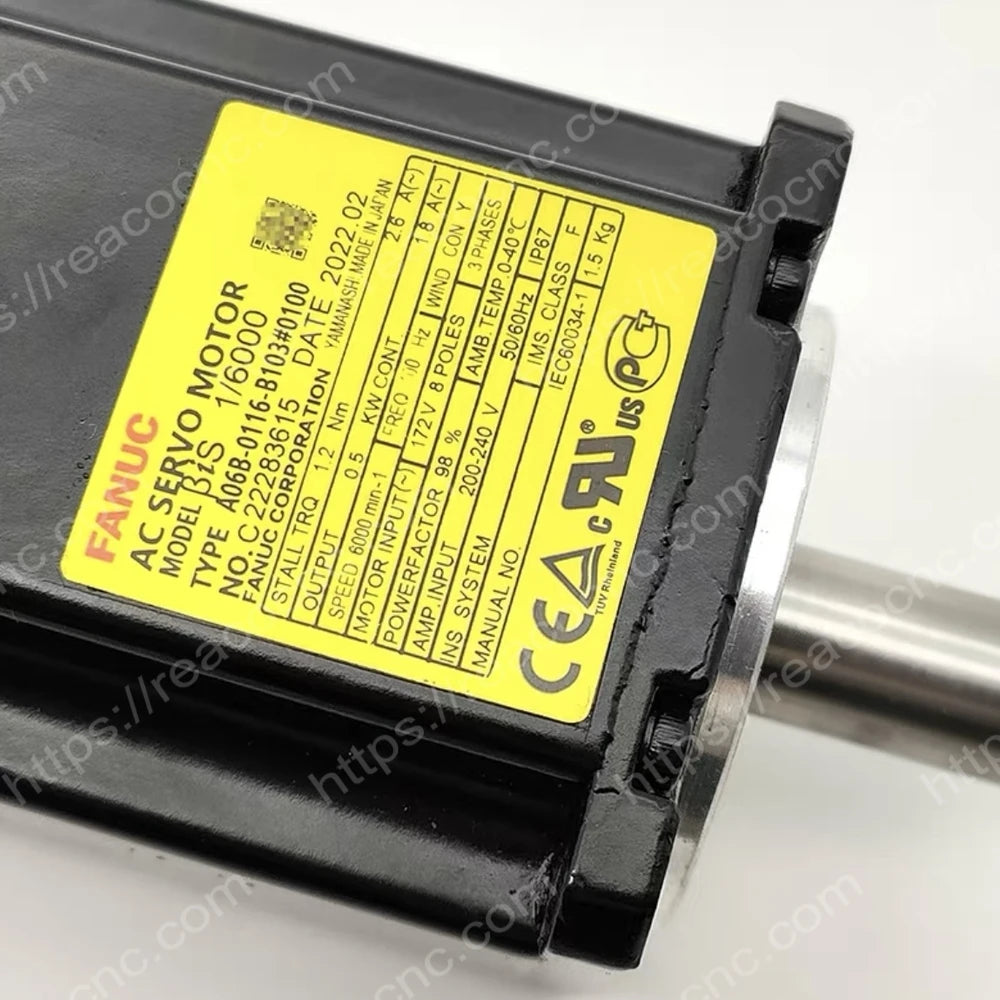

Exact Nameplate and Compatibility

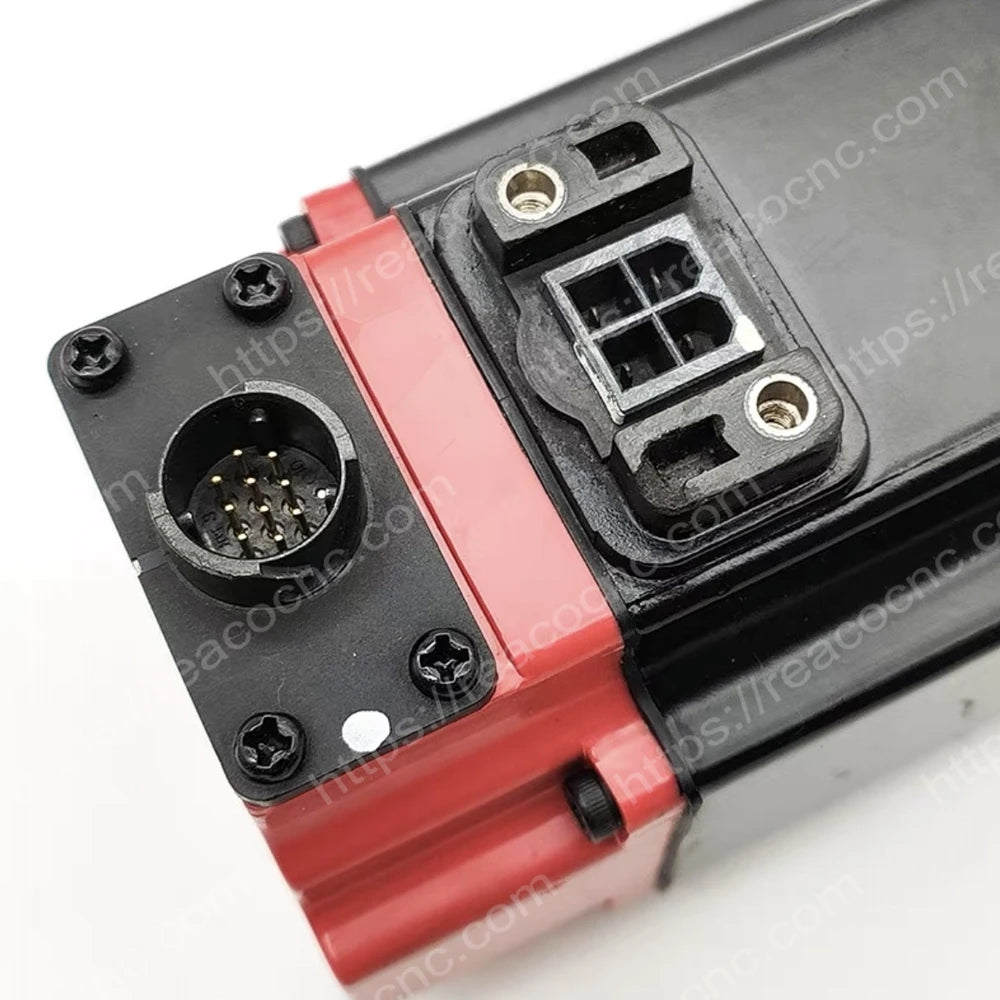

A06B-0116 identifies the βiS 1/6000 model. In B103, the “1” specifies a straight shaft without keyway and no brake, while “03” identifies βiA64 feedback for this motor size. #0100 specifies IP67 protection. Do not substitute B003, B203, B403 or another suffix without checking the shaft, brake, coder, connectors and amplifier compatibility.

Testing and Installation

REACO CNC checks the nameplate, shaft, flange, connectors, windings, insulation, pulse-coder feedback and running condition before shipment. Before installation, isolate power and confirm the complete motor code, mechanical fit, servo amplifier, cables and parameters. Qualified personnel should commission the motor and verify rotation, feedback and machine reference data.
