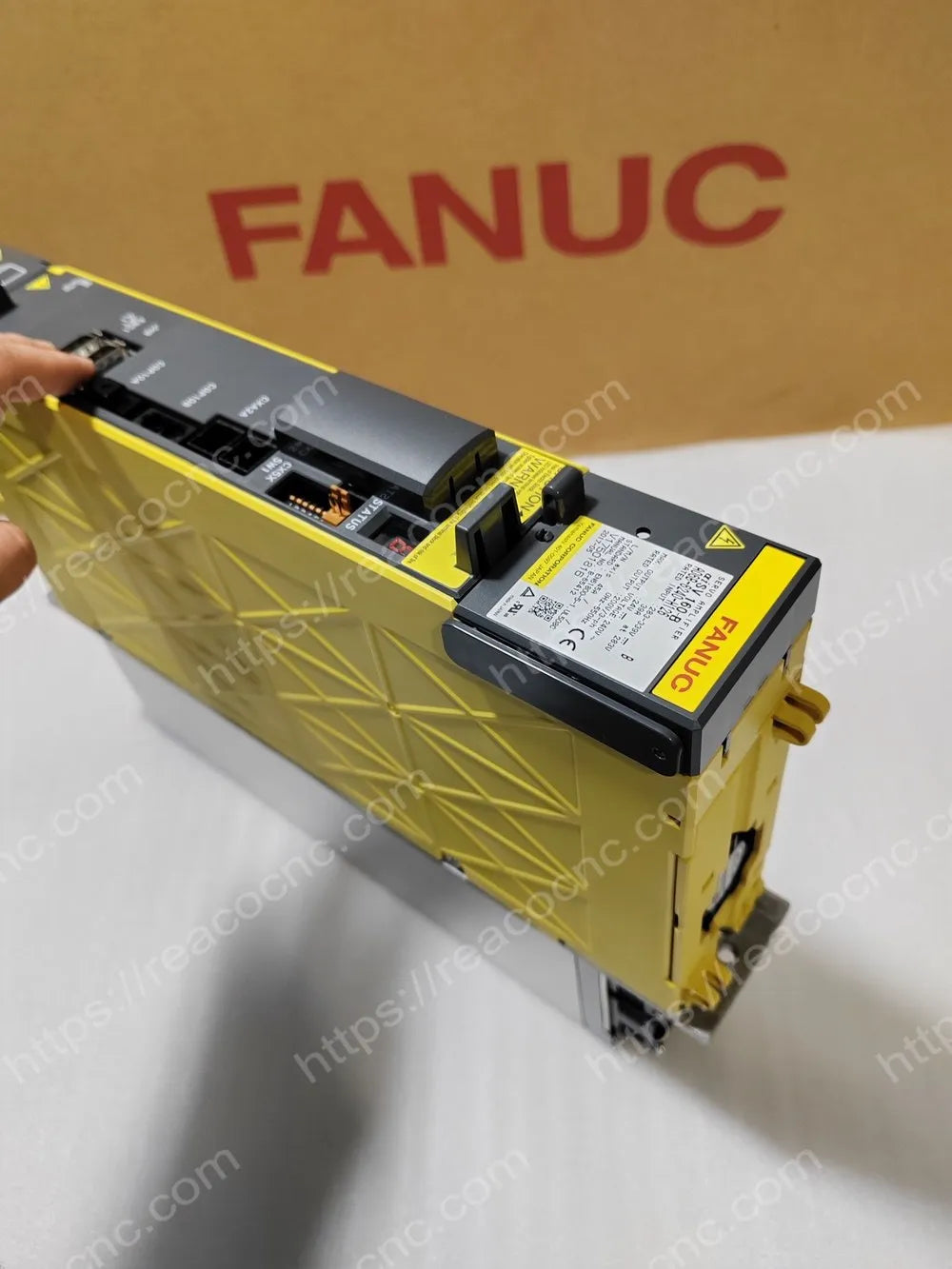

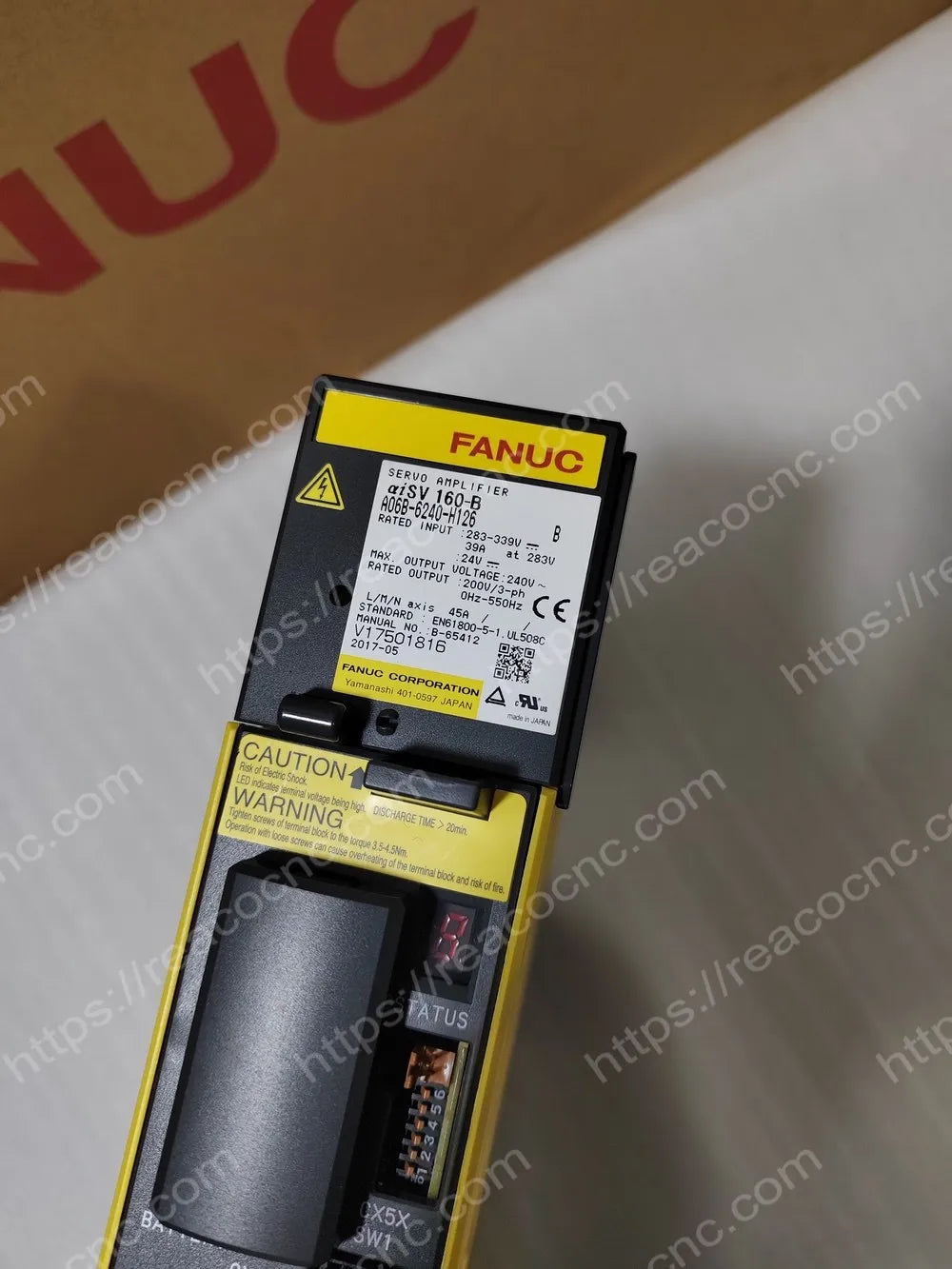

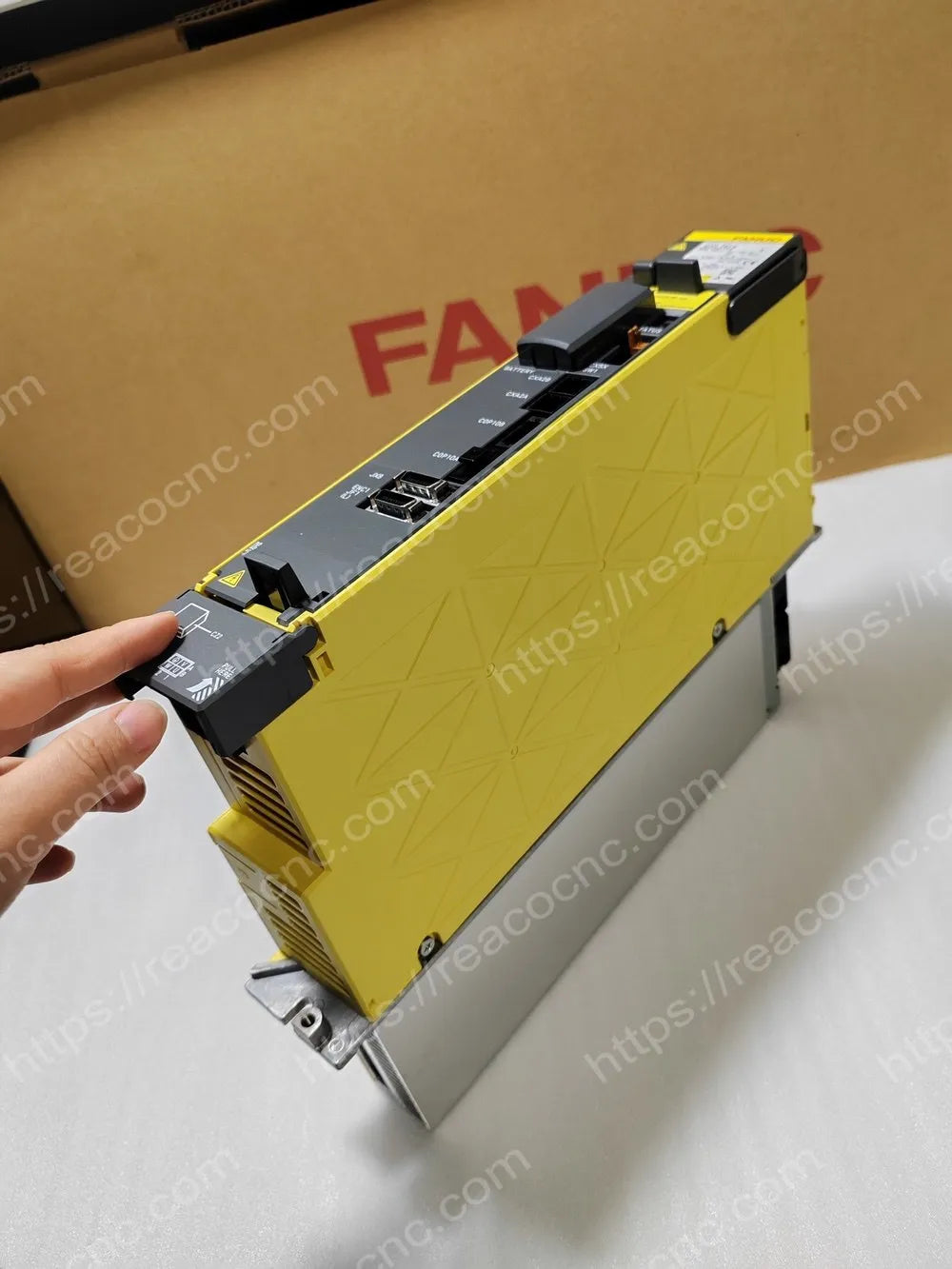

The FANUC A06B-6240-H126 is an αiSV 160-B single-axis servo amplifier module used in compatible FANUC CNC servo systems.

FANUC technical documentation identifies the A06B-6240-H126 as an upgraded version of the αiSV-B 200V-series single-axis amplifier. It also supports connection to an SSM, distinguishing it from some earlier αiSV 160-B configurations.

The amplifier provides power and control for one servo axis. It is commonly searched for as a FANUC AiSV 160-B servo amplifier, Alpha i-B servo drive, single-axis servo amplifier module, or CNC servo drive.

Published specifications consistently list an input range of 283–339VDC, a maximum output voltage of 240VAC, an output current of 45A for one axis, and an output frequency range of 0–550Hz.

The A06B-6240-H126 is suitable for replacing a confirmed faulty amplifier associated with servo alarms, failure to enable the axis, unstable motor control, abnormal amplifier indications, or damaged control and power circuitry.

• Single-axis servo operation tested before shipment

• In stock and prepared for prompt dispatch

• Worldwide DHL, UPS, and FedEx shipping

Product Details

• Brand: FANUC
• Part Number: A06B-6240-H126
• Alternative Format: A06B6240H126
• Official Model: αiSV 160-B
• Type: Servo Amplifier Module / Servo Drive
• Amplifier Family: FANUC αiSV-B
• Version: Upgraded Single-Axis Specification
• Axis Configuration: 1 Axis
• Input Series: 200V Class
• Input Voltage: 283–339VDC
• Output Voltage: Up to 240VAC
• Output Current: 45A, Single Axis
• Output Frequency: 0–550Hz
• SSM Connection: Supported
• Product Series: A06B-6240
• Application: FANUC CNC Servo Systems
• Category: FANUC Servo Amplifier / Single-Axis Servo Drive

The model classification and SSM support are confirmed in FANUC technical material; the electrical values are consistently published by multiple specialist FANUC suppliers.

Compatibility Note

The A06B-6240-H106 and A06B-6240-H126 are both identified as αiSV 160-B amplifiers, but FANUC documentation lists H126 separately as an upgraded specification with SSM connection support. They should not be treated as automatically interchangeable without checking the complete machine configuration.

Before ordering, please verify:

• Complete FANUC amplifier part number
• Model marking αiSV 160-B
• H106 or H126 specification
• SSM connection requirement
• Single-axis and 200V-class configuration
• Connected FANUC servo motor model
• Original terminal and connector arrangement
• CNC parameters and servo-system configuration
• Hardware revision shown on the original unit

Common Use Cases

• FANUC αiSV 160-B amplifier replacement
• Single-axis CNC servo-drive maintenance
• Troubleshooting an axis that cannot enable
• Diagnosis of unstable or abnormal servo-motor operation
• Repair of amplifier control or power circuitry
• Replacement of an earlier or damaged servo amplifier
• Preparation of a tested spare drive for machine maintenance

Sales & Support

Each A06B-6240-H126 servo amplifier is inspected and tested under applicable operating conditions before delivery.

Worldwide delivery is available through DHL, UPS, FedEx, and other express carriers. REACO CNC provides servo-amplifier repair service, warranty coverage, testing-video support, and technical assistance for FANUC CNC drive systems.
