Name: FANUC A06B-6320-H332 βiSVSP 40/40/40-11-B Servo Spindle Amplifier
Brand: FANUC
Price: 6617.0 USD
Availability: InStock

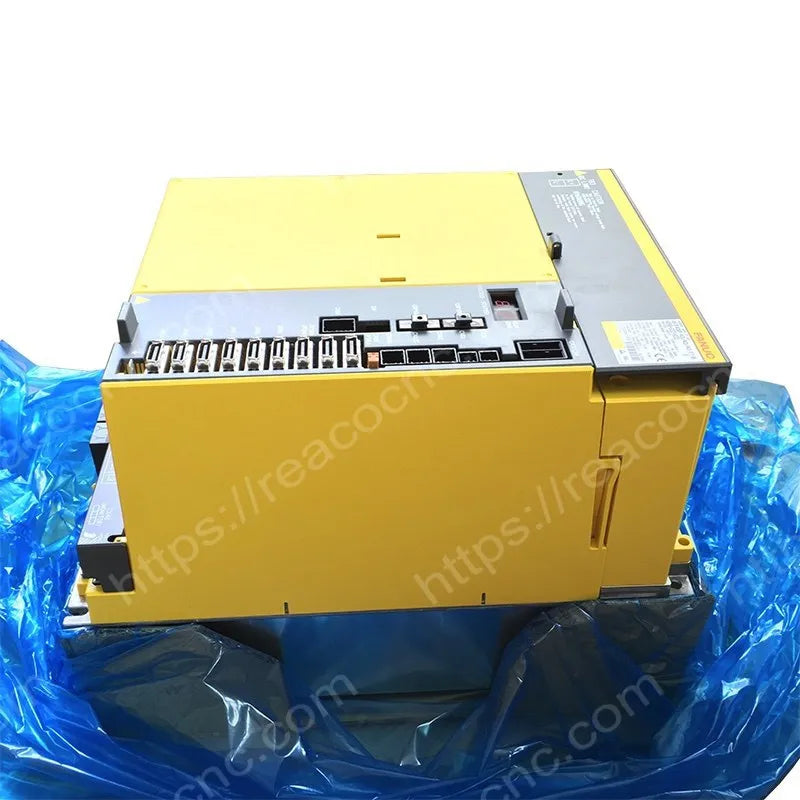

FANUC A06B-6320-H332 βiSVSP servo spindle amplifier main view

FANUC A06B-6320-H332 βiSVSP 40/40/40-11-B Servo Spindle Amplifier

In stock

• Testing Video Provided

$6,617.00 USD

Shipping:

Delivery: Estimated 2- 6 business days delivery. See details

Returns: 14 days returns. See details

All parts are covered by REACO CNC warranty

All parts tested under load

Fast response, global shipping, expedited shipping available

Free technical support

More than 100,000 parts in stock & ready for delivery

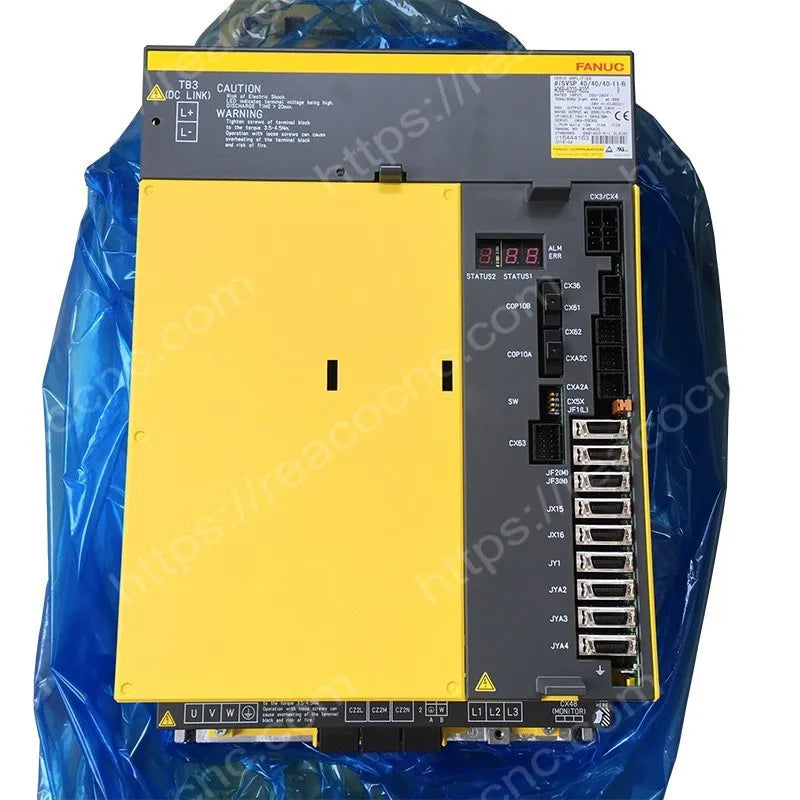

FANUC A06B-6320-H332 is a βiSVSP40/40/40-11-B integrated servo and spindle amplifier for compatible FANUC CNC machine tools. It combines power conversion, three servo-axis channels and one spindle channel in a 260mm-wide module.

The unit provides three 40-class servo channels with 13Arms rated output per axis and an 11kW-class spindle channel rated at 56Arms.

A06B-6320-H332 Product Specifications

Brand	FANUC
Model / MPN	A06B-6320-H332
Series / Model	βi-B / βiSVSP40/40/40-11-B
Module Type	Integrated power, servo and spindle amplifier

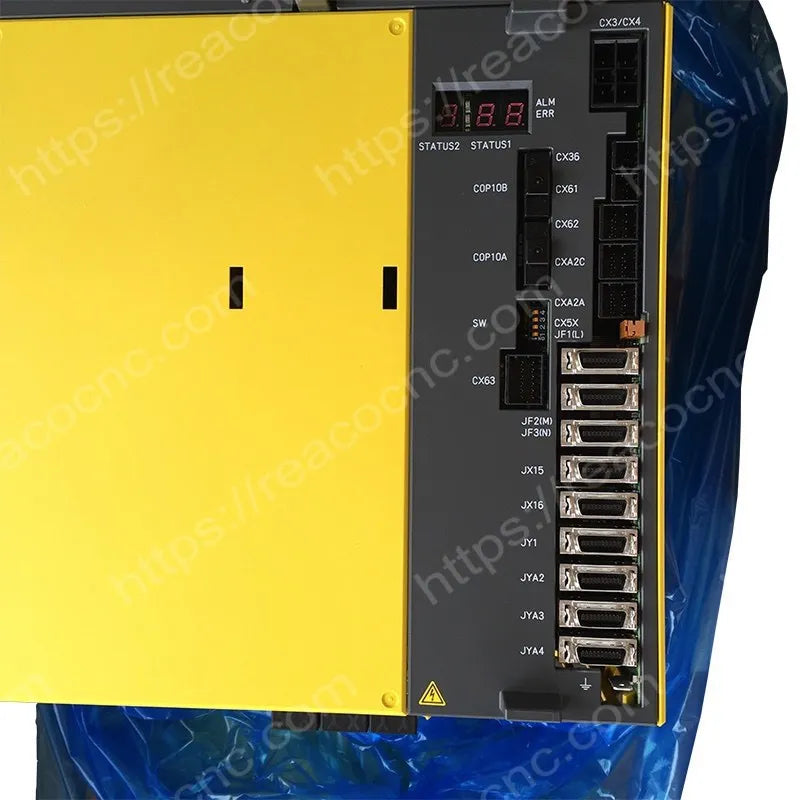

Servo Channels	3 axes: L, M and N
Servo Output	13Arms rated per axis; 40-class each
Spindle Channel	11kW class / 56Arms rated
Main Input	3-phase 200–240VAC (−15%, +10%)
Input Frequency	47–63Hz
Input Current	Approximately 46Arms at 200VAC
Main Power Capacity	16kVA
Control Power	24VDC ±10%, 2.7A maximum
Communication	FSSB optical servo interface
Housing Width	260mm
Cooling	Forced-air radiator cooling
Condition	New, refurbished, or used 90% new; subject to stock
Testing	100% tested; test video available
Handling	Normally 1–3 business days
Shipping / ETA	DHL, UPS, or FedEx worldwide; typically 3–7 business days
Warranty	1 year new/refurbished; 3 months used 90% new
Service / Packing	Free technical support; anti-static reinforced packing

Integrated Three-Axis and Spindle Control

The module controls three CNC feed axes and the machine spindle. FSSB carries servo commands and feedback data, while the spindle section manages speed and position feedback according to the installed CNC, motor and sensor configuration.

Model and Replacement Compatibility

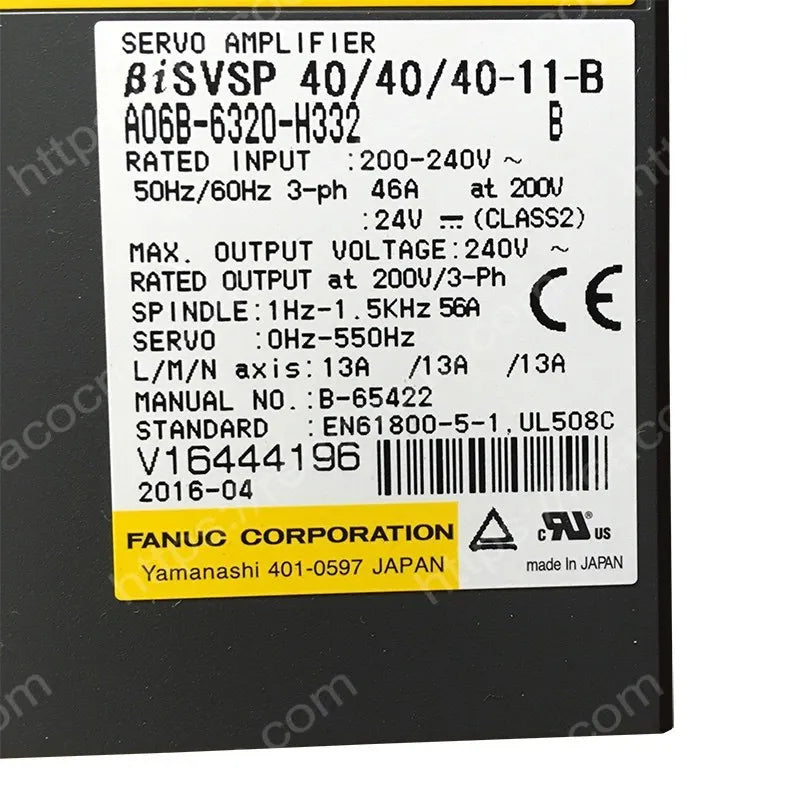

Match the complete A06B-6320-H332 nameplate. H333 is the related 40/40/40-15-B version with different spindle capacity; H312 is a 20/20/40-11-B model. A06B-6321-H332 has the same channel designation but uses a narrower 180mm construction, so it is not an automatic physical replacement.

Testing and Installation Notes

REACO CNC checks the nameplate, power stage, DC link, three servo channels, spindle channel, FSSB, cooling and alarms as applicable. Confirm the motors, feedback devices, connectors, AC supply and CNC parameters.

Qualified personnel must isolate power and verify the charge indicator is off before handling. Related resources: FANUC servo and spindle drives and FANUC CNC drive repair service.
