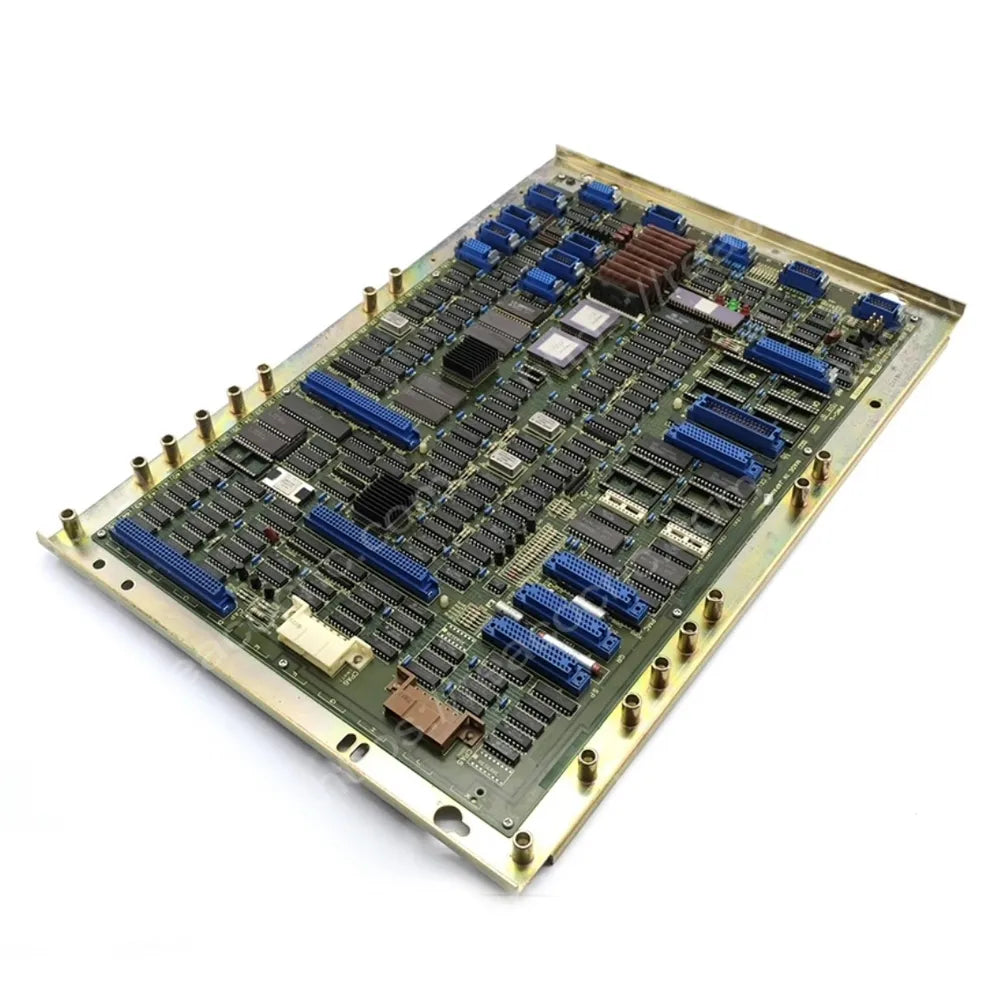

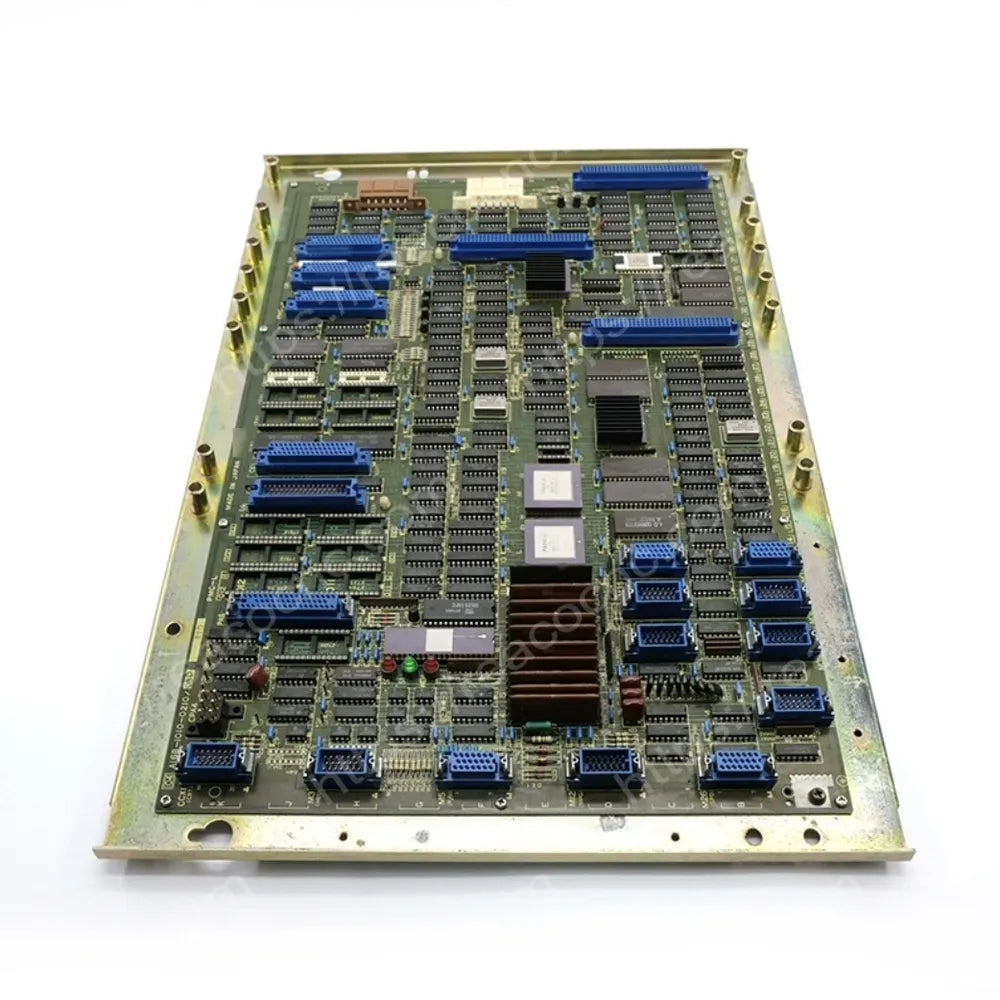

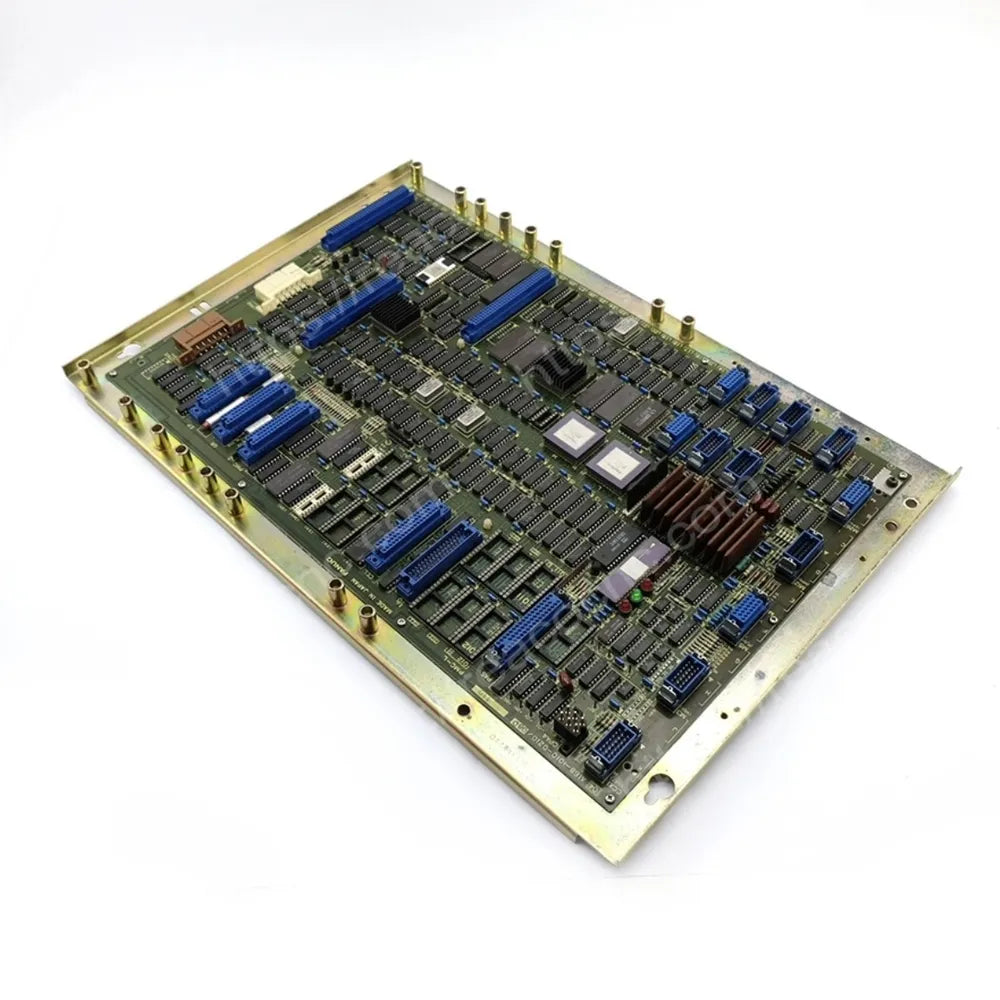

The FANUC A16B-1010-0210 is a discontinued digital master PCB for early FANUC Series 0 Model A CNC controls. It serves as the main control board in compatible 0MA, 0TA, 0PA and 0GA configurations, coordinating CNC processing, program and parameter memory, basic graphics, and digital axis-control functions.

This is a configuration-sensitive board. The complete drawing number, revision suffix, system software, ROMs, SRAM capacity, PMC configuration and fitted option boards must match the original control.

A16B-1010-0210 Product Information

Series 0A Master-Control Functions

A16B-1010-0210 is the central digital control board rather than a servo amplifier or general-purpose PLC module. Its exact axis and spindle capability depends on the installed CNC software and hardware options. Machine I/O and expanded functions may use separate peripheral or plug-in boards.

Revision and Replacement Compatibility

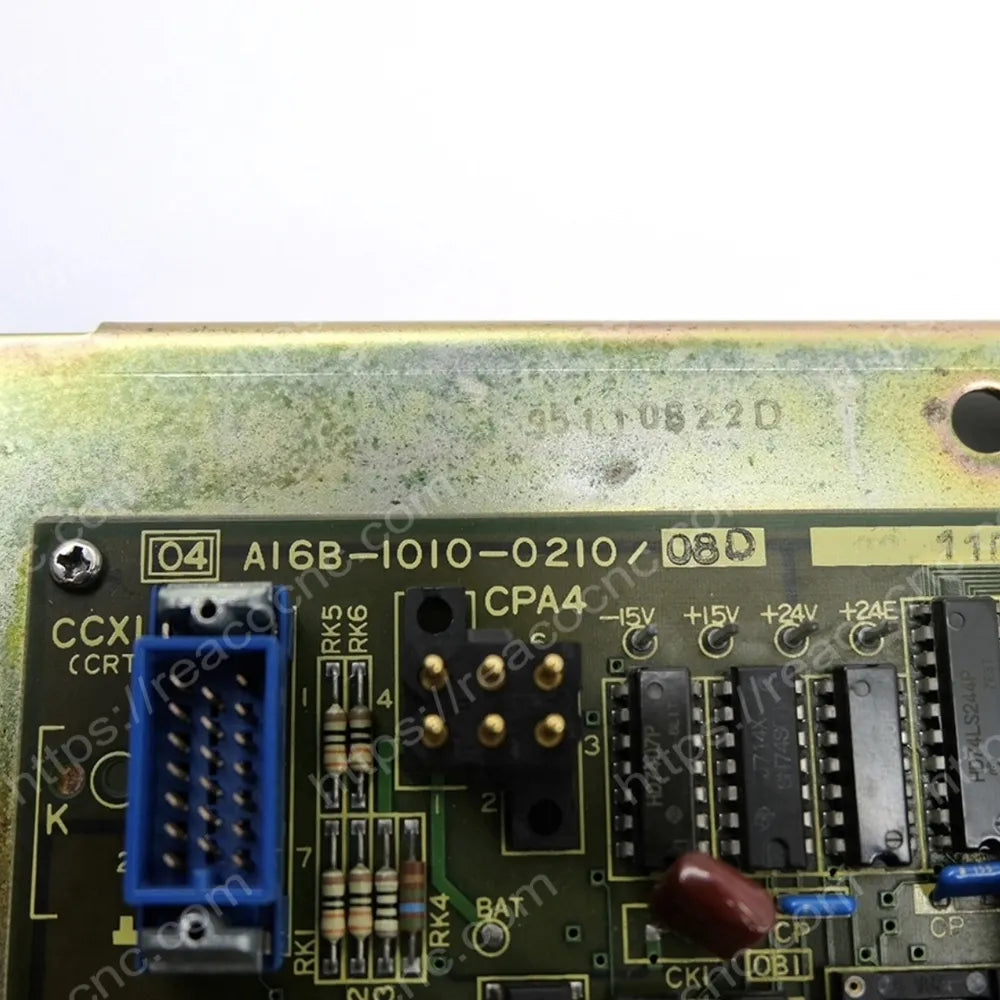

Do not select a replacement by the base number alone. Match the full A16B-1010-0210 number plus the printed revision suffix, software ROM set, memory modules, PMC ladder arrangement, connectors and fitted daughterboards. Related A16B-1010 master boards for Series 0B or 0-Mate are not automatic substitutes.

Backup and Installation Notes

Before removing the original board, back up CNC parameters, programs, offsets, pitch-error data, diagnostics and PMC data where supported. Photograph all option positions and transfer only verified components. Installation and restoration should be performed by qualified CNC personnel with power isolated.
