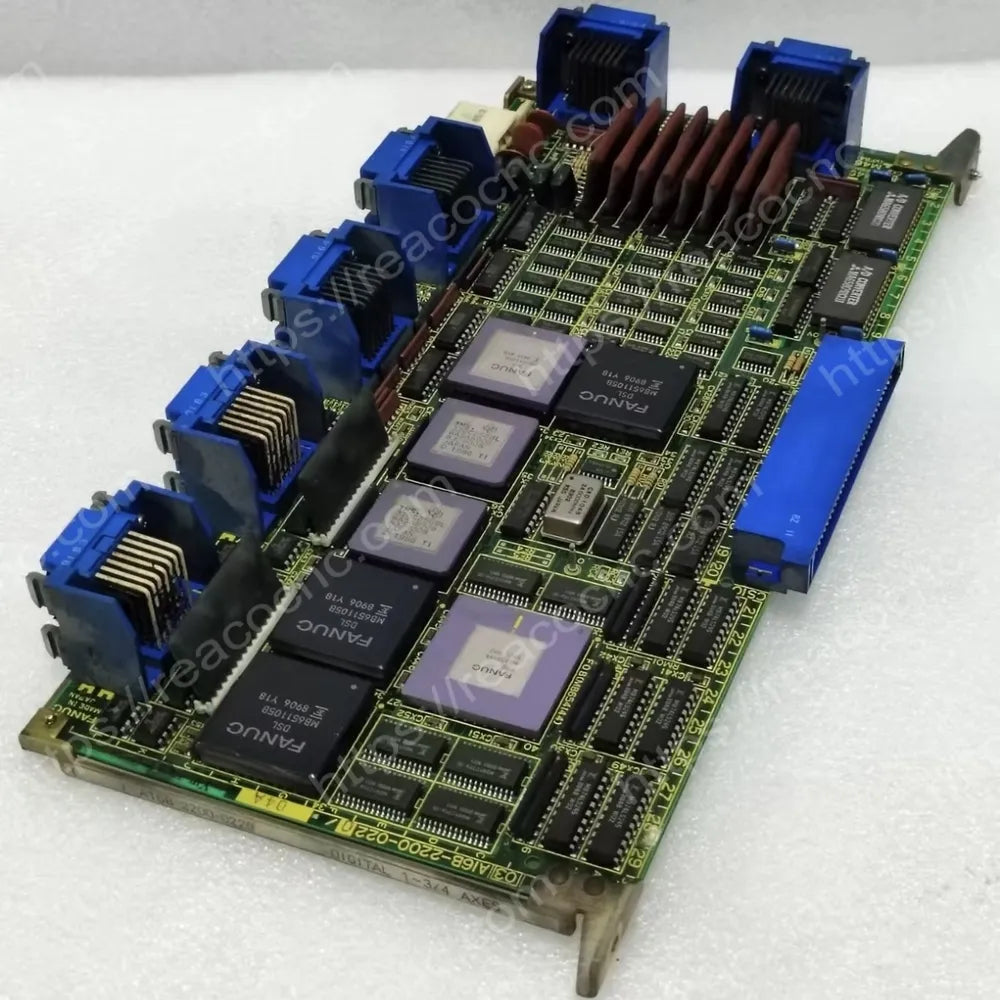

The FANUC A16B-2200-0220 is a discontinued 16-bit digital servo axis-control PCB for FANUC Series 0 Model C CNC systems. It provides three- or four-axis servo-control channels in compatible 0-MC, 0-TC and 0-TTC configurations.
This is an axis daughterboard, not the CNC master CPU board. Documented configurations install it on compatible A20B-1002-0360 or A20B-1003-0750 master boards. The complete servo software, axis count, feedback system and board revision must match the original control.
A16B-2200-0220 Product Information
| Brand | FANUC |
| Model / MPN | A16B-2200-0220 |
| Product Type | Digital servo axis-control PCB |
| CNC Platform | FANUC Series 0 Model C |
| Architecture | 16-bit servo-control board |
| Axis Channels | Three or four axes, configuration dependent |
| Documented Systems | 0-MC, 0-TC and 0-TTC configurations |
| Master-Board Application | A20B-1002-0360 or A20B-1003-0750 configurations |
| Documented Drives | Compatible A06B-6057 and A06B-6058 servo systems |
| Status | Discontinued legacy FANUC product |
| Condition | New old stock, refurbished, or used 90% new; subject to stock |
| Testing | 100% tested before shipping; test video available |
| Handling | Normally 1–3 business days |
| Shipping / ETA | DHL / UPS / FedEx worldwide; typically 3–7 business days |
| Warranty | New/refurbished: 1 year; used 90% new: 3 months |
| Service / Packing | Free technical support and anti-static reinforced packing |
Digital Servo Axis-Control Function
A16B-2200-0220 processes the command and feedback channels for the configured CNC axes and interfaces the Series 0-C control with compatible servo amplifiers and motors. Connector assignments and active channels depend on the machine's axis arrangement and servo parameters.
Related FANUC Axis Boards
A16B-2200-0220 is the 16-bit three/four-axis card. A16B-2200-0221 is the related 16-bit two-axis card, while A16B-2200-0360 is the 32-bit three/four-axis version. These boards are not interchangeable without matching the master board, CNC software and servo configuration.
Replacement and Installation Checks
Confirm the full part number and revision suffix, master-board model, number of controlled axes, servo amplifier family, motor feedback type, connectors and servo parameters. Back up CNC parameters, programs, offsets, pitch-error data and diagnostics before replacement. Installation should be completed by qualified FANUC personnel.
Related resources: FANUC CNC circuit boards and FANUC CNC board repair services.
