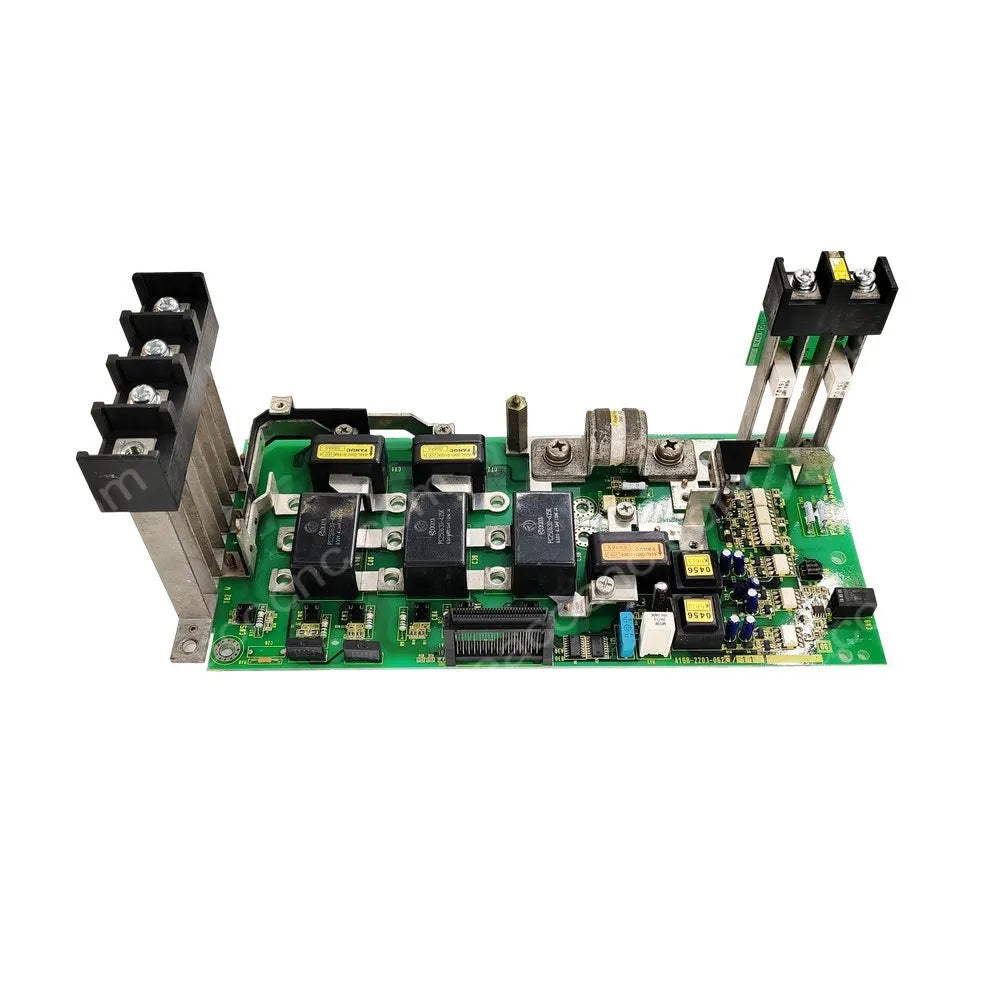

The FANUC A16B-2203-0620 is a power wiring PCB for the 200V-class FANUC αiSP 22 spindle amplifier. FANUC documentation assigns it to A06B-6111-H022 TYPE A and A06B-6112-H022 TYPE B spindle amplifier configurations.

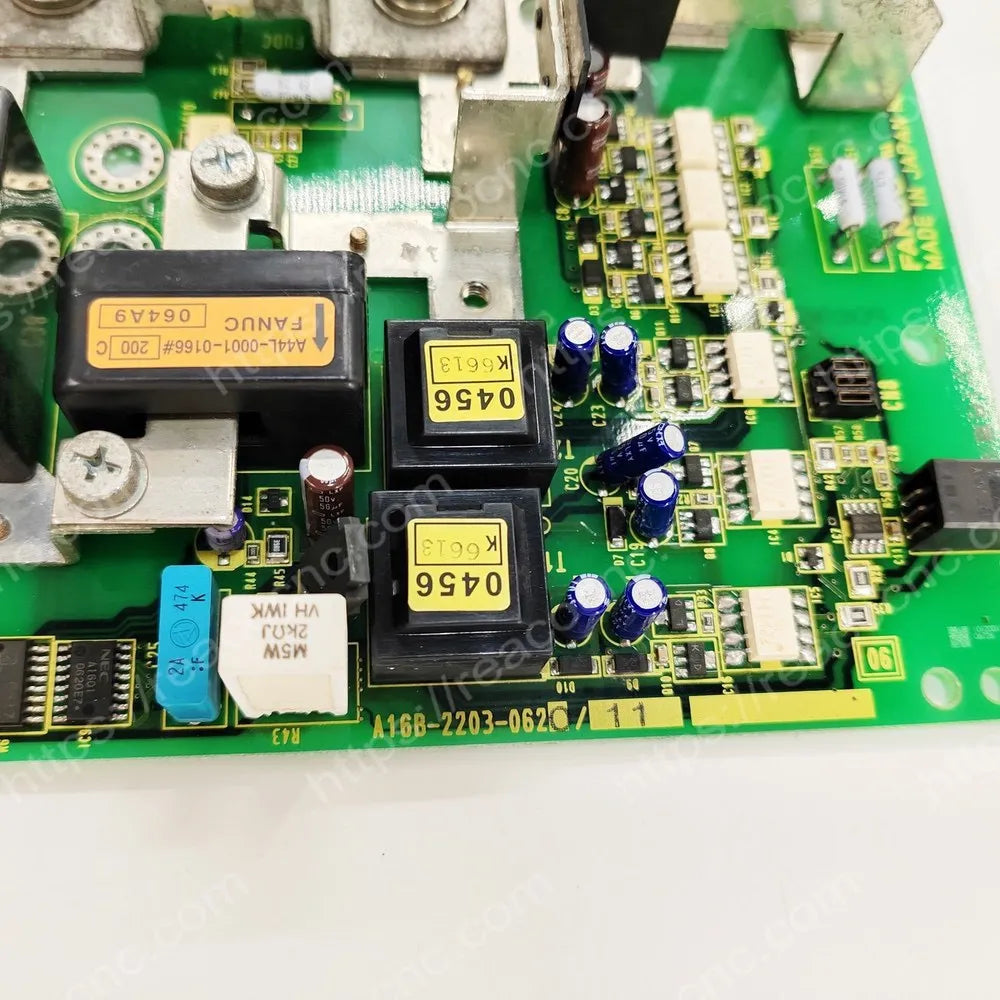

This is an internal replacement board, not a complete spindle drive. Confirm the A16B-2203-0620 label, board revision, host A06B number, connectors and installed components before ordering.
A16B-2203-0620 Product Information
| Brand | FANUC |
| Model / MPN | A16B-2203-0620 |
| Board Type | Spindle amplifier power wiring PCB |
| Host Model | FANUC αiSP 22, 200V class |
| TYPE A Module | A06B-6111-H022; control PCB A20B-2101-0354 |
| TYPE B Module | A06B-6112-H022; control PCB A20B-2101-0355 |
| Earlier Control PCBs | A20B-2100-0800 TYPE A; A20B-2100-0801 TYPE B |
| Unit Specification | A06B-6111-C022 |
| Host Rated Output | 95A |
| Host Control Method | Sine-wave PWM with transistor IGBT bridge |
| Speed Control Range | 1:100 for the complete αiSP module |
| Motor Connection | U/V/W output terminal block; M6 terminals for αiSP 22 |
| Condition | New, refurbished, or used 90% new; subject to stock |
| Testing | 100% tested before shipping; test video available |
| Handling | Normally 1–3 business days |
| Shipping / ETA | DHL, UPS, or FedEx worldwide; typically 3–7 business days |
| Warranty | 1 year for new/refurbished; 3 months for used 90% new |
| Service / Packing | Free technical support; anti-static reinforced packing |
αiSP 22 Power-Stage Function
Inside the spindle amplifier, the A16B-2203-0620 carries power-stage connections between the shared DC link and spindle motor output. The complete αiSP 22 uses sine-wave PWM control to regulate spindle speed and torque. The 95A rating and operating specifications describe the host amplifier, not the bare PCB.
TYPE A, TYPE B and Generation Checks
The same board is documented in A06B-6111-H022 TYPE A and A06B-6112-H022 TYPE B, while their control PCBs differ. Confirm the complete module suffix, board revision, control PCB and sensor configuration. Do not substitute A16B-2203-0870, which FANUC assigns to later A06B-6141/6142-H022 αiSP 22 modules.
Testing and Installation Notes

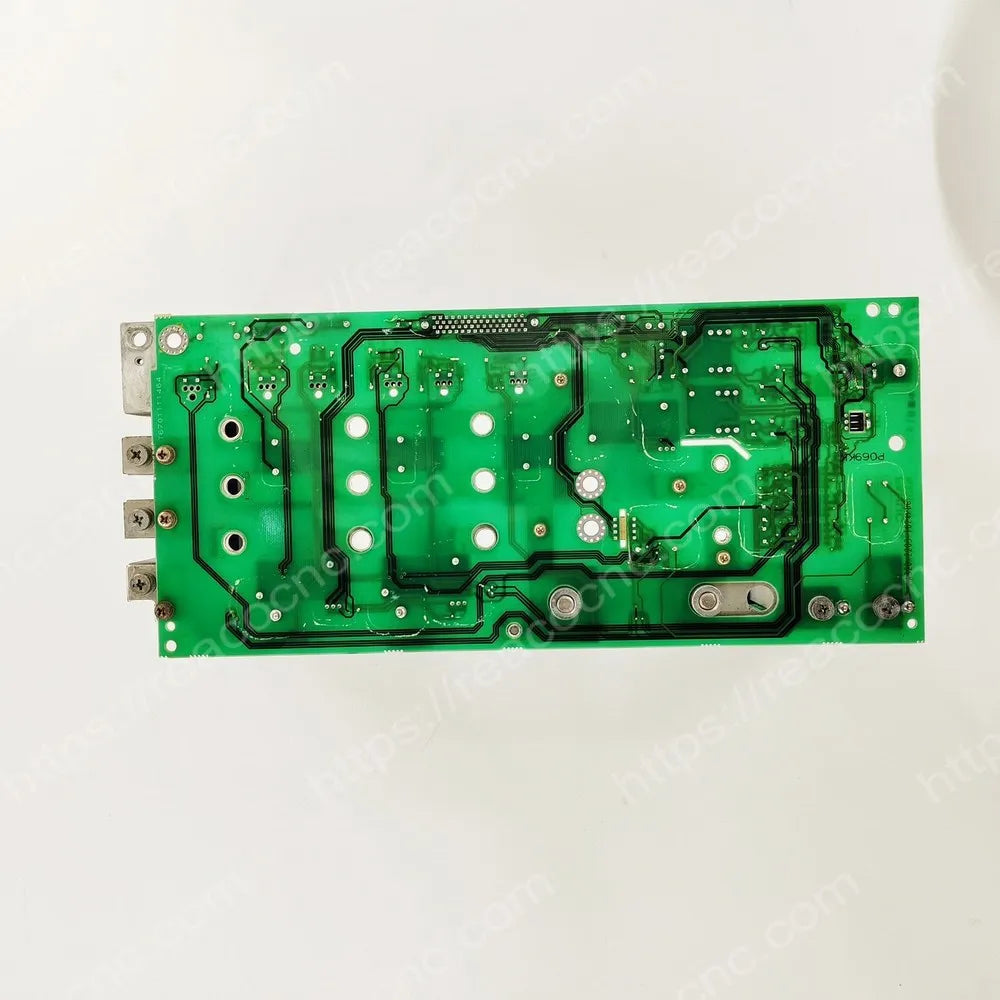

REACO CNC checks the label, revision, capacitors, power devices, terminals, connectors, solder condition and spindle operation as applicable. Qualified personnel should isolate power and wait for the DC link to discharge before removing the board.
Related resources: FANUC PCBs, FANUC CNC controls and FANUC spindle drive repair services.
