Name: FANUC A16B-2203-0640 αiPS 5.5 Power Supply Wiring PCB
Brand: FANUC
Price: 413.0 USD
Availability: InStock

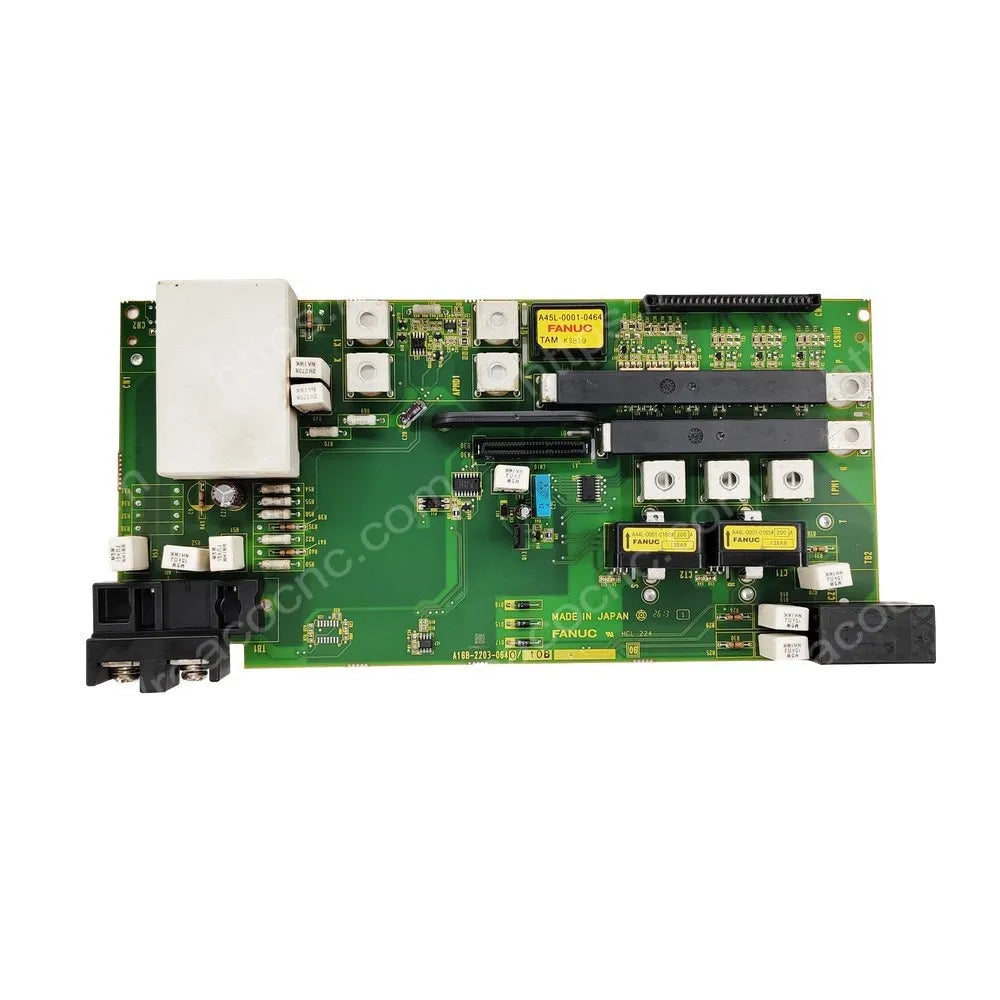

FANUC A16B-2203-0640 alpha iPS 5.5 power supply wiring PCB main view

FANUC A16B-2203-0640 αiPS 5.5 Power Supply Wiring PCB

In stock

• Testing Video Provided

$413.00 USD

Shipping:

Delivery: Estimated 2- 6 business days delivery. See details

Returns: 14 days returns. See details

All parts are covered by REACO CNC warranty

All parts tested under load

Fast response, global shipping, expedited shipping available

Free technical support

More than 100,000 parts in stock & ready for delivery

The FANUC A16B-2203-0640 is an internal power supply wiring PCB for FANUC αiPS 5.5 modules. FANUC documentation assigns it to the 200V-class A06B-6110-H006 and A06B-6140-H006 configurations.

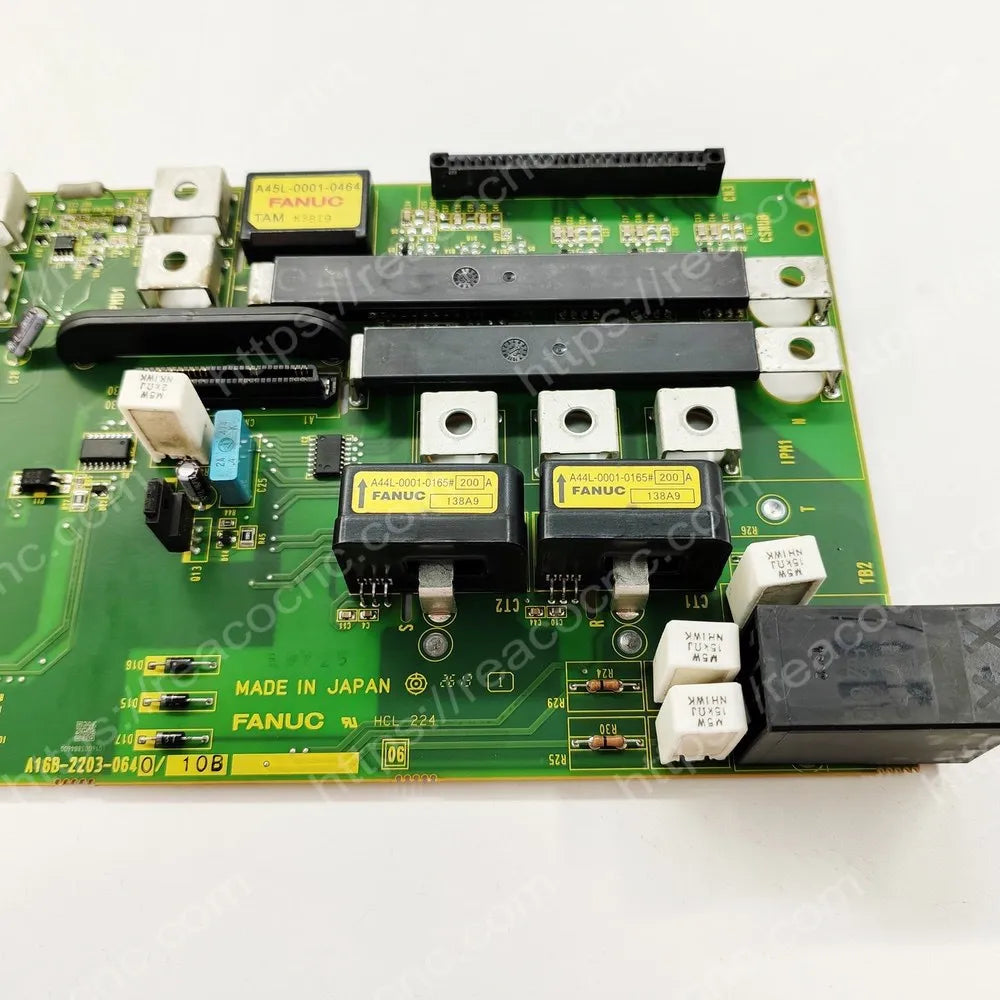

This board is not a complete power supply. Confirm the PCB number, revision, A06B nameplate, connectors and installed components before ordering.

A16B-2203-0640 Product Specifications

Brand	FANUC
Model / MPN	A16B-2203-0640
Board Type	Power supply module wiring PCB
Power Supply Model	FANUC αiPS 5.5
Compatible Modules	A06B-6110-H006 and A06B-6140-H006
Unit Specifications	A06B-6110-C006 and A06B-6140-C006
Main Input	Three-phase 200–240VAC, 50/60Hz
Control Power	Single-phase 200–240VAC, 50/60Hz
Power Equipment Capacity	Main circuit 9kVA; control power 0.7kVA
Module Rated Output	6.8kW
Motor-Selection Rating	5.5kW
Maximum / Peak Output	A06B-6110: 11kW / 20kW; A06B-6140: 13kW / 22kW
Regeneration Method	Power-source regenerative control
Associated Control PCBs	A20B-2100-0391 for A06B-6110; A20B-2100-0390 for A06B-6140
Condition	New, refurbished, or used 90% new; subject to stock
Testing	100% tested before shipping; test video available
Handling	Normally 1–3 business days
Shipping / ETA	DHL, UPS, or FedEx worldwide; typically 3–7 business days
Warranty	1 year for new/refurbished; 3 months for used 90% new
Service / Packing	Free technical support; anti-static reinforced packing

αiPS 5.5 Power and Regeneration Function

Inside the complete αiPS 5.5 module, A16B-2203-0640 forms the wiring section of the power conversion assembly. The module supplies the common DC link for connected FANUC αi servo and spindle amplifiers and returns regenerative energy to the incoming power source during deceleration.

Compatible Module Variants

The board is documented in A06B-6110-H006 and A06B-6140-H006, but their control PCB specifications differ. Do not substitute A16B-2203-0641 for αiPS 11 or A16B-2203-0642 for αiPS 15. Match the complete module and board revisions.

Testing and Installation

REACO CNC checks the label, PCB condition, terminals, connectors, capacitors, power components, insulation and compatible operation where available. Isolate power and confirm the DC-link charge indicator is off before service. Installation should be completed by qualified CNC personnel.
