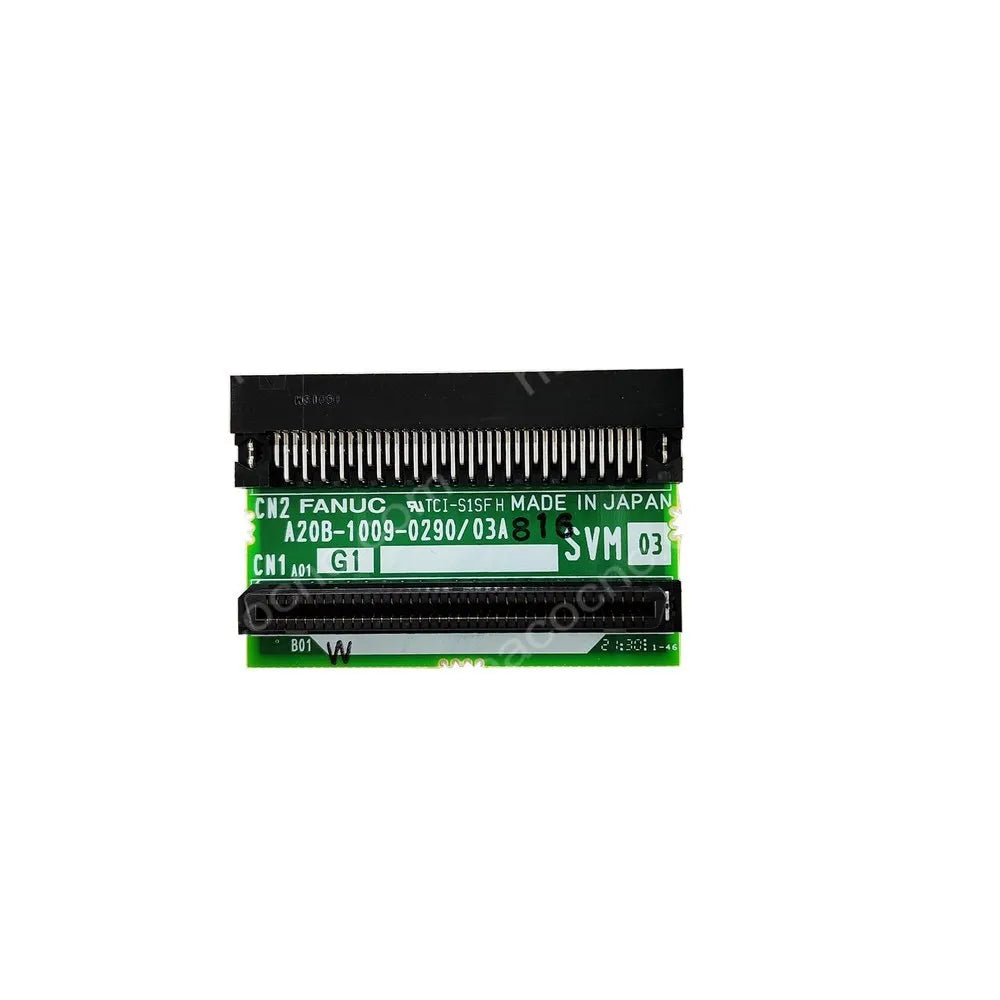

FANUC A20B-1009-0290 is an internal servo drive connection and interface PCB used in compatible FANUC CNC drive hardware. It provides board-to-board and cable connection paths between sections of the host unit.

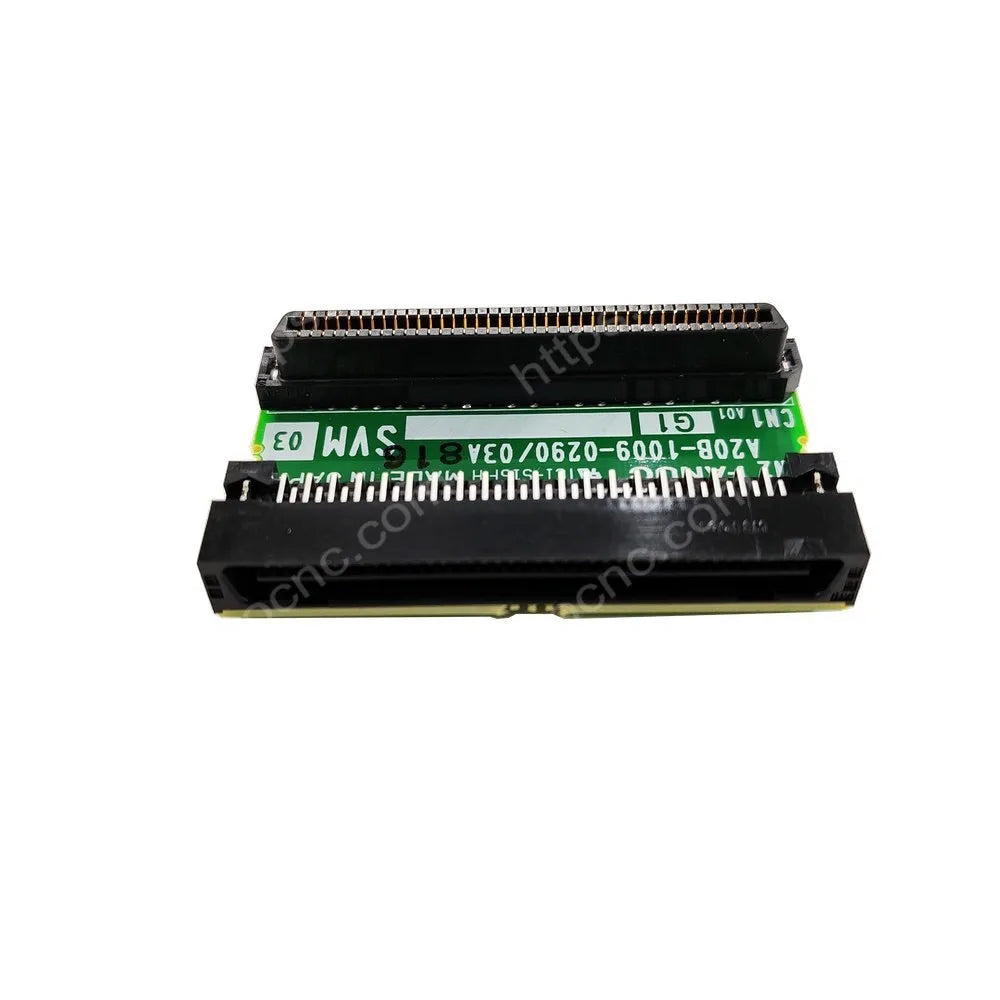

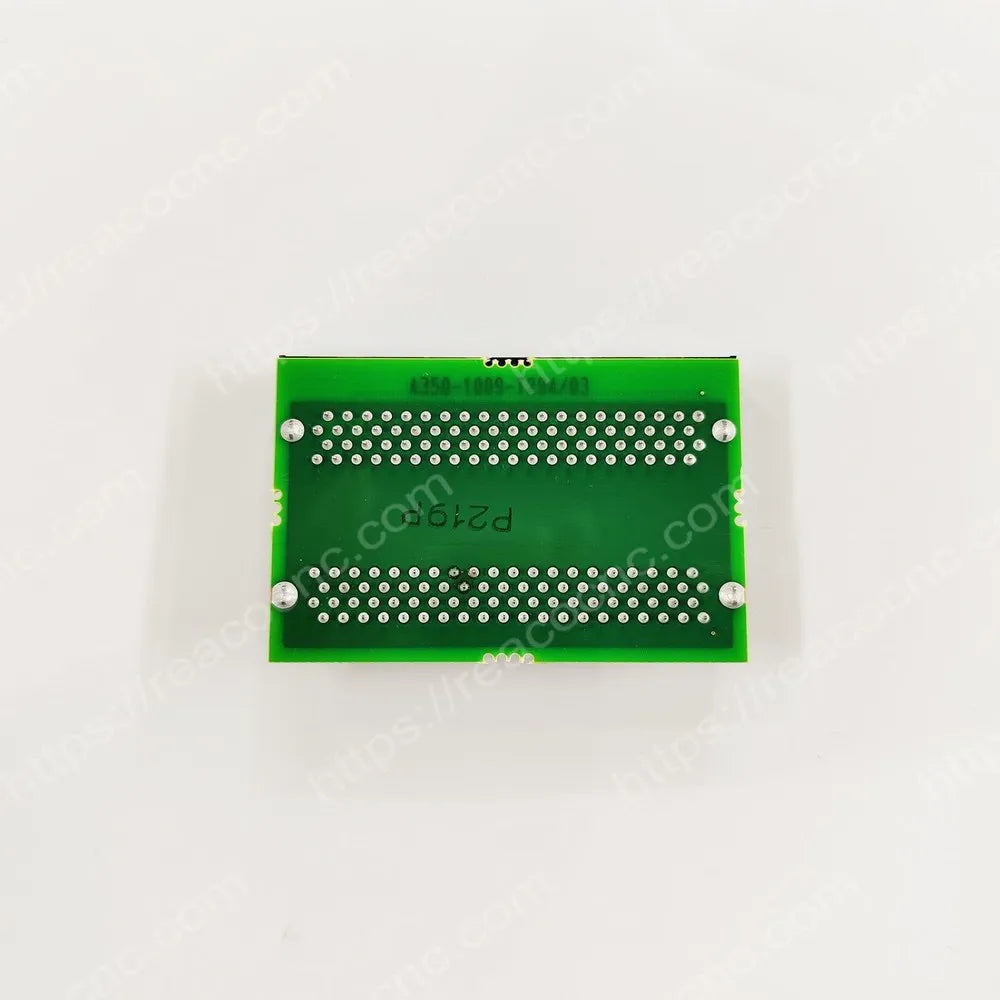

This listing covers the A20B-1009-0290 circuit board only, not a complete servo amplifier, control CPU or power module. Common examples are marked A20B-1009-0290/03A and may also carry the drawing number A350-1009-T294/03. Confirm all markings on the original board before ordering.

A20B-1009-0290 Product Information

Servo Drive Connection Function

The A20B-1009-0290 provides physical and electrical interface paths for internal drive assemblies. Its connectors route the required connections between the board, cables and other sections of the host servo hardware. The exact connected circuits depend on the complete amplifier configuration.

Revision and Compatibility Checks

Match A20B-1009-0290 exactly and compare the revision suffix, A350 drawing number, connector type, connector orientation, mounting points and component layout. Other A20B-1009 boards may look similar but should not be treated as direct replacements. Send photos of the original PCB and the host A06B nameplate if compatibility needs confirmation.

Testing and Installation Notes

REACO CNC checks the board number, PCB condition, connectors, solder joints and applicable interface functions before shipment. Qualified personnel should isolate incoming power, wait for the DC bus to discharge and use ESD protection. Inspect connected cables and mating boards before installation to avoid damage to the replacement PCB.
