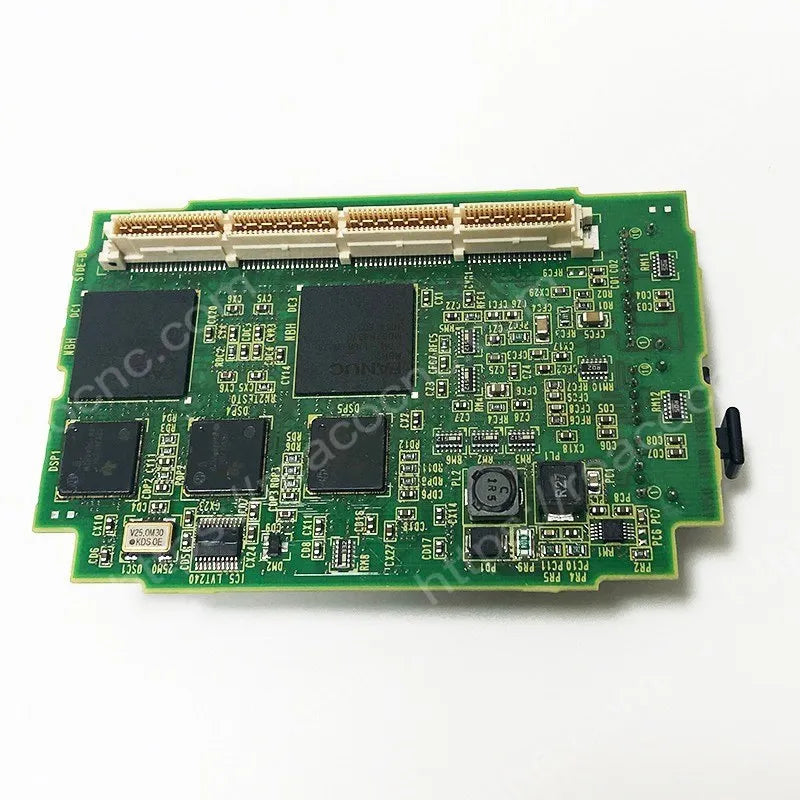

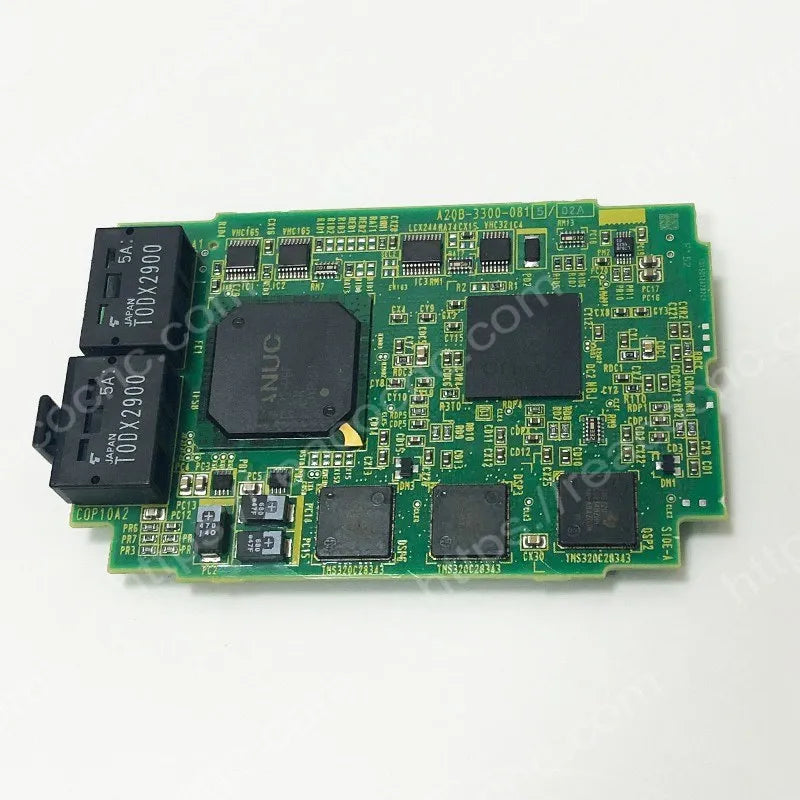

The FANUC A20B-3300-0815 is a 36-axis servo control card for compatible FANUC R-30iB Plus and R-30iB Mate Plus robot controllers. Installed horizontally on the controller main board, it supports servo-motion control for the robot and configured auxiliary axes.
FANUC documentation associates this PCB with ordering specification A05B-2670-H044. A20B-3300-0815 is a low-level control card, not a motor-power servo amplifier. The connected servo amplifier modules remain responsible for supplying power to the robot motors.
A20B-3300-0815 Product Information
| Brand | FANUC |
| Model / MPN | A20B-3300-0815 |
| Product Name | 36-axis servo control card |
| FANUC Ordering Specification | A05B-2670-H044 |
| Controller Family | R-30iB Plus / R-30iB Mate Plus configurations |
| Axis Capacity | 36-axis card specification |
| Installation | Horizontal plug-in card on a compatible controller main PCB |
| Application | Robot and configured auxiliary servo-axis control |
| Board Type | Servo control PCB; not a power amplifier |
| Condition | Brand new, refurbished, or used 90% new; subject to stock |
| Testing | 100% tested before shipping; test video available |
| Handling | Normally 1–3 business days |
| Shipping / ETA | DHL / UPS / FedEx worldwide; typically 3–7 business days |
| Warranty | New/refurbished: 1 year; used 90% new: 3 months |
| Service / Packing | Free technical support and reinforced anti-static packing |
36-Axis Servo-Control Function
The A20B-3300-0815 provides the controller-side hardware required to process servo commands and coordinate the configured robot and auxiliary axes. Actual usable axis capacity depends on the robot software, installed options, controller configuration, servo amplifiers and machine application; installing the card alone does not automatically activate 36 axes.
Related R-30iB Plus Servo Cards
A20B-3300-0815 is the 36-axis version. Related cards include A20B-3300-0819 for six axes, A20B-3300-0818 for twelve axes, A20B-3300-0817 for eighteen axes and A20B-3300-0816 for twenty-four axes. These cards should not be selected only by appearance because their supported axis capacities differ.
Replacement and Configuration Checks

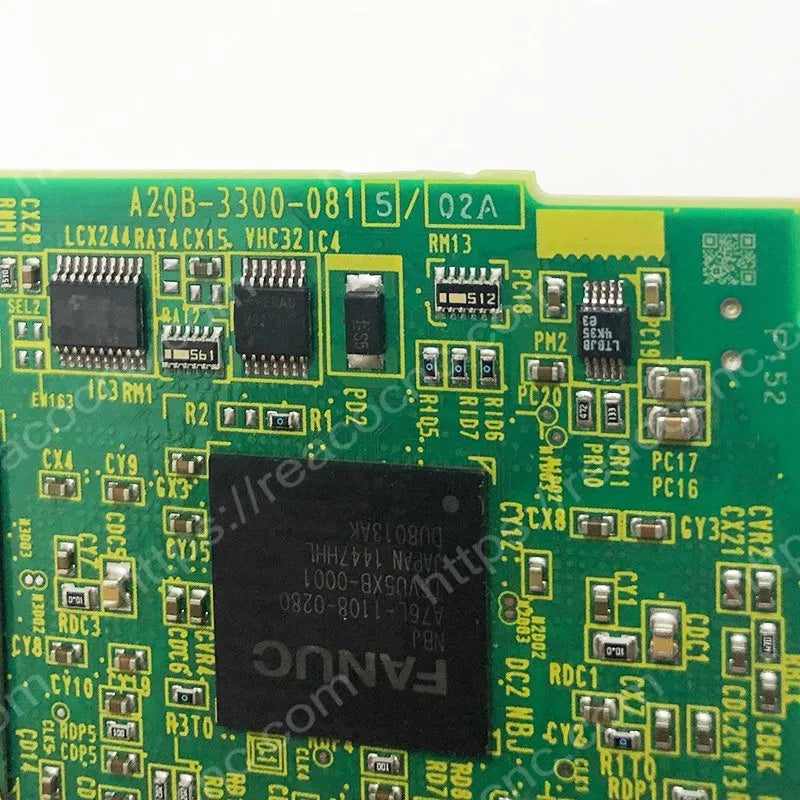

Confirm the complete A20B-3300-0815 PCB number, A05B-2670-H044 ordering specification, controller type, main-board model, robot software, total axis count and auxiliary-axis options. Back up the controller image, robot programs, mastering data, frames, variables and system files before replacement. Card installation and software restoration should be performed by qualified FANUC robot personnel.
Related resources: FANUC robot and CNC circuit boards and FANUC robot board repair services.
