FANUC A90L-0001-0575#A is a single 24VDC radiator cooling fan for selected FANUC Alpha-i and Alpha-iB power supply, spindle and servo amplifier modules. It moves air across the heat sink to control power-stage temperature.

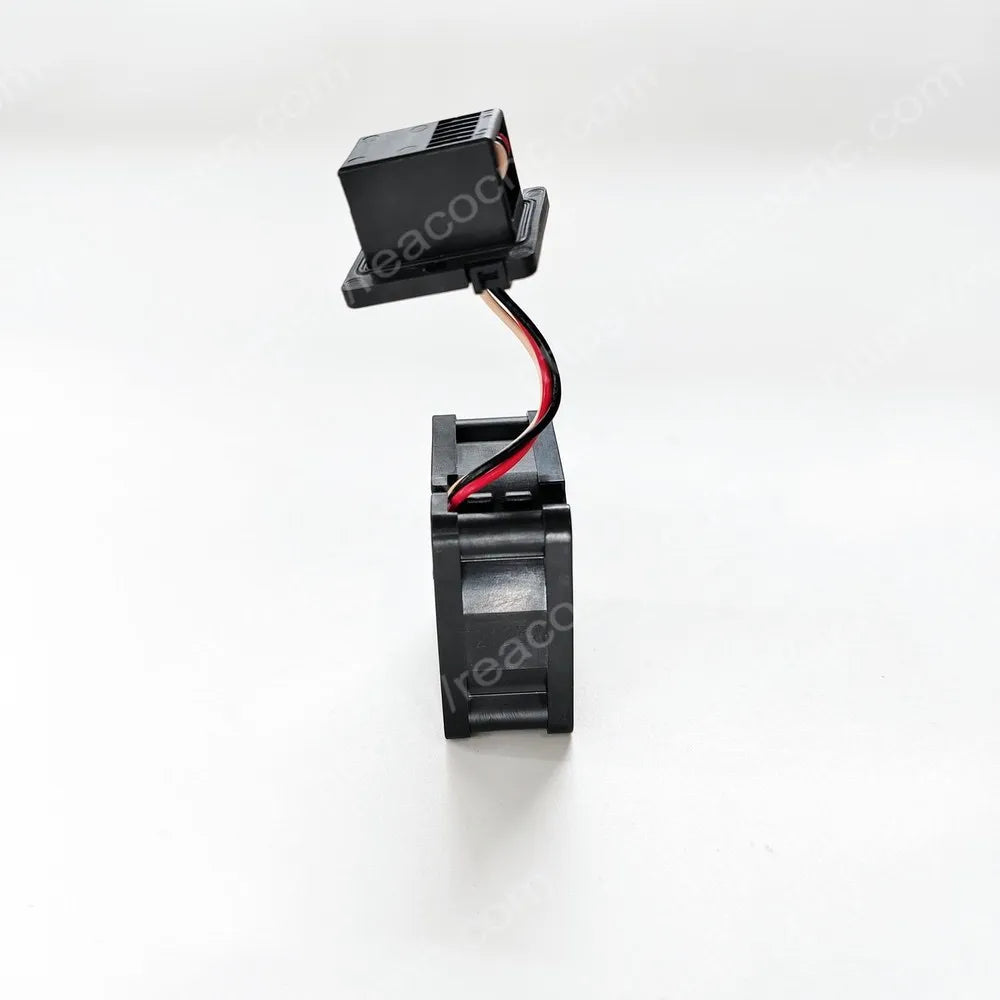

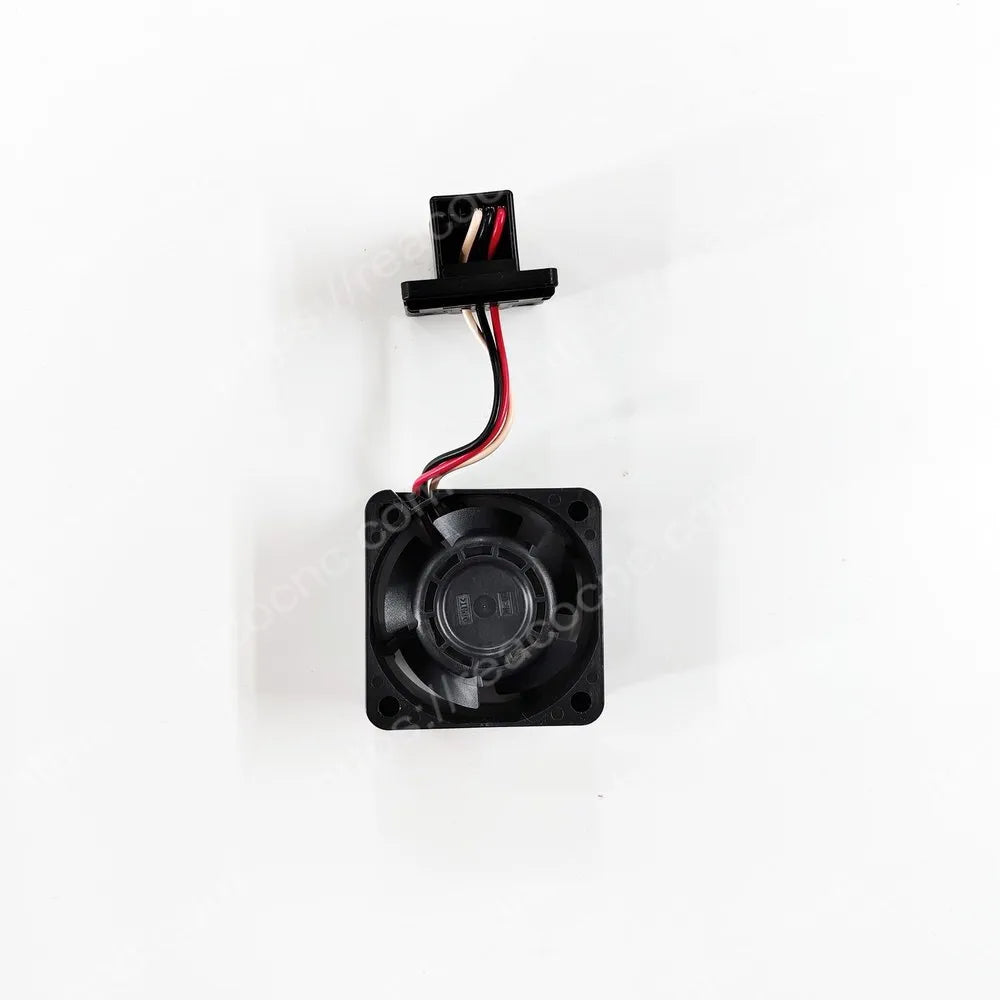

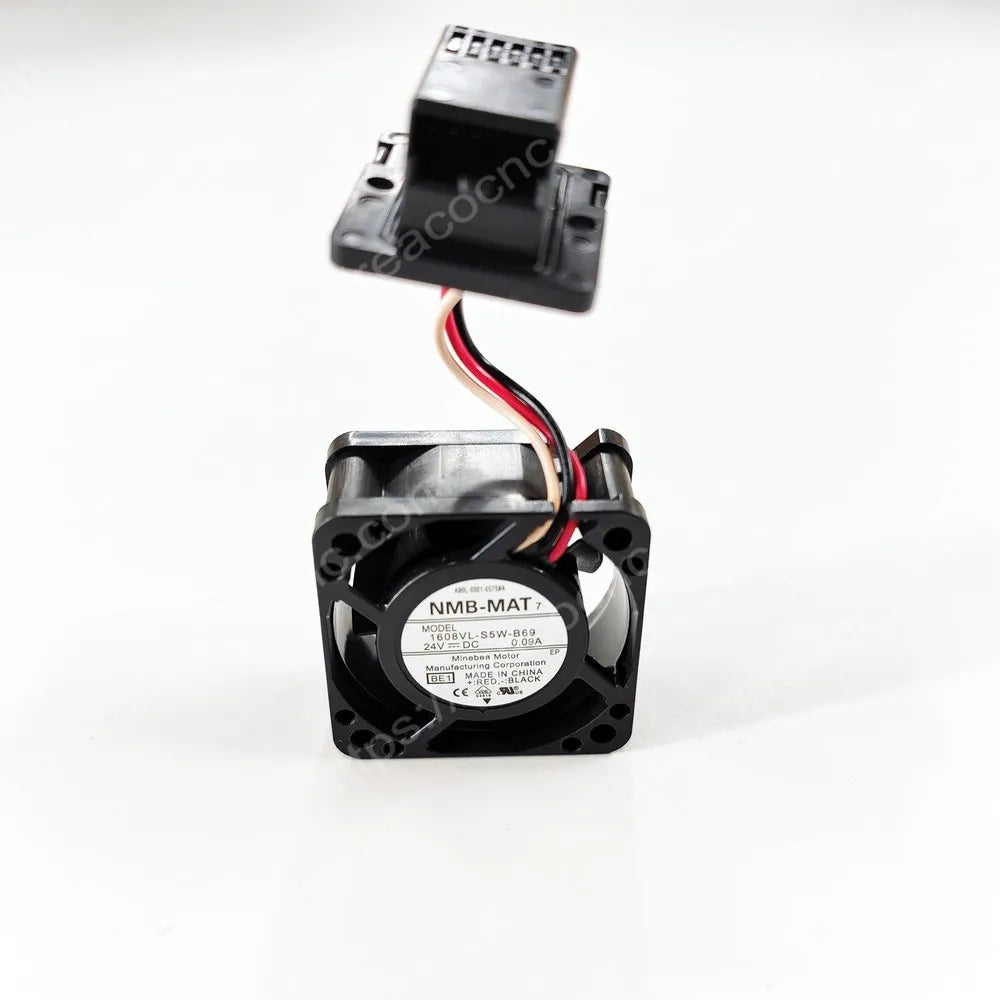

Common manufacturer labels include Sanyo Denki 9WF0424H6503 and NMB-MAT 1608VL-S5W-B69. The fan is approximately 40 × 40 × 20mm and uses a three-wire connector. Retain the complete #A suffix when ordering.
A90L-0001-0575#A Product Information
| Brand | FANUC |
| Model / MPN | A90L-0001-0575#A |
| Product Type | Single radiator / external cooling fan |
| Manufacturer Models | 9WF0424H6503 or 1608VL-S5W-B69 |
| Rated Voltage | 24VDC |
| Rated Current | Approximately 0.09A; confirm the label |
| Dimensions | Approximately 40 × 40 × 20mm |
| Connection | Three-wire lead with plug connector |
| Fan Unit | A06B-6200-C601, fan motor with mounting cover |
| Applications | Selected Alpha-i / Alpha-iB PSM, SPM and SVM modules |
| Condition | New, refurbished, or used 90% new; subject to stock |
| Testing | 100% tested before shipping; test video available |
| Handling | Normally 1–2 business days |
| Shipping / ETA | DHL, UPS, or FedEx worldwide; typically 3–7 business days |
| Warranty | 1 year for new/refurbished; 3 months for used 90% new |
| Service / Packing | Free technical support; anti-static reinforced packing |
Alpha-i Radiator Cooling Applications
FANUC documentation lists A90L-0001-0575#A for selected Alpha-i power supply, spindle and servo amplifier modules. Documented examples include αiPS 7.5, αiSP 5.5 and applicable multi-axis αiSV configurations. Compatibility depends on the complete A06B amplifier model.
A90L-0001-0575#A and #B
The #A version normally identifies a single fan. A90L-0001-0575#B is used in configurations requiring two fans and a different combined connector arrangement. The suffix must remain on the title, quotation and purchase order.
Compatibility and Installation Checks
Compare the full FANUC number, manufacturer label, voltage, current, thickness, wire count, connector, pin order, lead length, mounting cover and airflow direction. Do not substitute internal fan A90L-0001-0580 or another 0575 suffix because the frame looks similar.
Testing and Installation Notes
REACO CNC checks the label, connector, wiring, bearing noise, rotation, airflow and monitoring signal where applicable. Isolate power and allow the DC bus to discharge before replacement. Install the fan in the specified direction and keep its cable clear of the blades.
Related resources: FANUC drives and cooling parts and FANUC CNC drive repair services.
