Mitsubishi FCU7-KB025 / FCU7-DX711 Keyboard & I/O Unit
$529.00 USD
Shipping:
Delivery: Estimated 2- 6 business days delivery. See details
Returns: 14 days returns. See details
Mitsubishi FCU7-KB025 / FCU7-DX711 Keyboard & I/O Unit
| Brand | Mitsubishi Electric |
| Primary Model / MPN | FCU7-KB025 |
| Included I/O Unit | FCU7-DX711 |
| Product Type | CNC keyboard and rear-mounted operation panel I/O unit set |
| Keyboard Application | Keyboard for 8.4-inch display unit; lathe-system sheet keys |
| Keyboard Layout | ONG layout for Mitsubishi L system, XZF configuration |
| Related Key Sheet | N330B532G52 |
| Documented CNC Families | Mitsubishi E70 / M70V / M700V |
| Digital Input | 64 points; both 24V common and 0V common connections are supported |
| Digital Output | 64 non-isolated source-type output points; 24VDC, maximum 60mA per point |
| Manual Pulse Generator | 2 channels; supports compatible 5V and 12V manual pulse generators |
| Remote I/O Expansion | RIO3 interface; up to 4 extension stations and 128 input / 128 output points |
| Occupied Stations | Fixed stations 1, 2, 7 and 8 |
| Main Interfaces | CG31 / CG33 inputs, CG32 / CG34 outputs, NCKB, MPG, RIO3, CG71 and FG |
| Documented Outline | FCU7-KB025: 140 × 200mm; FCU7-DX711: 116 × 179mm |
| Search References | FCU7-KB025 / FCU7-DX711 / FCU7-KB025/DX711 / FCU7KB025 / FCU7DX711 / Mitsubishi lathe keyboard / CNC operation panel I/O |
| Condition | New / Refurbished / Used options subject to current inventory |
| Handling Time | Within 1–2 working days for stocked units |
| Shipping | DHL / UPS / FedEx |
| Estimated Delivery Time (via DHL) |
Asia: 1–3 business days Europe: 2–4 business days North America: 2–4 business days South America: 3–6 business days Middle East & Africa: 3–6 business days Oceania: 2–5 business days |
| Warranty |
New / Refurbished: 1 year Used (90% new): 3 months |
| Compatibility Check | Match both model labels, 8.4-inch display arrangement, XZF key layout, source-output type, I/O capacity, connectors and mounting pattern |
| Scope of Supply | FCU7-KB025 keyboard assembly with FCU7-DX711 I/O unit; display, control unit, handwheels, external I/O modules and cables are excluded unless shown or quoted |

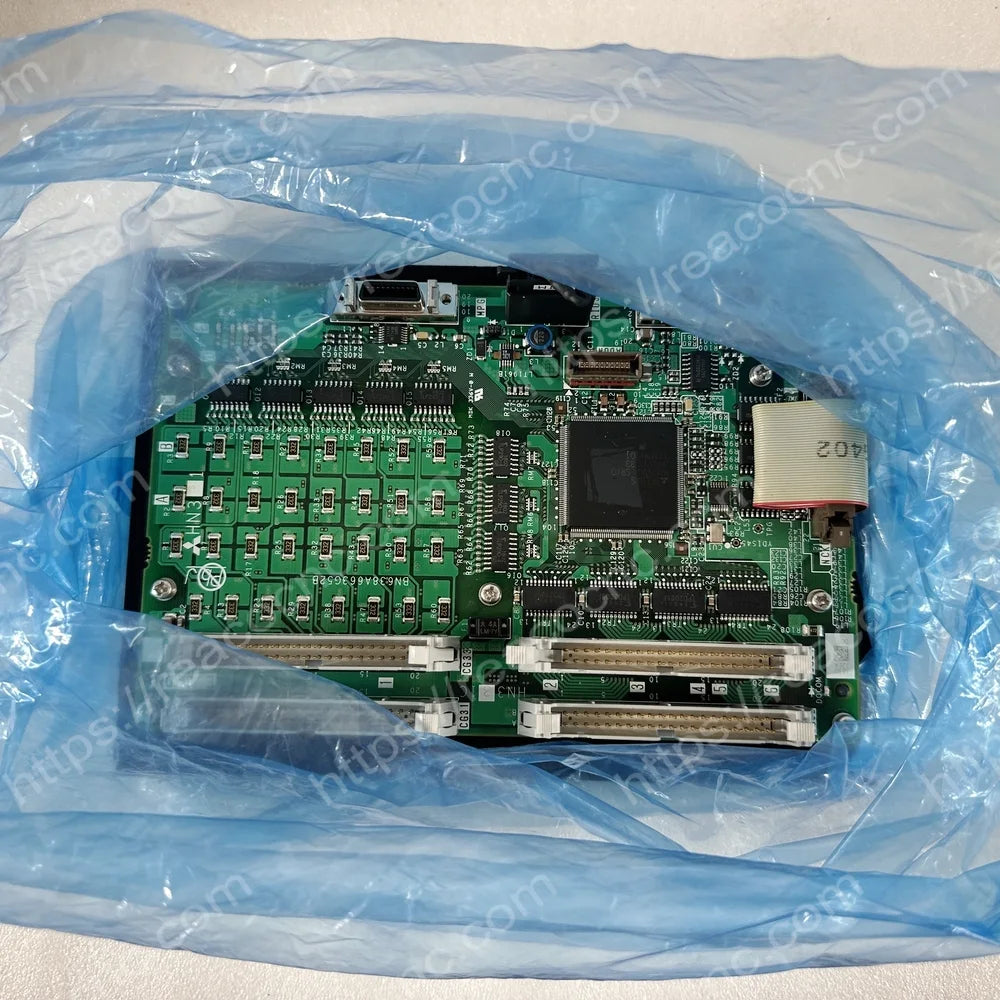

| Service and Packing | Functional testing, test video, protective film and reinforced carton before delivery |

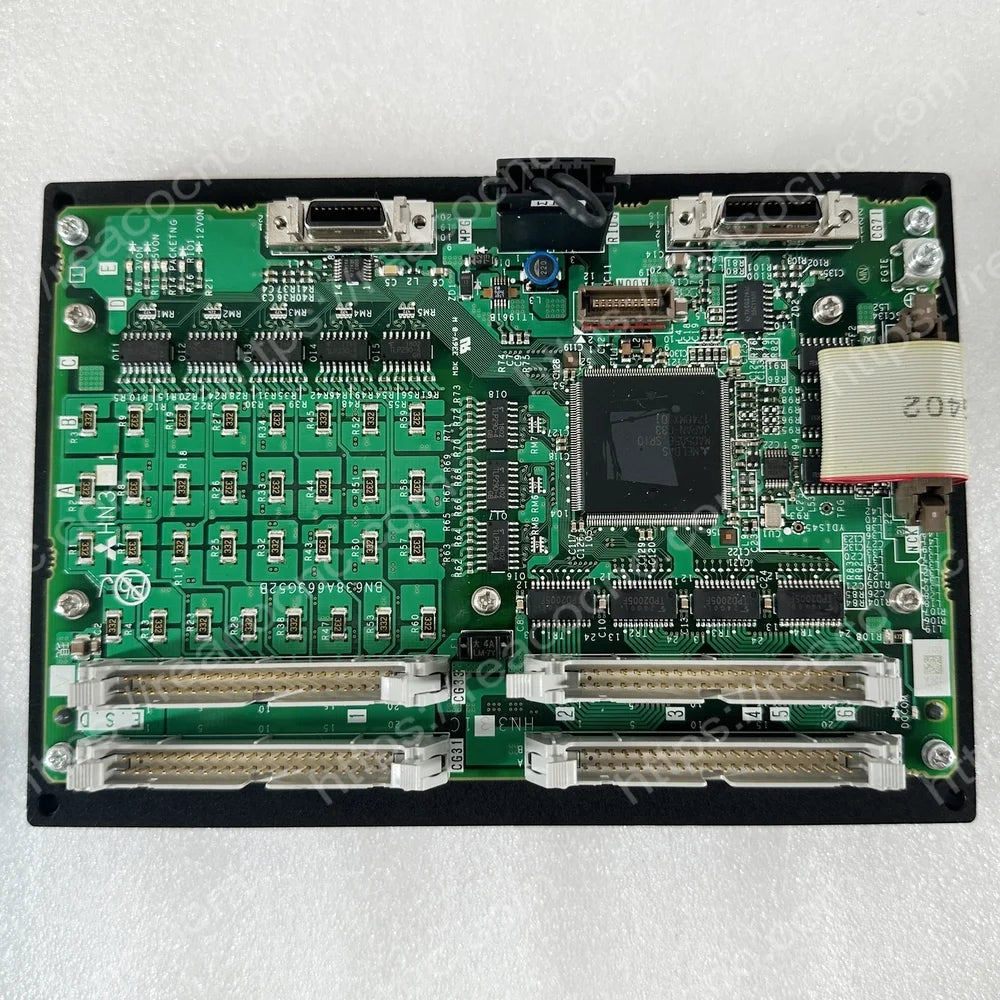

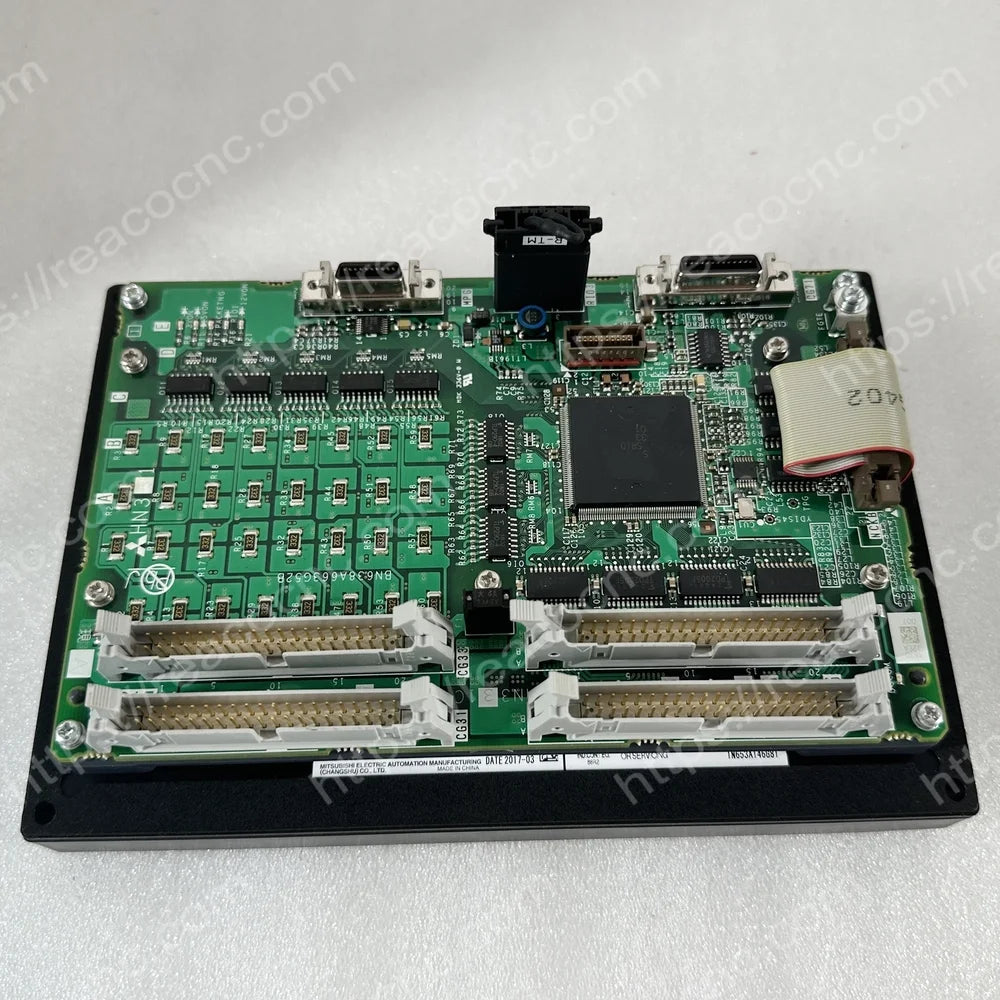

Two Mitsubishi Models in One Operator-Panel Assembly
FCU7-KB025 is the primary keyboard model, while FCU7-DX711 identifies the operation panel I/O unit mounted behind it. FCU7-KB025/DX711 is a combined sales reference rather than one Mitsubishi MPN, so both original labels should remain visible in the product information.

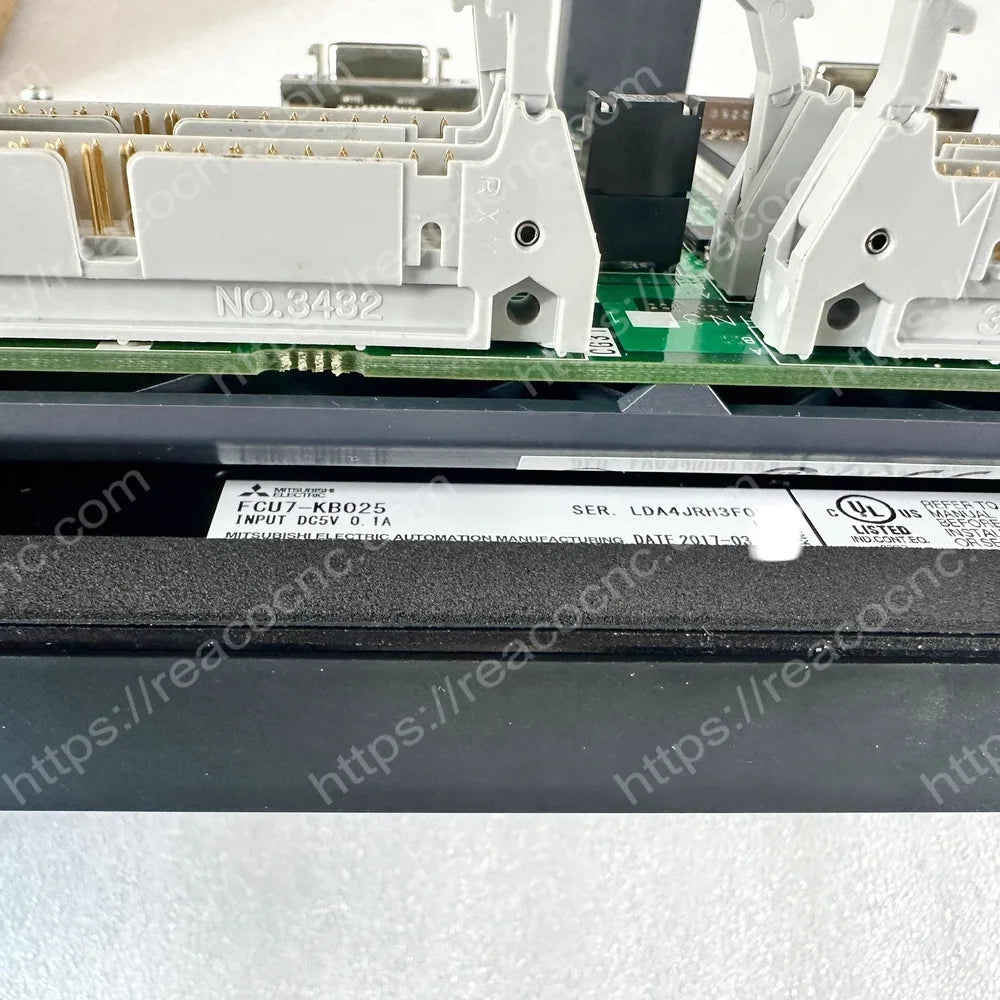

FCU7-KB025 Lathe-System Keyboard
FCU7-KB025 is an 8.4-inch display keyboard with lathe-system sheet keys and an ONG layout documented for the Mitsubishi L system in the XZF configuration. The related replacement key sheet is N330B532G52.
It differs from the standard XYZ-layout FCU7-KB024 / FCU7-DX711 keyboard and I/O set. Keyboard legends and machine application should be checked before replacement.

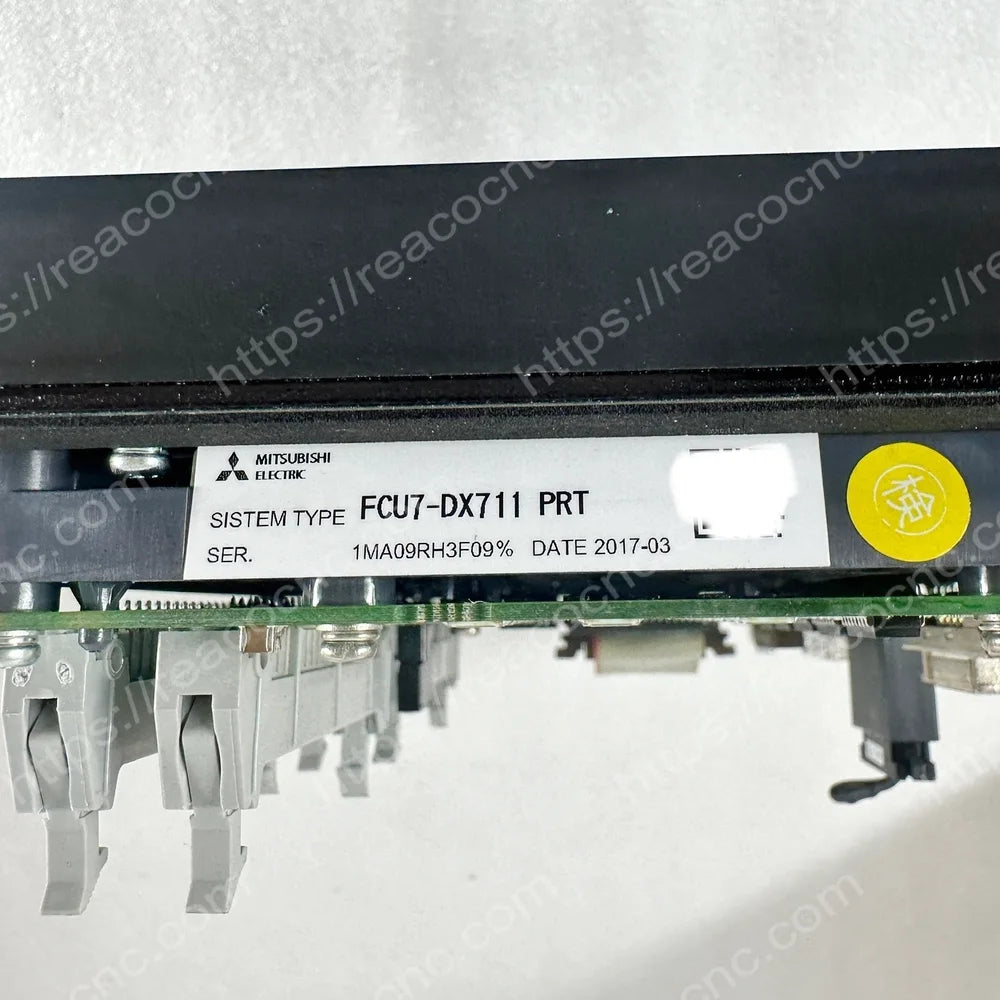

FCU7-DX711 64DI/64DO Source-Output Unit
FCU7-DX711 provides 64 digital inputs, 64 source-type digital outputs and two manual pulse generator channels. The input circuits allow either 24V-common or 0V-common wiring. The outputs are rated for 24VDC with a maximum current of 60mA per point.
DX711 must not be confused with the sink-output FCU7-DX710 or the FCU7-DX621 configuration, which provides only 48 source outputs and includes one analog-output channel.
Compatibility Checks Before Replacement
Confirm the complete FCU7-KB025 and FCU7-DX711 labels, keyboard legends, CNC series, display size, connector layout, I/O wiring type, rear mounting pattern and required cables. The display and CNC control unit are separate components and are not included unless shown in the product photos.
Mitsubishi CNC Keyboard and I/O Support
Browse related Mitsubishi CNC control systems and Mitsubishi CNC PCBs and I/O boards. REACO CNC also provides professional Mitsubishi CNC parts repair.
