Mitsubishi FCUA-DX111 64DI/48DO Remote I/O Unit
$413.00 USD
Shipping:
Delivery: Estimated 2- 6 business days delivery. See details
Returns: 14 days returns. See details
Mitsubishi FCUA-DX111 64DI/48DO Remote I/O Unit
| Brand | Mitsubishi Electric |
| Model | FCUA-DX111 (also searched as FCUADX111) |
| Manufacturer Status | Discontinued |
| Condition | New old stock / Refurbished / Used options subject to current inventory |
| Handling Time | Within 1–2 working days for stocked units |
| Shipping | DHL / UPS / FedEx |
| Estimated Delivery Time (via DHL) |
Asia: 1–3 business days Europe: 2–4 business days North America: 2–4 business days South America: 3–6 business days Middle East & Africa: 3–6 business days Oceania: 2–5 business days |
| Warranty |
New old stock / Refurbished: 1 year Used (90% new): 3 months |
| Category | CNC Remote I/O Unit |
| Parameter Description |
DI: 64 points, 24V/0V common, sink/source input, photocoupler isolated DO: 48 points, source-type output, non-isolated Remote I/O: 2 occupied stations |
| Power Specification |
Input power: 24VDC ±5% Required power capacity: 1.5A Maximum heating value: 30W |
| Hardware Configuration | RX312 + RX322-1 |
| Service | Functional testing and test video before delivery |
| Packing | Protective carton packaging |
Discontinued Source-Output Remote I/O Unit
Mitsubishi FCUA-DX111, also identified in searches as FCUADX111, is a discontinued remote I/O unit for machine digital signals in supported Mitsubishi CNC configurations. Its source-output circuit is a key replacement characteristic and should be checked together with the complete model number.
Verified 64DI/48DO Hardware Configuration
Mitsubishi documentation identifies the FCUA-DX111 hardware as RX312 + RX322-1. It provides 64 photocoupler-isolated digital inputs supporting 24V/0V common selection, 48 non-isolated source-type digital outputs and two occupied remote I/O stations.
Understanding the 1.5A and 30W Ratings
The documented input power requirement is 24VDC ±5%, with a required power capacity of 1.5A for the control circuit. The listed 30W value is the maximum heating value, which varies according to the number of active machine-input points and the load connected to the machine outputs.
Why FCUA-DX111 Is Not the Same as FCUA-DX110
Both models provide 64 inputs and 48 outputs, but their output circuits differ. FCUA-DX111 uses source-type outputs and RX312 + RX322-1 hardware, whereas the Mitsubishi FCUA-DX110 remote I/O unit uses sink-type outputs and RX311 + RX321-1 hardware. Matching only the I/O count can therefore result in the wrong replacement.
Replacement Checks for Existing CNC Machines

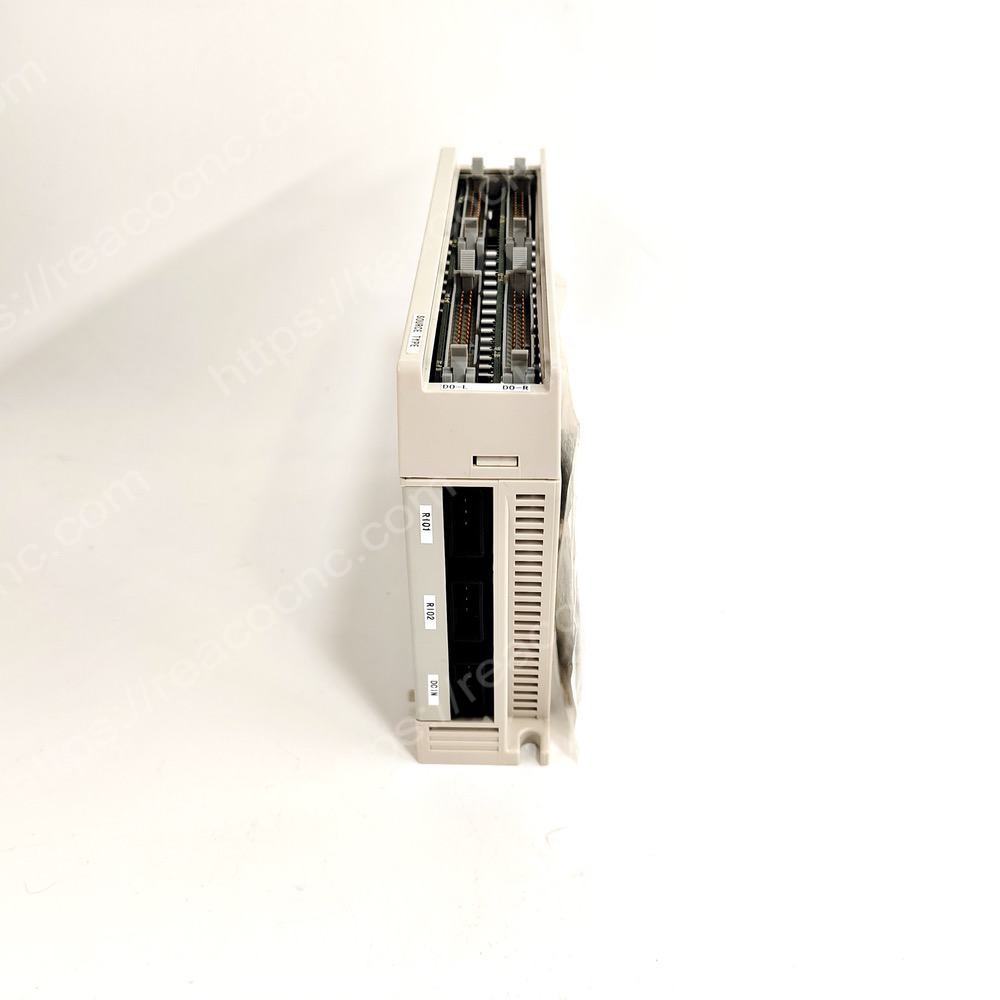

Confirm the FCUA-DX111 label, source-output requirement, RX312 and RX322-1 configuration, 24VDC supply, station setting, machine wiring and DI-L, DI-R, DO-L, DO-R, RIO1 and RIO2 connections before ordering.

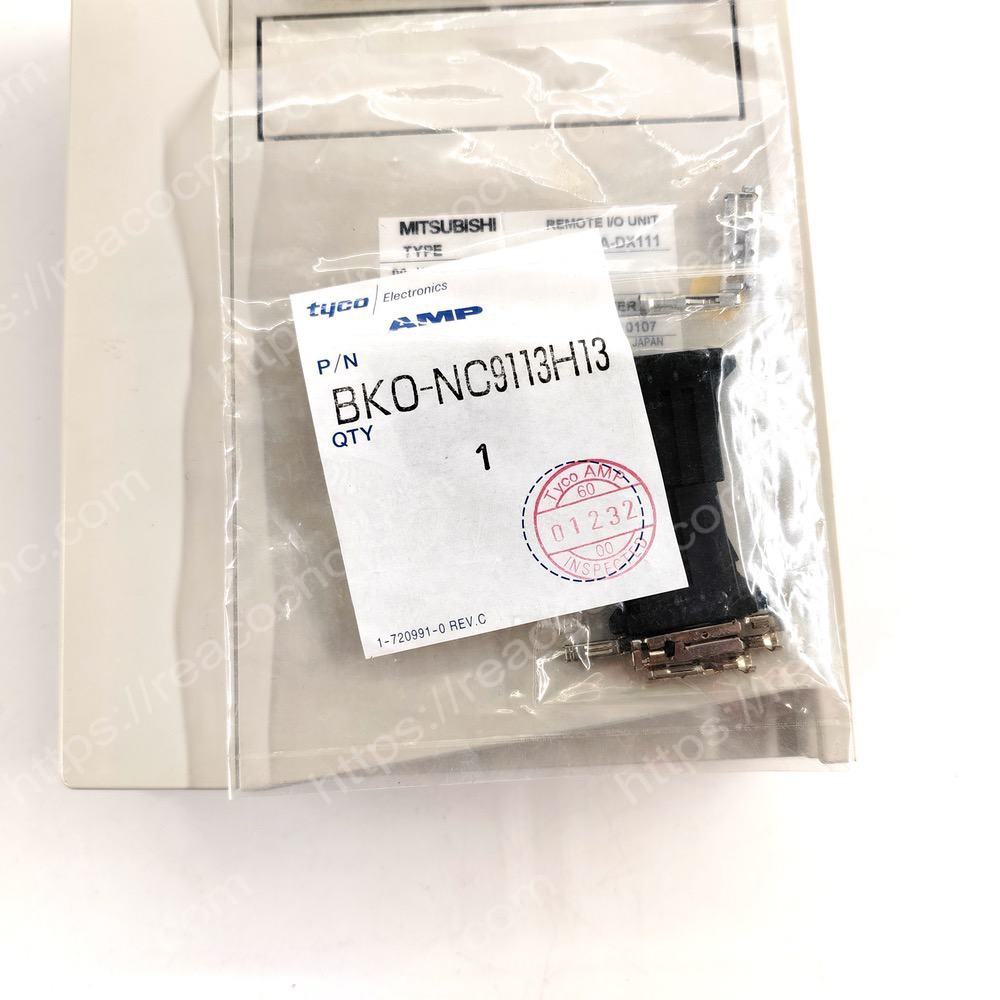

Send REACO CNC clear photos of the complete model label, front connectors and installed remote I/O assembly. Visible identifiers can be compared before condition, stock, price and lead time are confirmed.
Mitsubishi Remote I/O Supply and Repair Support
Browse related Mitsubishi CNC replacement parts and Mitsubishi CNC PCBs and I/O boards. Related units should be compared by complete model number, output type and internal hardware.
For a faulty original unit, REACO CNC also provides professional Mitsubishi CNC parts repair, including fault inspection, component-level repair and functional testing.
