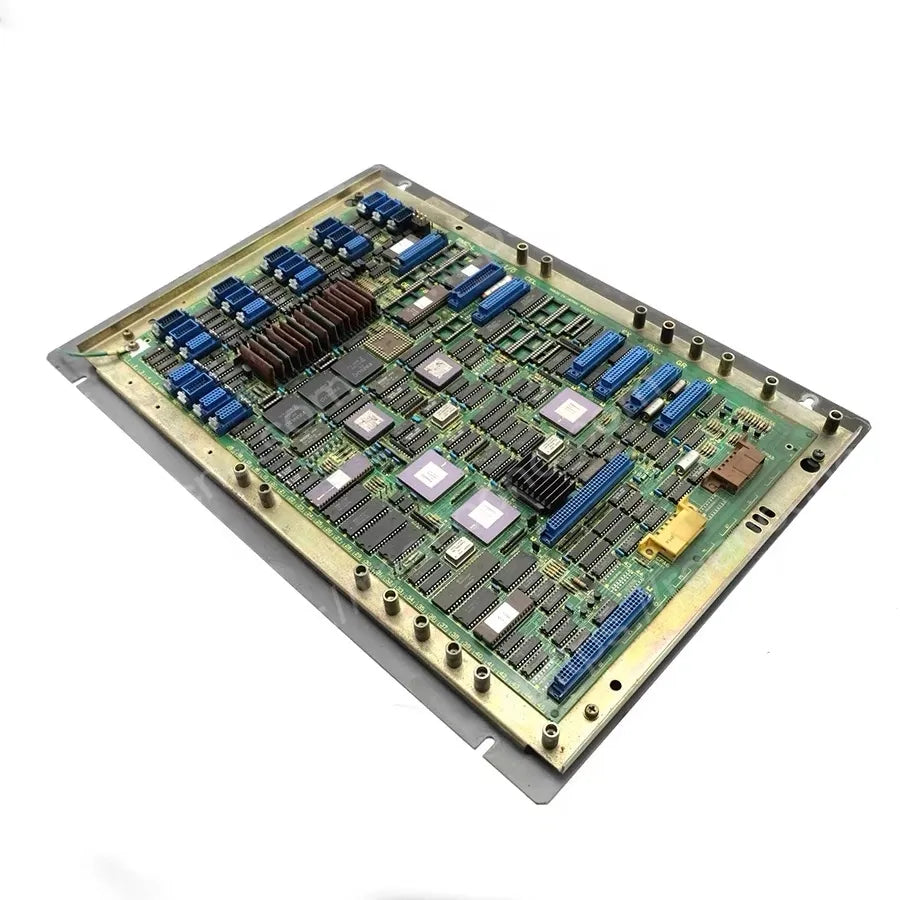

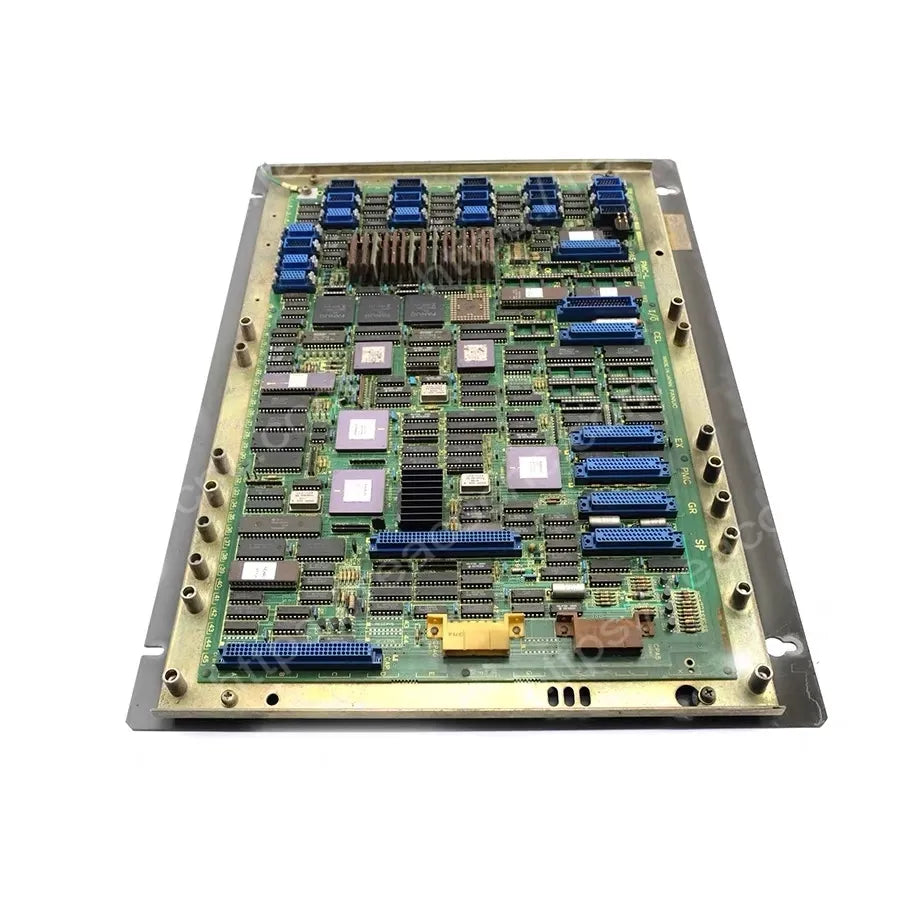

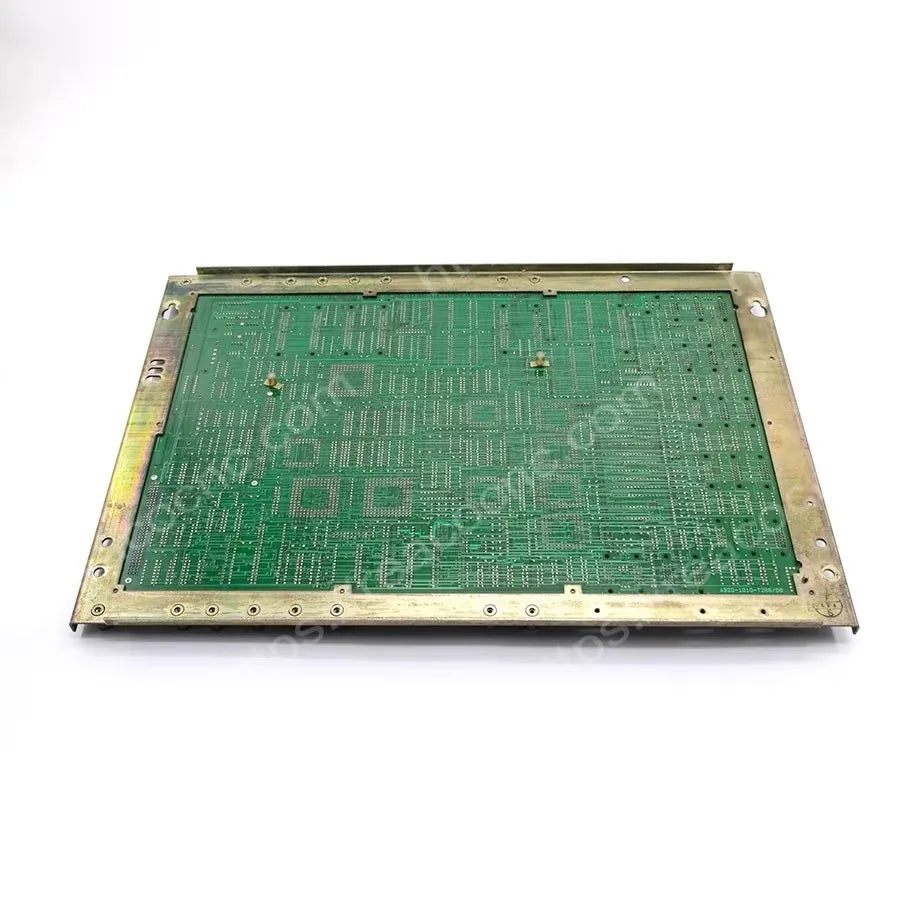

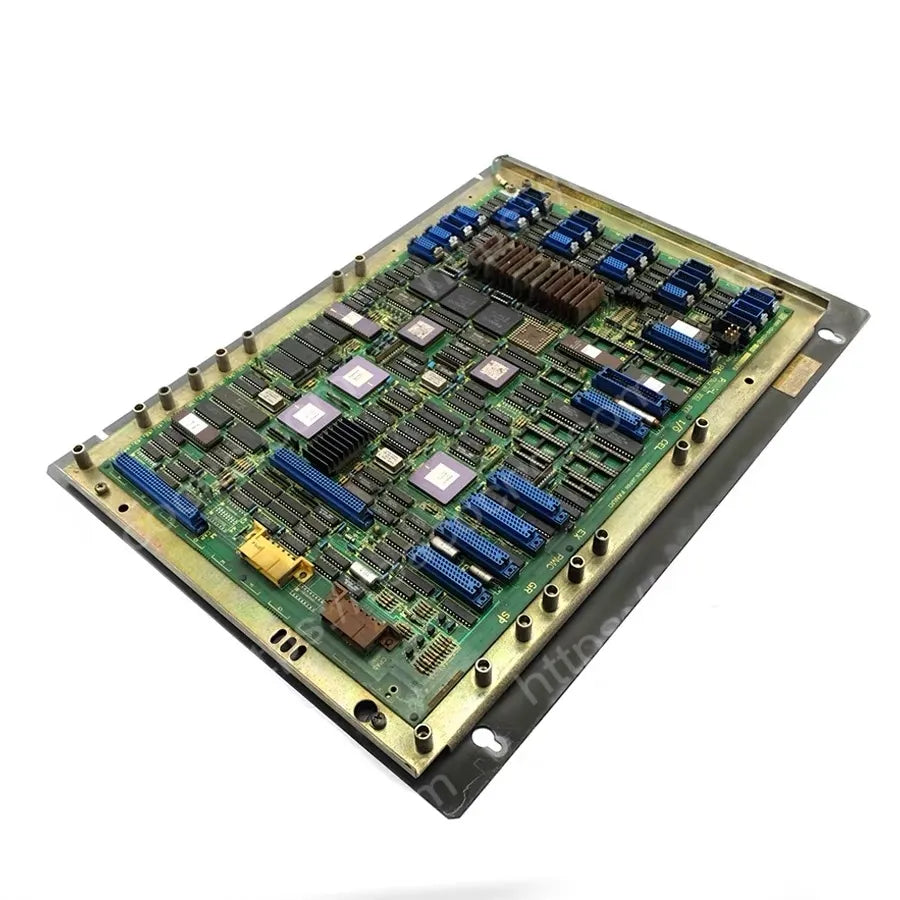

The FANUC A16B-1010-0285 is a discontinued Series 0 Model B digital master PCB. It is commonly identified as a three-axis master board with SV LSI and is used in three- or four-axis CNC configurations depending on the installed software, servo hardware and option boards.
Documented applications include FANUC 0-MB, 0-TTB, 0-PB, 0-GB and 0P4C systems. Because the board stores and coordinates machine-specific data and options, replacement requires more than matching the base drawing number.
A16B-1010-0285 Product Information
| Brand | FANUC |
| Model / MPN | A16B-1010-0285 |
| Product Type | Digital master PCB / CNC main control board |
| CNC Platform | FANUC Series 0 Model B |
| Documented Systems | 0-MB, 0-TTB, 0-PB, 0-GB and 0P4C |
| Base Axis Description | Three-axis master PCB with SV LSI |
| System Capability | Three or four axes depending on installed configuration |
| PMC Support | On-board PMC-L or separate PMC-M configuration |
| Status | Discontinued legacy FANUC product |
| Condition | New old stock, refurbished, or used 90% new; subject to stock |
| Testing | 100% tested before shipping; test video available |
| Handling | Normally 1–3 business days |
| Shipping / ETA | DHL / UPS / FedEx worldwide; typically 3–7 business days |
| Warranty | New/refurbished: 1 year; used 90% new: 3 months |
| Service / Packing | Free technical support and anti-static reinforced packing |
Series 0B Master-Control Functions
A16B-1010-0285 provides the main CNC processing, digital servo coordination, program and parameter memory, system-option management and machine communication functions. Spindle, graphics, I/O and expanded-axis capabilities depend on the complete control configuration and fitted peripheral boards.
A16B-1010-0285 vs. A16B-1010-0286
A16B-1010-0285 is the three-axis SV LSI master board used in 3/4-axis systems. A16B-1010-0286 is the related two-axis master board commonly used in 0-TB lathe controls. They are not direct substitutes without confirming the complete CNC configuration.
Replacement and Backup Requirements
Match the full part number, printed revision suffix, CNC type, software ROM set, SRAM capacity, PMC ladder, servo software, connectors and fitted daughterboards. Back up parameters, programs, offsets, diagnostics and PMC data before removal. Photograph all option positions and transfer components only after compatibility is verified.
Related resources: FANUC CNC circuit boards and FANUC CNC board repair services.
