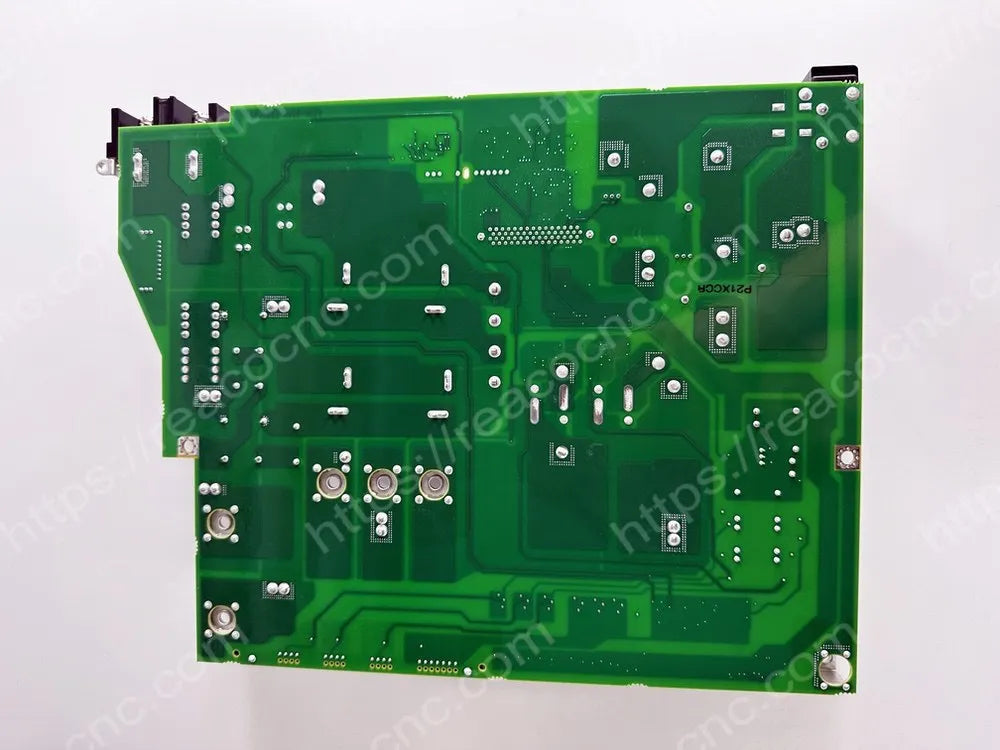

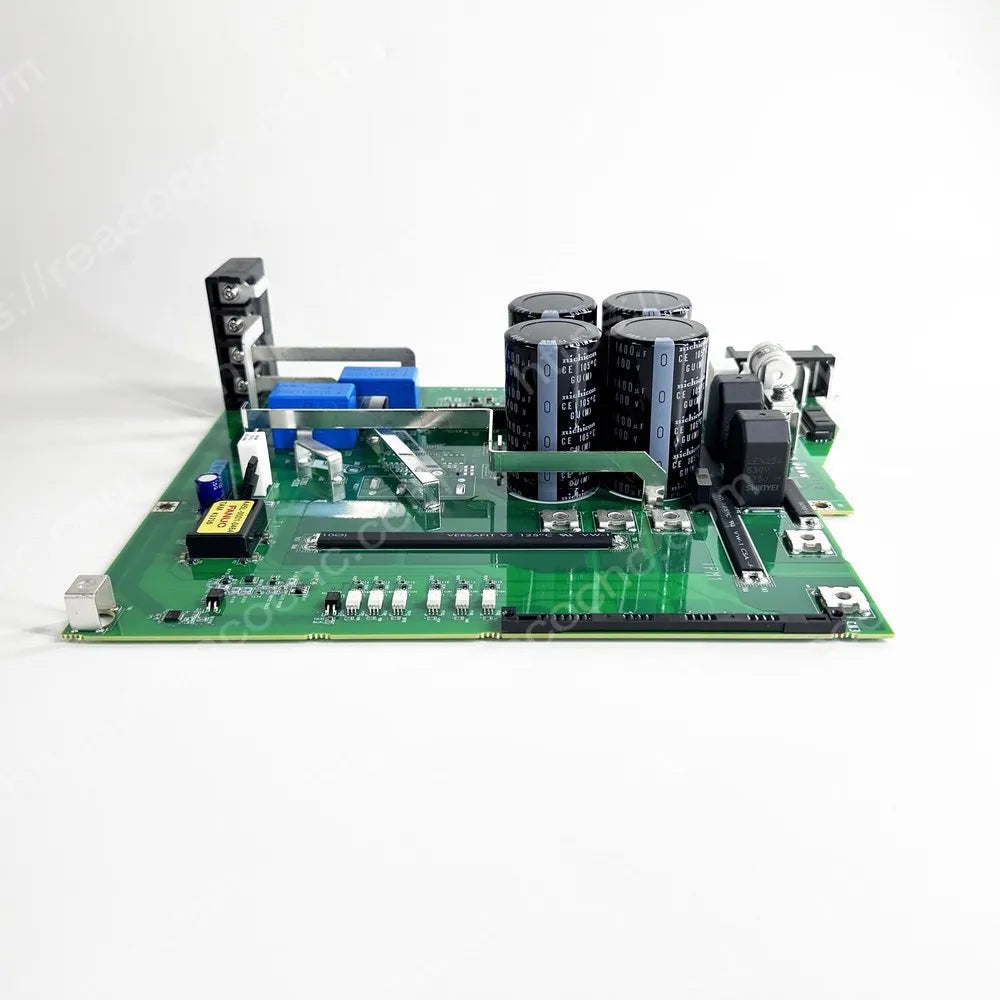

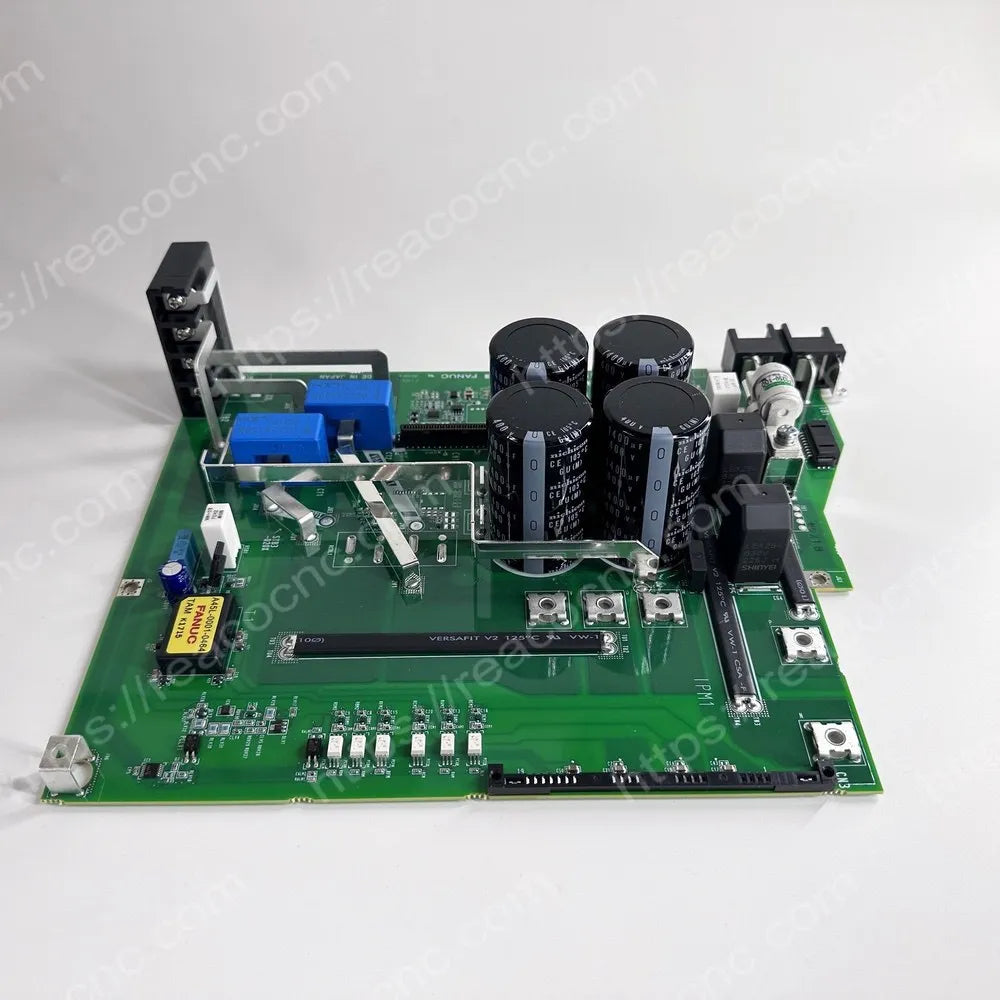

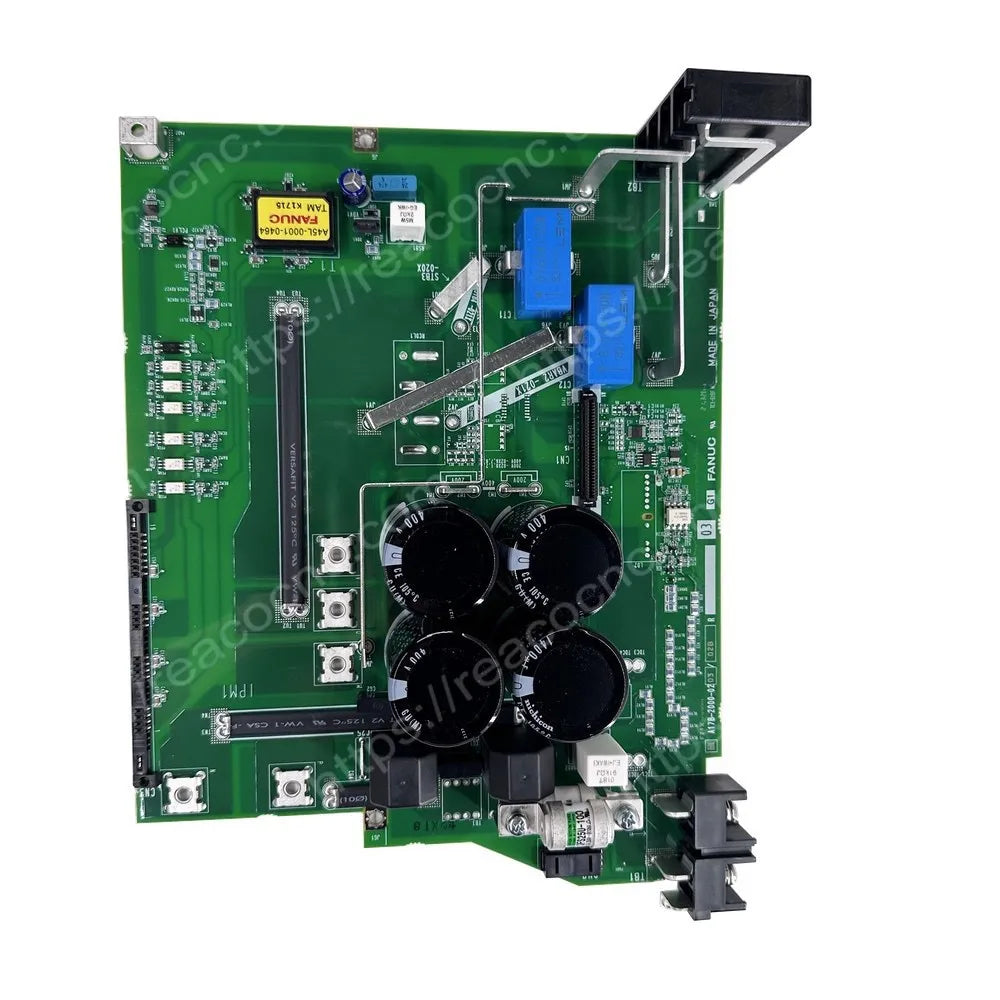

The FANUC A17B-2000-0203 is a power-stage circuit board used inside compatible FANUC αiSP-B spindle amplifier modules. It supports the amplifier’s high-power switching, DC-bus and motor-output connections and works with a separate spindle control PCB.
A documented application is the A06B-6220-H015#H600 αiSP 15-B spindle amplifier, where A17B-2000-0203 is paired with an A20B-2102-067x control board. This listing is for the internal power board, not the complete spindle amplifier.
A17B-2000-0203 Product Information
| Brand | FANUC |
| Model / MPN | A17B-2000-0203 |
| Product Type | Spindle amplifier power-stage board / drive base PCB |
| Drive Family | Compatible FANUC αiSP-B spindle amplifier modules |
| Verified Application | A06B-6220-H015#H600, αiSP 15-B |
| Host Voltage Class | 200V-class amplifier in the verified application |
| Associated Control PCB | A20B-2102-067x in the verified later-generation assembly |
| Primary Function | Power-stage switching and internal drive interconnection |
| Supply Scope | Power board/base assembly shown; complete amplifier not included |
| Compatibility Key | Exact PCB number, revision, layout and complete amplifier model |
| Condition | New, refurbished, or used 90% new; subject to stock |
| Testing | 100% tested before shipping; test video available |
| Handling | Normally 1–3 business days |
| Shipping / ETA | DHL, UPS, or FedEx worldwide; typically 3–7 business days |
| Warranty | 1 year for new/refurbished; 3 months for used 90% new |
| Service / Packing | Free technical support; anti-static reinforced packing |
Spindle Amplifier Power-Stage Function
The A17B-2000-0203 forms the high-power section of the compatible spindle amplifier. It routes DC-bus energy through the installed power devices to create controlled three-phase output for the spindle motor, while the separate control PCB handles commands, feedback, communication and protection logic.
Replacement and Compatibility Checks
Confirm A17B-2000-0203 on the original board together with its printed revision, connector positions, power-device arrangement, metal base and complete A06B amplifier label. Do not select it solely because another drive is from the A06B-6220 or αiSP family. Early and later assemblies can use different internal boards.
Testing and Installation Notes
REACO CNC checks the label, PCB, capacitors, terminals, connectors, power devices, solder joints and insulation, followed by spindle-amplifier testing when applicable. Qualified personnel should isolate incoming power, discharge the DC bus and diagnose the control board, power board, motor and cables before replacement.
