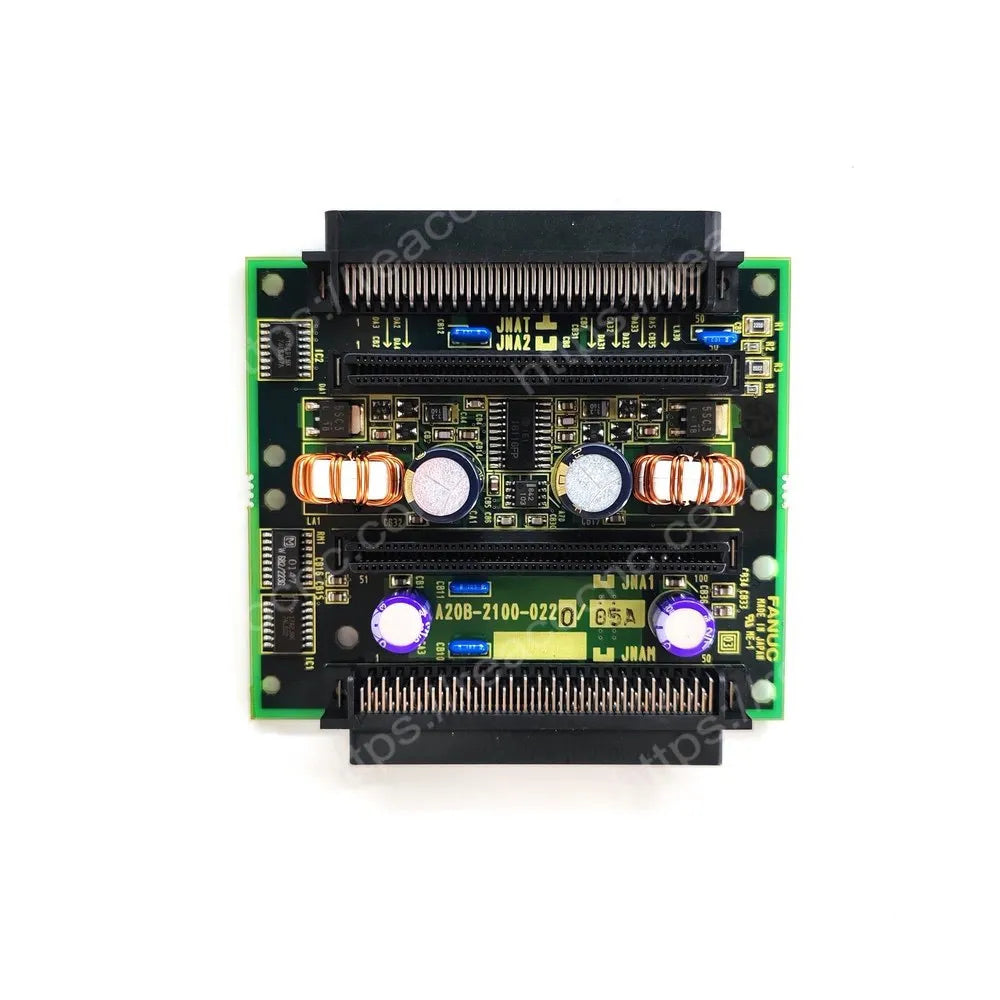

The FANUC A20B-2100-0220 is a two-slot backplane PCB for compatible FANUC CNC control units. It provides the internal mounting and electrical connection platform for supported plug-in control and option boards.

FANUC maintenance documentation formally identifies A20B-2100-0220 as a 2-slot backpanel. It is not the main CPU board or an individual option card. Confirm whether the supplied product is the PCB only or a complete backplane assembly with its casing and auxiliary components.

A20B-2100-0220 Product Information

Two-Slot Backplane Function

The backplane forms the internal connection platform for supported CNC cards. Its connectors carry the required board-to-board power and control signals within the control unit. Damage, contamination, heat deterioration or poor connector contact can produce startup faults, intermittent board recognition or unstable CNC operation.

Fitment and Assembly Checks

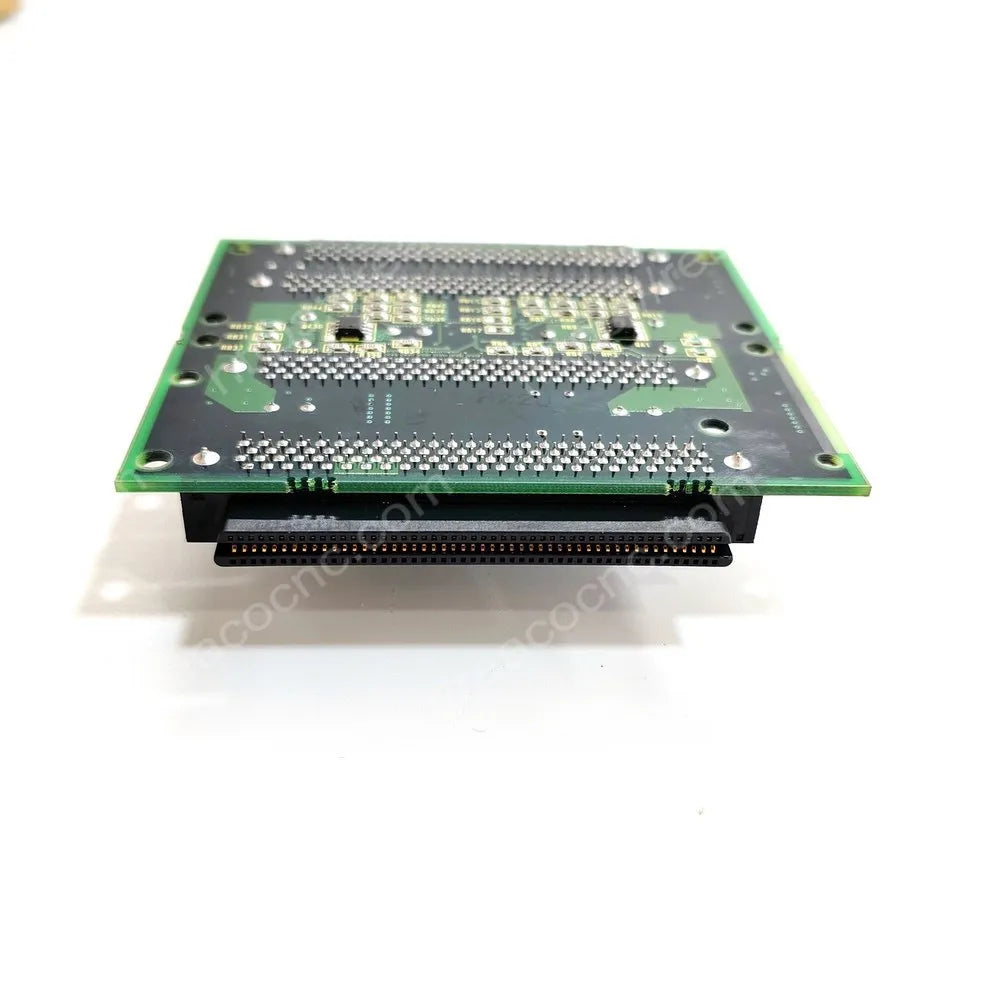

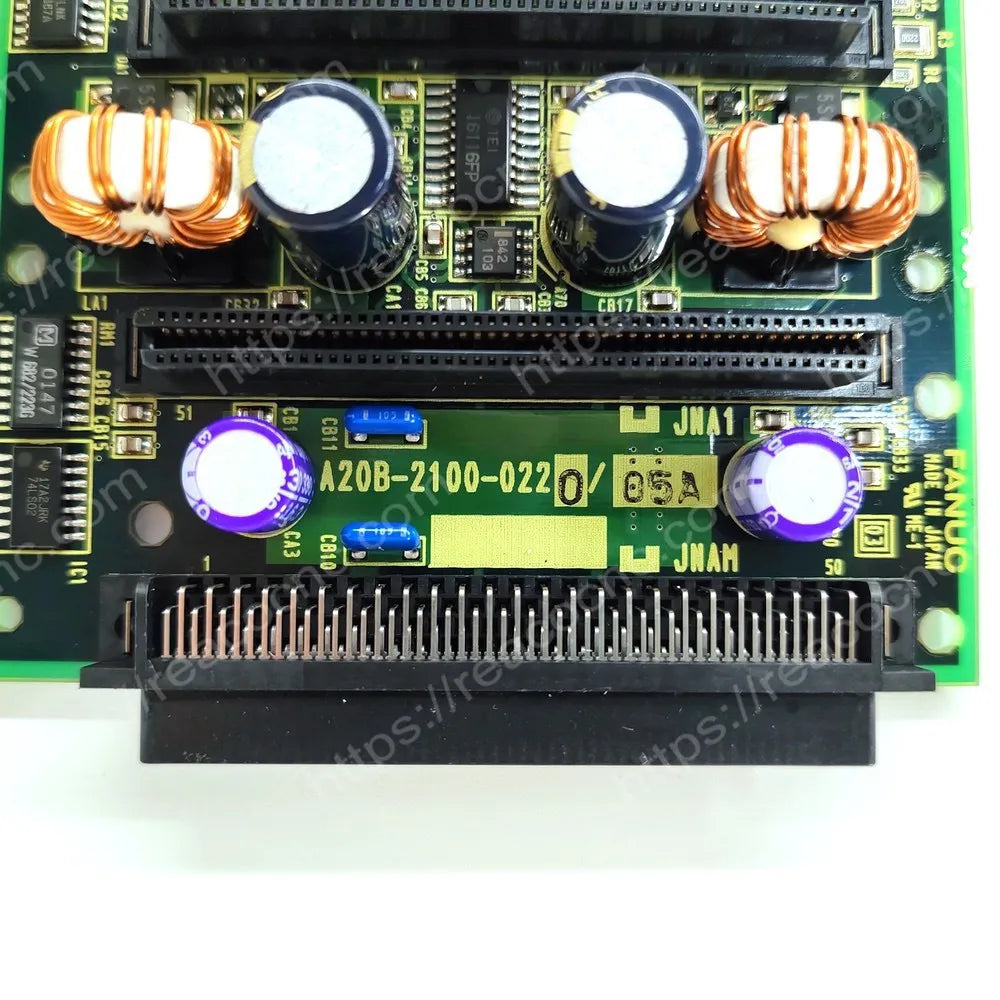

Match the complete A20B-2100-0220 number, PCB revision, two-slot layout, connector positions, mounting points and control-unit model. Do not substitute the three-slot A20B-2100-0290 or four-slot A20B-2100-0230. If purchasing a complete assembly, compare the casing, fan/battery interface board and hardware shown in the product photos.

Testing and Installation Notes

REACO CNC checks the label, PCB condition, slot connectors, continuity, power distribution and recognition of installed cards under an applicable test setup. Back up CNC parameters, programs, offsets and PMC data before service. Isolate all power, use ESD protection and have qualified CNC personnel install the board.
