Skip to product information
In stock

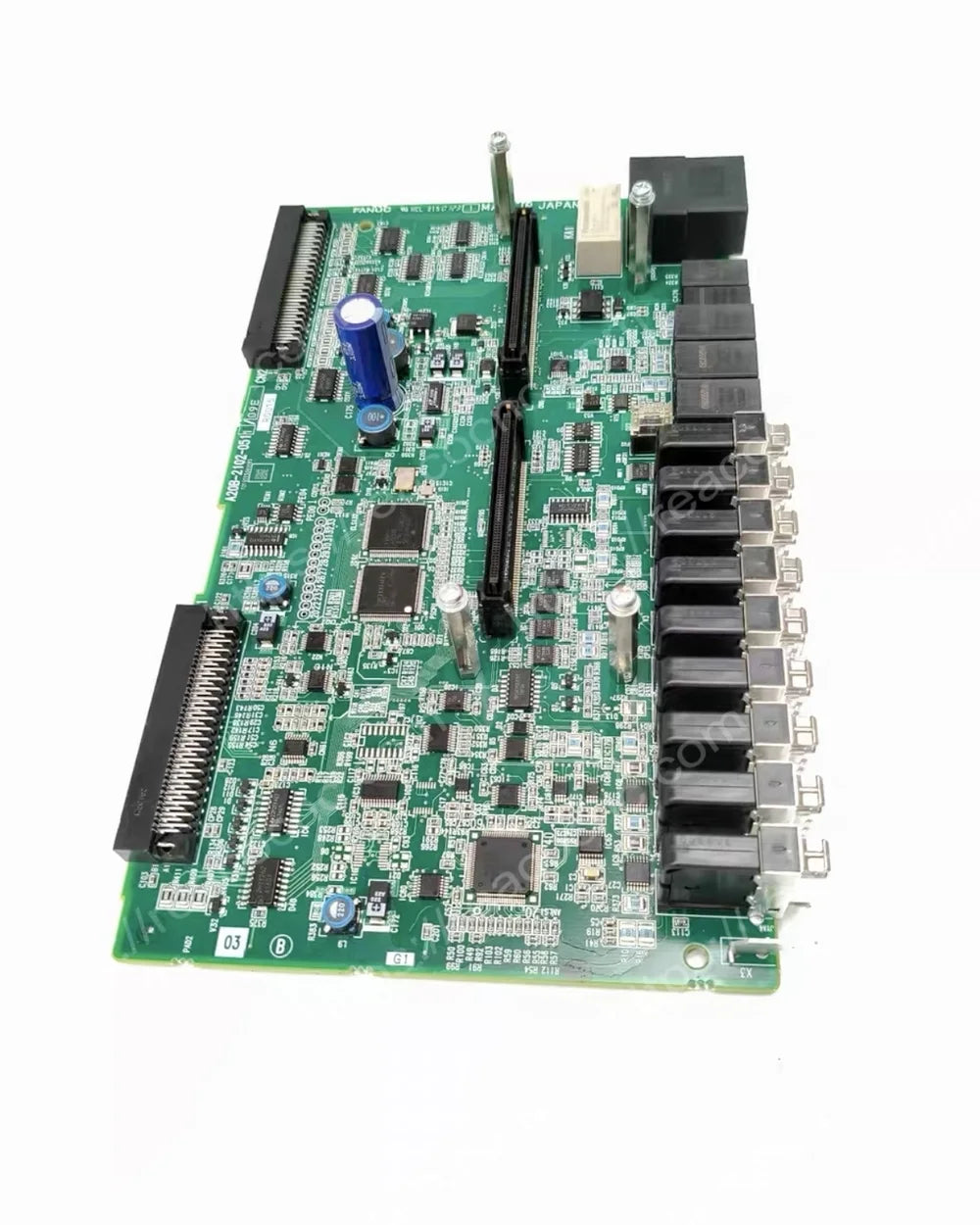

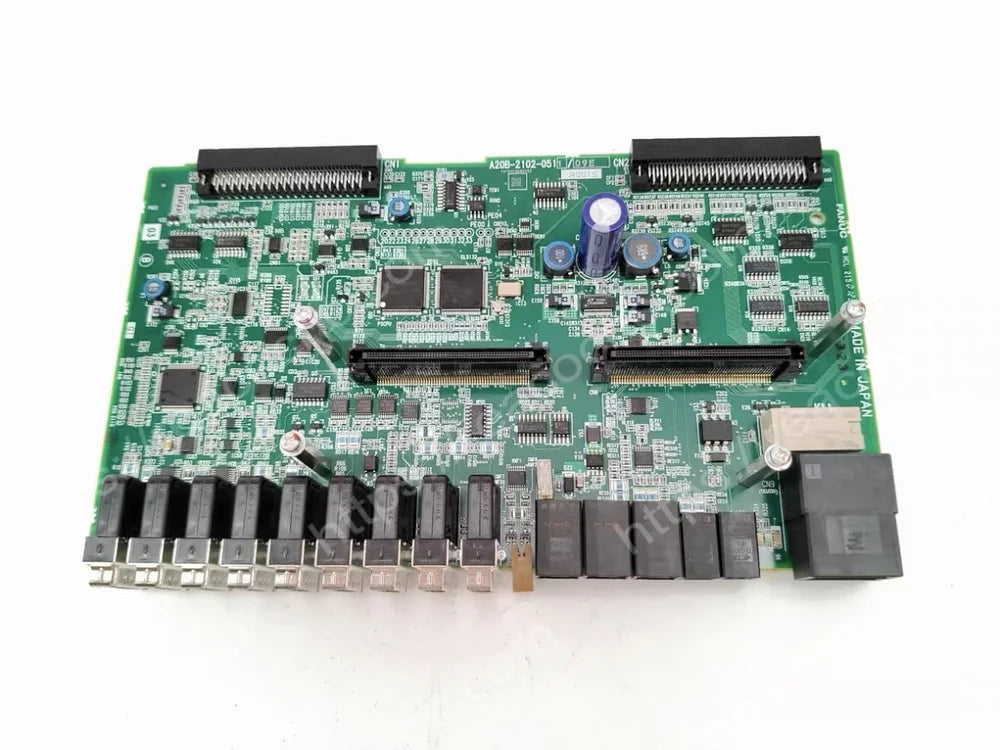

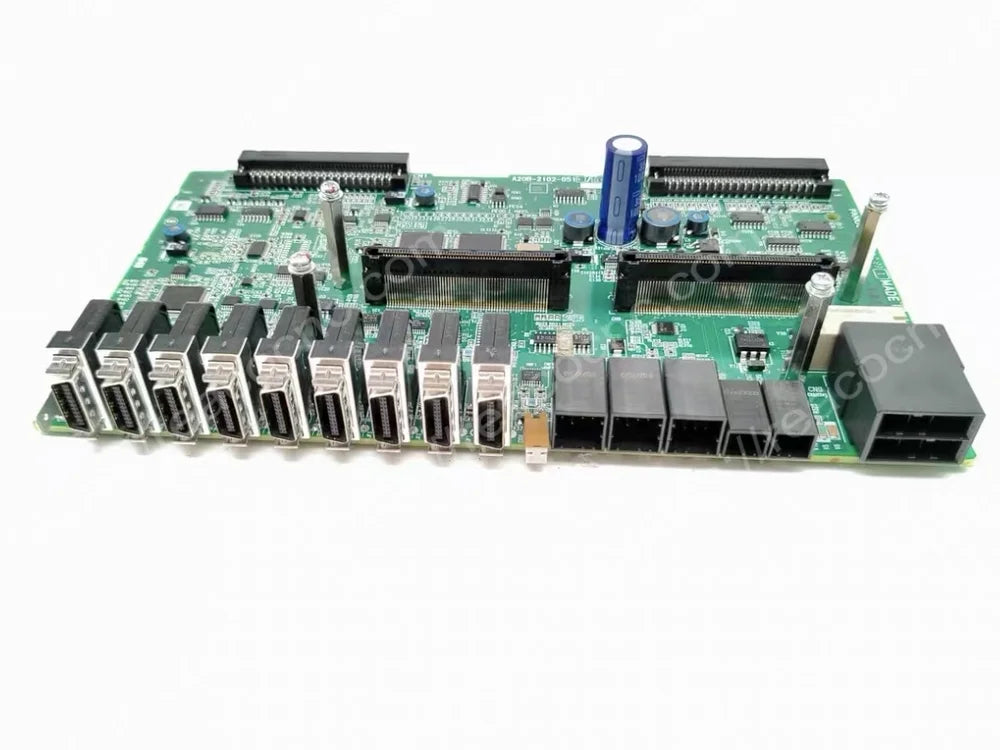

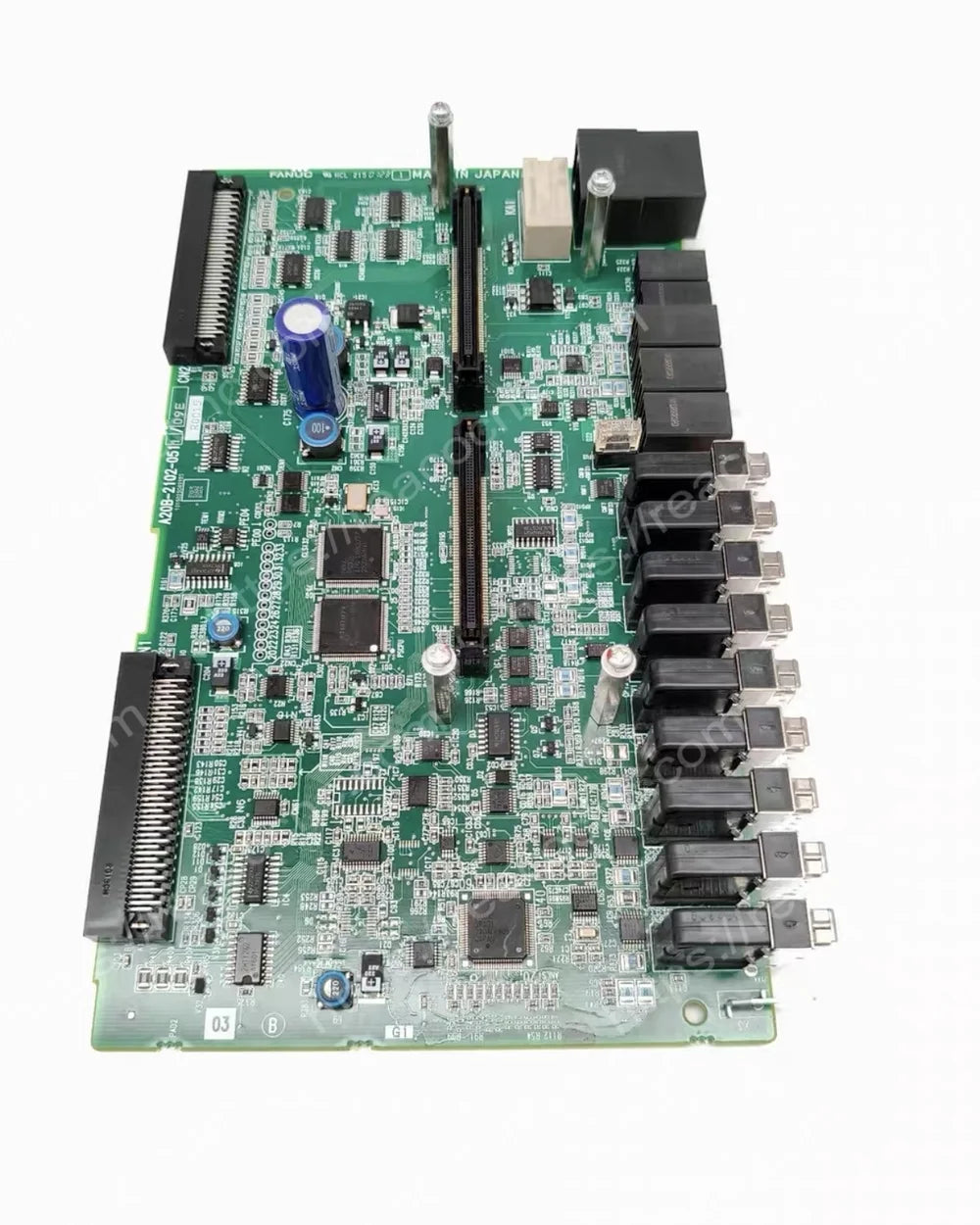

FANUC A20B-2102-0511 BiSVSP-B Control PCB for A06B-6320-H364
$1,396.00 USD
Shipping:
Delivery: Estimated 2- 6 business days delivery. See details
Returns: 14 days returns. See details
FANUC A20B-2102-0511 BiSVSP-B Control PCB for A06B-6320-H364
| Brand | FANUC |
| Part Number / MPN | A20B-2102-0511 |
| Component Type | Internal servo/spindle amplifier control printed circuit board |
| Documented Host Reference | A06B-6320-H364 |
| Amplifier Model | FANUC βiSVSP80/80/80-18-B, commonly searched as BiSVSP-B |
| Host Unit Specification | A06B-6320-C364 |
| Related Control PCB Unit | A06B-6320-C003; this assembly reference is not the individual PCB MPN |
| Search References | A20B-2102-0511 / A20B21020511 / A20B 2102 0511 / BiSVSP-B / βiSVSP-B / A06B-6320-H364 / A06B6320H364 / A06B-6320-C003 |
| Related Amplifier References | A06B-6320-H311 / H312 / H332 / H333 / H343 / H344 / H364; individual PCB compatibility requires separate verification |
| Condition | New / Refurbished / Used options subject to current inventory |
| Handling Time | Within 1–2 working days for stocked boards |
| Shipping | DHL / UPS / FedEx |
| Estimated Delivery Time (via DHL) |
Asia: 1–3 business days Europe: 2–4 business days North America: 2–4 business days South America: 3–6 business days Middle East & Africa: 3–6 business days Oceania: 2–5 business days |
| Warranty |
New / Refurbished: 1 year Used (90% new): 3 months |
| Electrical Rating | Internal control PCB without an independent power-output rating; refer to the complete amplifier nameplate |
| Compatibility Check | Match A20B-2102-0511, the complete modification suffix, connector layout, component arrangement and amplifier model |
| Scope of Supply | Control PCB only; complete amplifier, companion boards, faceplate, cables and accessories are not included unless shown or quoted |
| Service | Functional testing and test video before delivery |
| Packing | Anti-static protective packaging and reinforced carton |
A20B-2102-0511 Control PCB Identification
FANUC A20B-2102-0511 is an internal control PCB used in a βiSVSP-B integrated servo and spindle amplifier. The individual board number should be used as the primary product model and Shopify MPN.
Customers may search for the board as A20B21020511, A20B 2102 0511, FANUC 6320 control PCB, BiSVSP-B control board, 3+1 drive control board or servo amplifier CPU board. “CPU board” is a customer search description rather than the formal component classification.
Documented A06B-6320-H364 Application
A06B-6320-H364 is the order specification for the FANUC βiSVSP80/80/80-18-B integrated amplifier. Its model designation represents three servo-axis channels together with one spindle channel.
The complete amplifier uses unit specification A06B-6320-C364 and control PCB unit A06B-6320-C003. These complete-unit references help identify the application but must not replace A20B-2102-0511 as the individual PCB MPN.
MF Plus and Related Amplifier Searches
This board may be found in machinery equipped with a FANUC 0i-MF Plus CNC, but it belongs to the βiSVSP-B amplifier rather than the CNC controller itself. It should therefore not be advertised as an MF Plus-exclusive CPU motherboard.
Other three-servo-axis βiSVSP-B amplifiers may use the same control-board family. Always verify the individual A20B marking and modification suffix before treating another A06B-6320 model as compatible.
Checks Before Replacing the PCB
Compare the complete A20B-2102-0511 marking, any slash modification code, connectors, component layout and the complete amplifier nameplate. A20B-2102-0500 and other boards installed in the same assembly are separate PCBs and are not automatic substitutes.
PCB replacement must be completed by a qualified technician. Disconnect all power, confirm that the charge indicator is off and verify that the DC-bus voltage has safely discharged before opening the amplifier.
FANUC Control PCB Supply and Repair
Browse related FANUC printed circuit boards or view the complete FANUC A06B-6320-H364 BiSVSP-B amplifier.
REACO CNC also provides professional FANUC amplifier and PCB repair, including fault inspection, component-level repair and functional testing.
