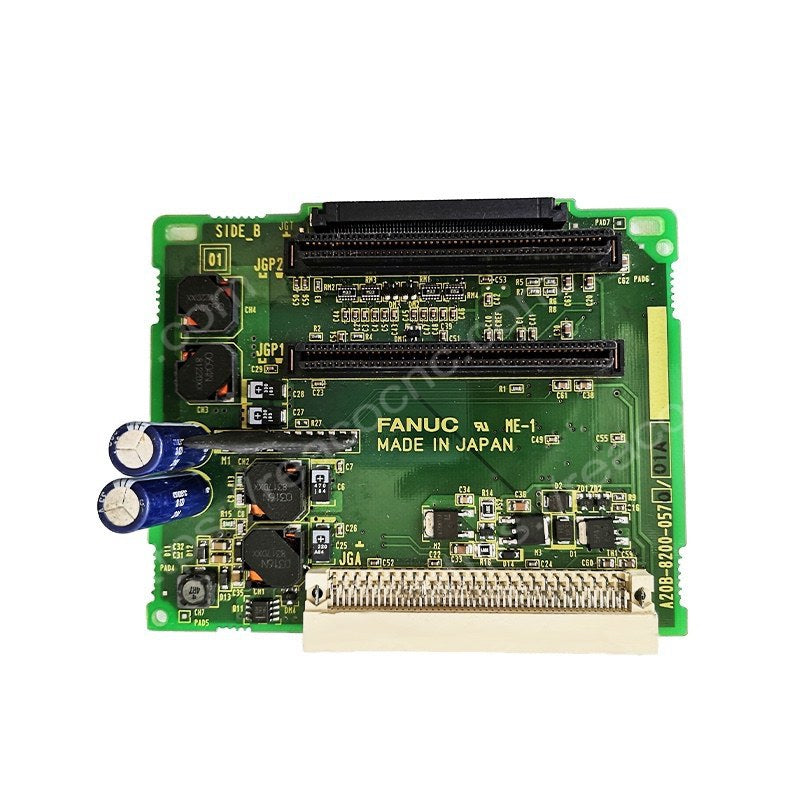

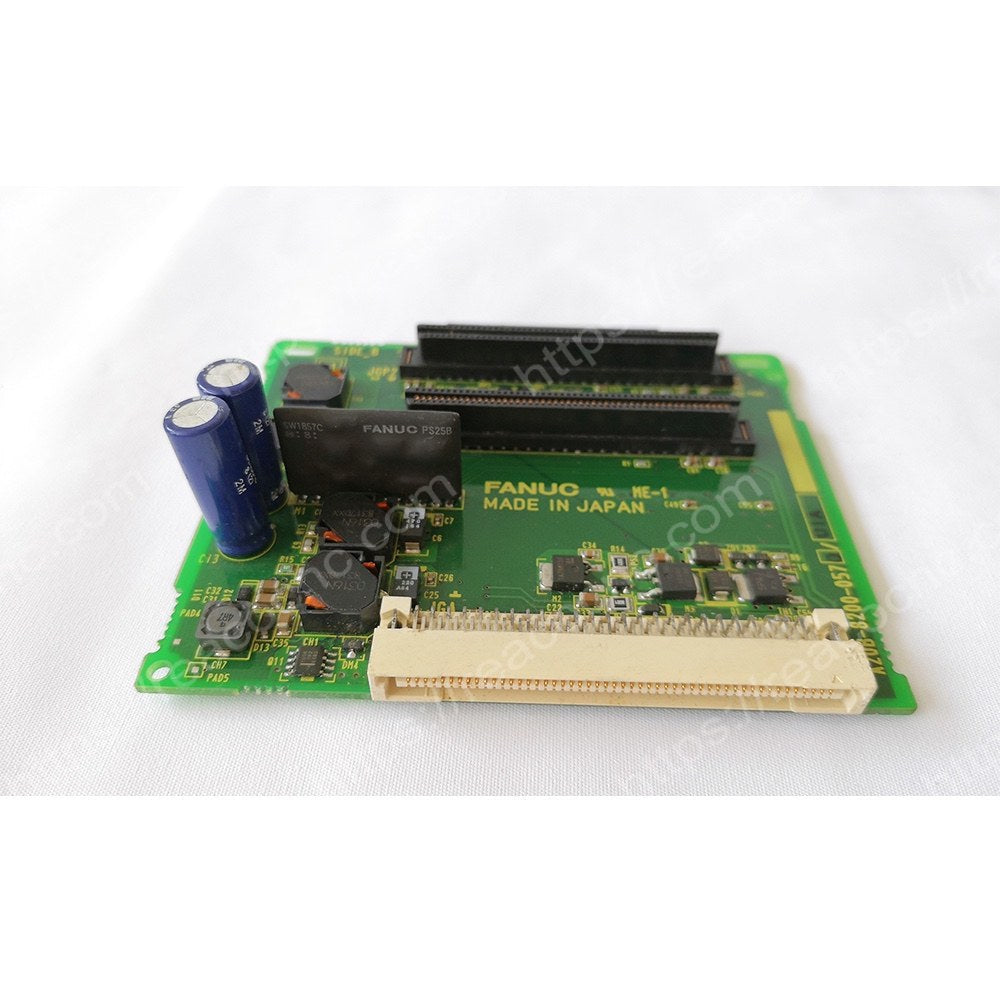

The A20B-8200-0570 is a Fanuc backplane PCB used in F0i-D control systems. Identified as a 2-slot back board, this board is an important part of the internal CNC control structure, providing the physical and electrical connection platform for related control modules inside the system.

While a backplane board may look simpler than a main PCB, it plays a critical role in keeping the entire system organized and connected correctly. If the original A20B 8200 0570 becomes damaged, worn, or unstable, it can affect communication between connected boards and lead to system faults that are difficult to diagnose. For this reason, the correct replacement back board remains an important part for maintenance and repair work.

At REACO CNC, we supply dependable Fanuc parts for customers maintaining Fanuc CNC systems, including control boards, interface boards, and hard-to-find PCB assemblies used in legacy and active machine platforms.

Product Overview

The A20B-8200-0570 Fanuc back board is designed for F0i-D systems and serves as a 2-slot backplane board within the control unit. Its role is to support board installation and maintain the internal connection path required for the CNC system to operate correctly.

In many repair situations, the condition of the backplane is only noticed after repeated control problems or board communication issues appear. A damaged back board can create symptoms that look like faults in other modules, which is why using the correct A20B-8200-0570 replacement can save time and reduce unnecessary troubleshooting.

Key Features

• Fanuc backplane PCB for F0i-D systems
• 2-slot back board design
• Supports board connection and internal system layout
• Suitable for replacement, repair, or maintenance stock
• Practical solution for preserving original Fanuc control architecture

Typical Applications

The A20B-8200-0570 is commonly used in:

• Fanuc CNC control units
• F0i-D control system assemblies
• Industrial machine tool electronics
• Maintenance and rebuild projects requiring original-compatible Fanuc control PCBs
• Service jobs involving internal board connection issues

Depending on the machine configuration, it may be sourced together with main PCBs, interface boards, servo amplifier modules, spindle drive units, and related Fanuc controller parts.

Why This Board Matters

In CNC systems, reliable board-to-board connection is just as important as the boards themselves. A stable backplane helps keep the system structured properly and supports communication between installed modules. If the back board is faulty, the machine may show irregular control behavior, connection issues, or startup problems that interrupt production.

That is why customers often search for the A20B-8200-0570 when they need:

• An exact replacement for a damaged backplane
• Support for Fanuc CNC repair work
• Backup Fanuc stock for important machines
• Hard-to-find internal PCB assemblies
• A reliable source for original-compatible Fanuc parts

Condition Options

Depending on availability, this board may be supplied in:

• New condition
• Refurbished condition
• Used condition

For many customers, refurbished stock is a practical choice because it helps maintain the original machine structure without the long delays sometimes associated with limited OEM availability.

Repair and Replacement Support

REACO CNC supports customers who need direct replacement boards as well as those comparing replacement and Fanuc repair options. If your existing A20B-8200-0570 is damaged, we can help you review the situation and determine the most practical solution based on the board condition and stock availability.

We also support broader sourcing for related Fanuc parts, including main PCBs, backplane boards, interface boards, drives, and other electronic assemblies used in Fanuc-controlled equipment.

Additional Notes

A backplane board may not be the most visible part of a CNC control system, but it is often essential to overall system stability. For customers keeping F0i-D machines in operation, replacing a worn or damaged A20B 8200 0570 can be an efficient way to preserve the existing hardware configuration and avoid larger control issues later.

FAQ

What is A20B-8200-0570?
It is a Fanuc backplane PCB used in F0i-D control systems.

What does this board do?
It acts as a 2-slot back board that supports internal board installation and connection within the CNC control unit.

Is A20B-8200-0570 a main PCB?
No. It is a backplane board rather than a main control board.

Can this board be repaired or replaced?
Yes. Depending on condition and stock, repair or replacement may be possible.

Do you ship internationally?
Yes. We supply Fanuc parts to customers worldwide.

Need stock, pricing, or repair support for A20B-8200-0570?
Contact REACO CNC for availability and worldwide shipping options.
