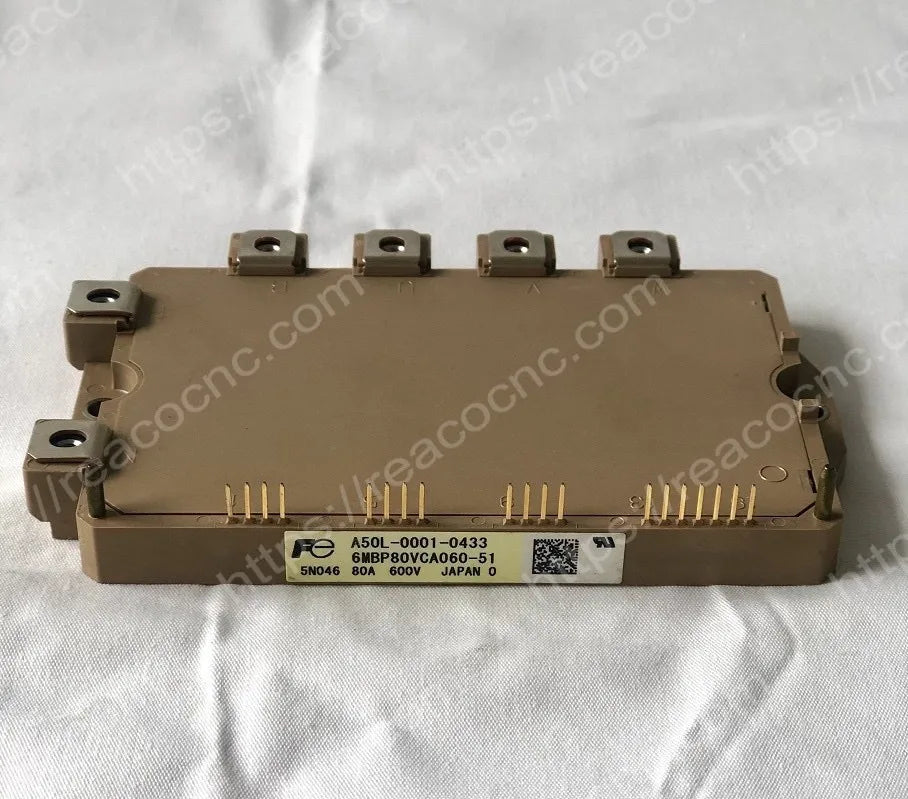

FANUC A50L-0001-0433 identifies the Fuji Electric 6MBP80VCA060-51 intelligent power module. This VCA Series six-switch IGBT module is rated at 600V and 80A for the inverter power stage of compatible FANUC Alpha i amplifier hardware.
A documented application is the FANUC Alpha iSV 80/80 servo amplifier. The module is also associated with selected Alpha i spindle amplifiers and power-supply modules. Confirm the complete A06B host because the -51 suffix identifies a FANUC-specific package.
A50L-0001-0433 Product Information
| FANUC Part Number | A50L-0001-0433 |
| Module Model | 6MBP80VCA060-51 |
| Manufacturer | Fuji Electric |
| Product Type | Intelligent power module / IGBT-IPM |
| Series | VCA Series |
| Configuration | Six-switch three-phase inverter module |
| Voltage Rating | 600V |
| Current Rating | 80A |
| Package Suffix | -51 FANUC-specific configuration |
| Documented Application | FANUC Alpha iSV 80/80 servo amplifier |
| Additional Application | Selected Alpha i spindle and power-supply modules |
| Protection Features | Junction-temperature detection and overheating protection |
| Condition | New, refurbished, or used 90% new; subject to stock |
| Testing | 100% tested before shipping; test video available |
| Handling | Normally 1–3 business days |
| Shipping / ETA | DHL, UPS, or FedEx worldwide; typically 3–7 business days |
| Warranty | 1 year for new/refurbished; 3 months for used 90% new |
| Service / Packing | Free technical support; anti-static reinforced packing |
Three-Phase Inverter Power Stage

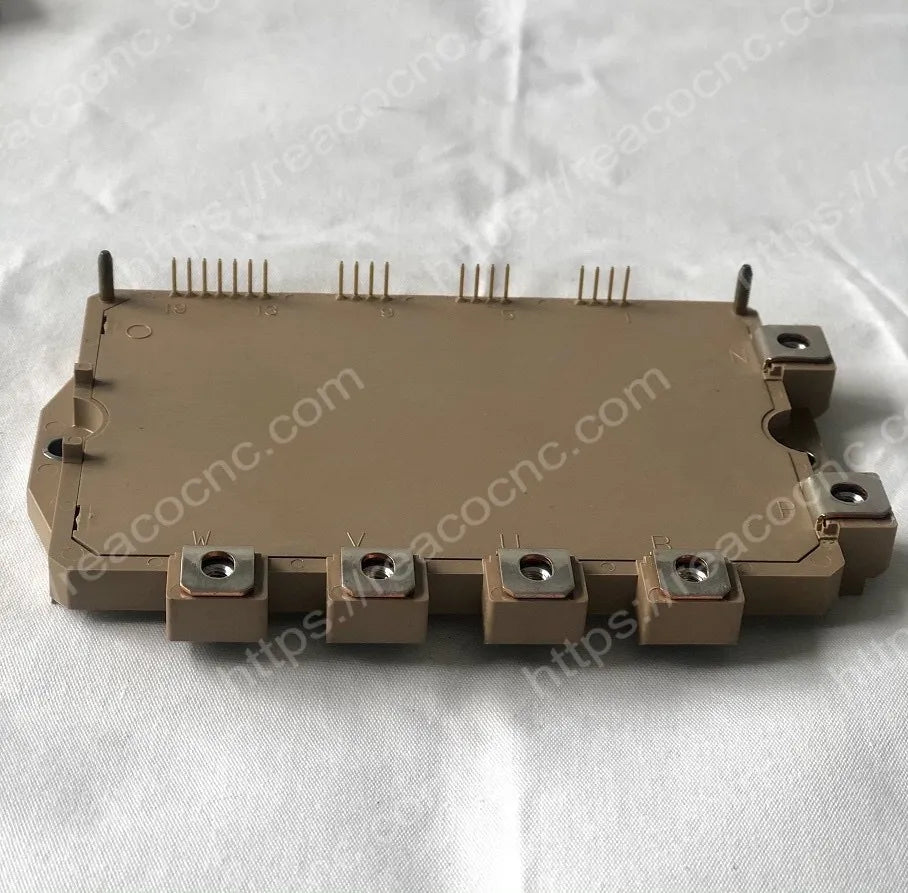

The 6MBP80VCA060-51 integrates six IGBT switches with associated control and protection circuitry for three-phase motor power conversion. Its V-Series design supports low power loss, soft switching and direct IGBT junction-temperature monitoring.
Compatibility and Module Matching
Confirm both A50L-0001-0433 and 6MBP80VCA060-51 on the original module. Compare the complete A06B amplifier number, terminals, control connector, baseplate and mounting holes. Do not substitute 6MBP80VCA060-01, 6MBP80VBA060-51, A50L-0001-0436 or other modules because their housings appear similar.
Testing and Installation
REACO CNC checks the labels, housing, terminals, baseplate, insulation and electrical characteristics before shipment. Installation requires a clean heatsink, correctly applied thermal compound and specified mounting torque. Qualified personnel must isolate power and confirm the DC bus is fully discharged before service.
Related resources: FANUC servo and spindle drives and FANUC amplifier repair service.
