Mitsubishi FCA730P-4VS M730VS 10.4-Inch CNC Controller

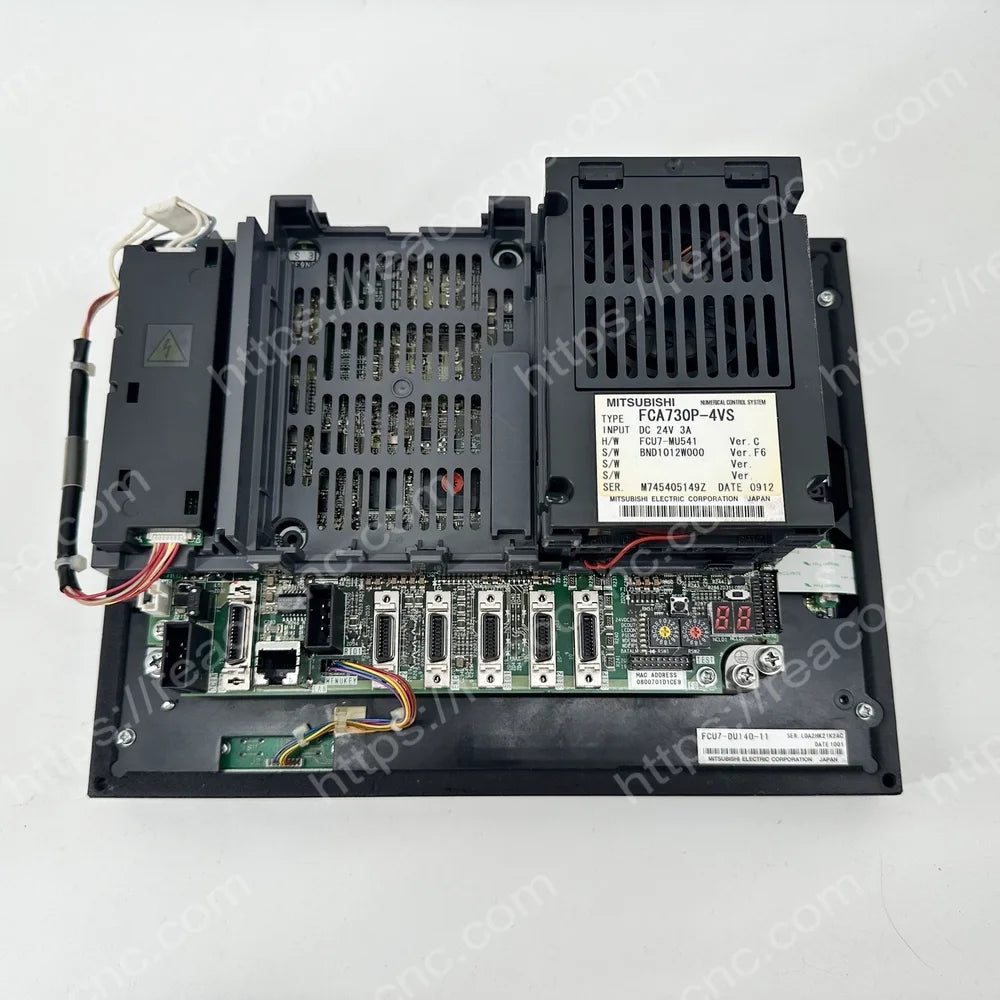

Mitsubishi FCA730P-4VS is a panel-mounted M730VS CNC controller configuration for machine tools using the Mitsubishi M700VS platform. It combines the FCU7-MU541 control unit with the FCU7-DU140-11 10.4-inch color TFT display, providing CNC processing, machine display and system interface functions.

The FCU7-DU140-11 provides VGA 640 × 480 resolution and is the non-touch display version. Before replacement, confirm the complete FCA model, control-unit label, display-unit label, machine application, installed options, connectors and software data.

FCA730P-4VS Product Specifications

M730VS Controller Configuration

The FCA730P-4VS is associated with the M730VS control level and a 10.4-inch display. The FCU7-MU541 performs CNC control and display-controller functions, while the FCU7-DU140-11 shows machine status, programs, parameters, alarms and operating screens. Available functions depend on the machine-tool builder configuration and installed CNC options.

Non-Touch FCU7-DU140-11 Display

FCU7-DU140-11 is the non-touch 10.4-inch display. It should not be confused with FCU7-DU140-31, the 10.4-inch touch-panel version used in FCA730H-4VS configurations. FCA730P-2VS is the related 8.4-inch configuration and is not the same assembly.

Replacement and Data Checks

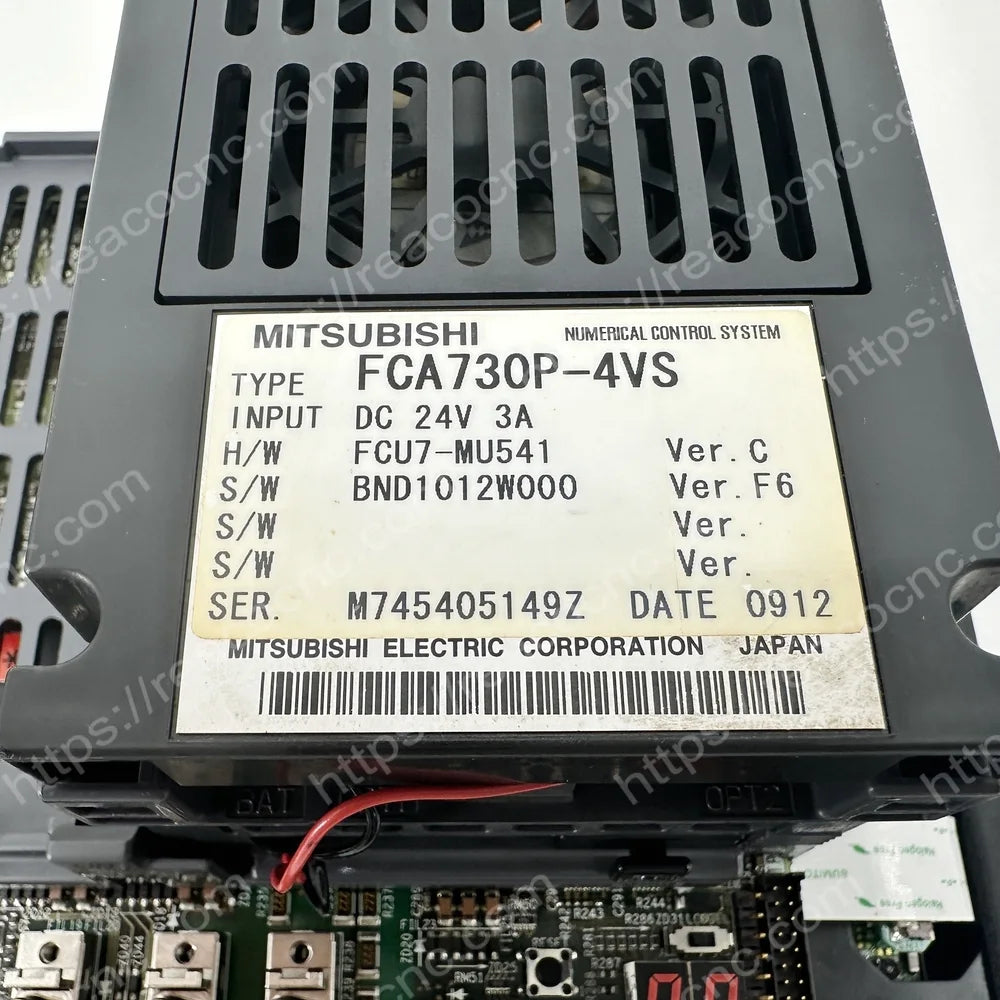

Confirm FCA730P-4VS, FCU7-MU541 and FCU7-DU140-11 on the original nameplates. Back up machine parameters, PLC data, programs, tool and offset data, and option information before replacement. Installation and data restoration should be completed by qualified CNC personnel using the machine builder documentation.
