Mitsubishi MDS-D-V2-160160 Dual-Axis CNC Servo Drive Unit
$1,752.00 USD
Shipping:
Delivery: Estimated 2- 6 business days delivery. See details
Returns: 14 days returns. See details

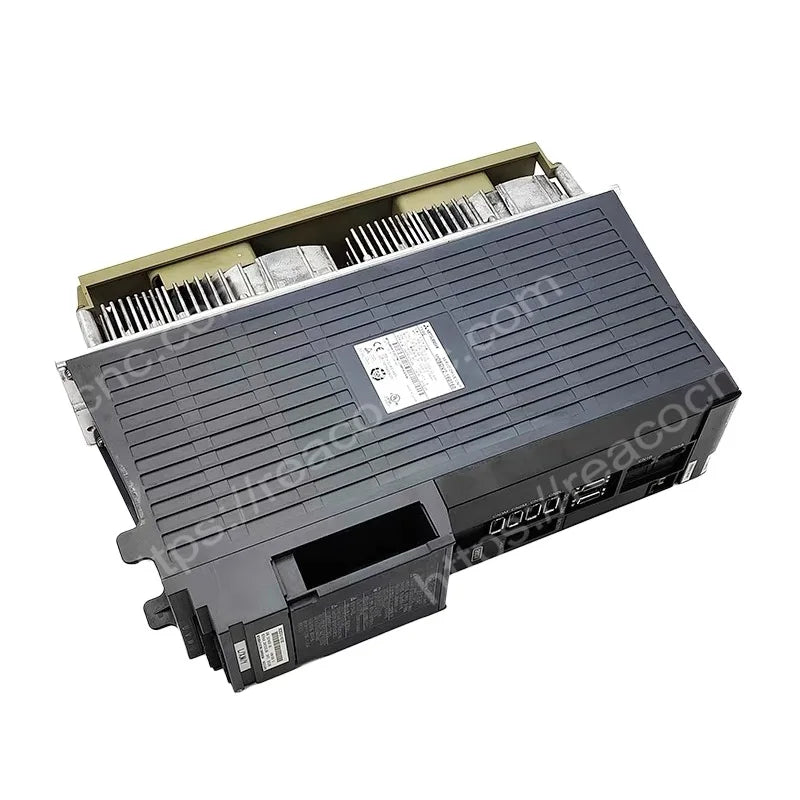

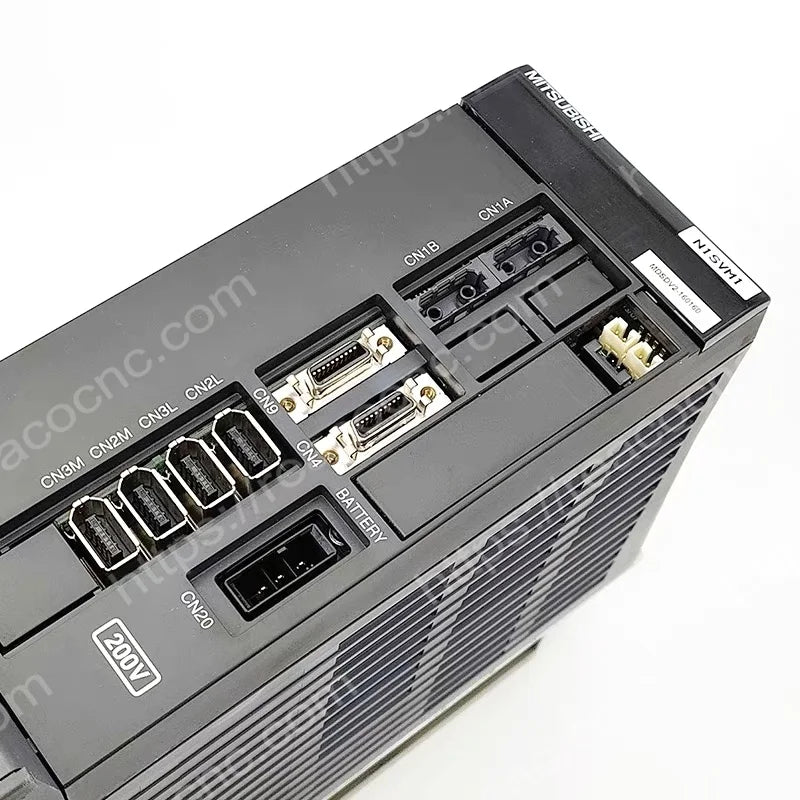

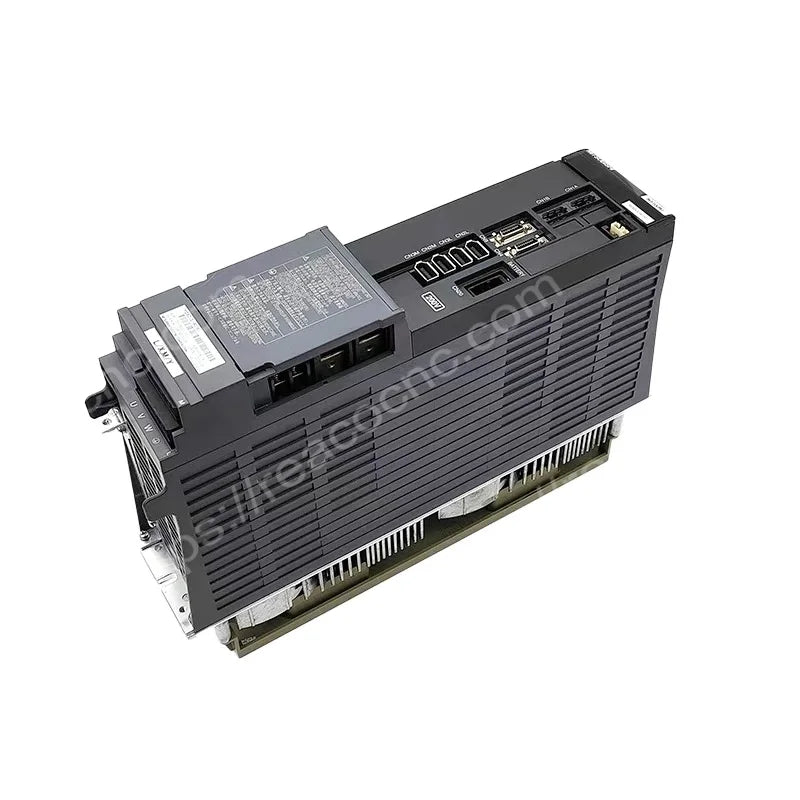

Mitsubishi MDS-D-V2-160160 Dual-Axis CNC Servo Drive Unit
The Mitsubishi MDS-D-V2-160160, also searched as MDSDV2-160160, is a two-axis CNC servo drive unit for 200V MDS-D systems. Its L and M channels have a nominal maximum current of 160A/160A peak for position, speed, and torque control in compatible Mitsubishi CNC machines.
Product Information
| Brand | Mitsubishi Electric |
| Model / MPN | MDS-D-V2-160160 |
| Product Type | Dual-axis CNC servo drive unit / servo amplifier |
| Series / Voltage Class | MDS-D Series, 200V class |
| Controlled Axes | 2 axes: L and M |
| Nominal Maximum Current | 160A / 160A peak |
| Rated Output | 3-phase 155VAC; 29.6A / 29.6A |
| Main DC Input | 270–311VDC; rated 60A total (30A / 30A) |
| Control Power | 200VAC at 50Hz or 200–230VAC at 60Hz |
| Control / Cooling | Sine-wave PWM current control; forced-air cooling |
| Braking / Protection | Regenerative and built-in dynamic braking; IP20 overall / IP00 terminal block |
| Condition | New, refurbished, or used; supplied as selected |
| Handling | Normally within 1 business day for in-stock units |
| Shipping / ETA | DHL, UPS, or FedEx worldwide; typically 2–6 business days after dispatch |
| Warranty | 1 year for new/refurbished; 3 months for used units (about 90% new) |
| Service / Packing | 100% tested, free technical support, anti-static and shock-resistant packing |
160A/160A Dual-Axis Servo Control
The two “160” ratings identify the peak-current class of the L and M channels. They do not mean two fixed 160kW outputs. Actual motor power depends on the matched motor, axis assignment, machine load, parameters, and power-supply configuration.
Compatibility and Exact Model Matching

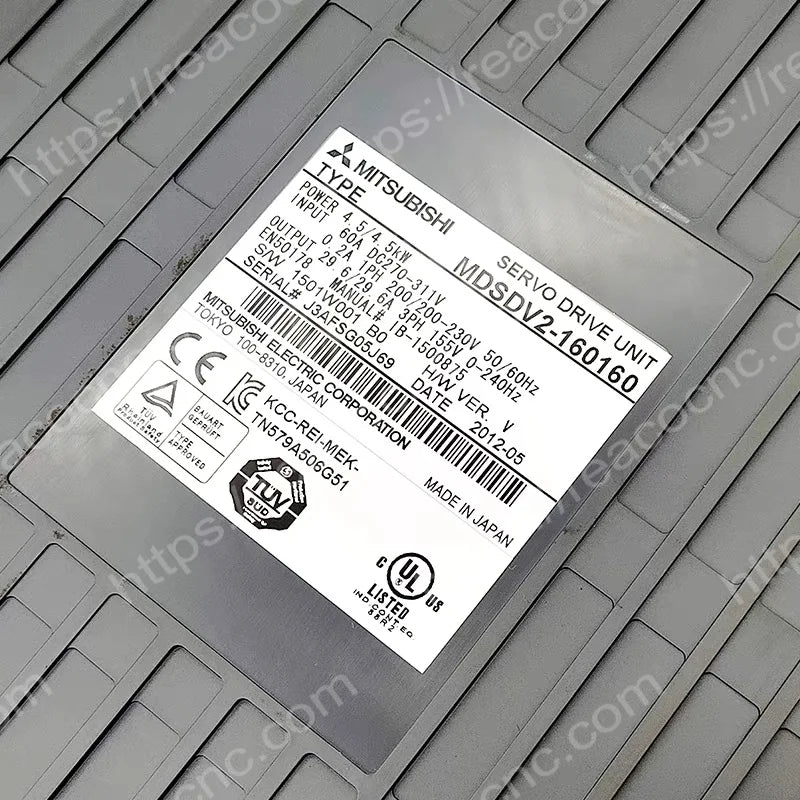

Confirm the complete MDS-D-V2-160160 nameplate, motor models, L/M axis assignments, DC power supply, software version, connectors, and machine parameters. MDS-D-V2-160160W, MDS-D2-V2-160160, and MDS-D-V2-16080 are different variants, not automatic replacements.
Testing and Safe Installation
REACO CNC checks the label, power and control circuits, cooling fan, optical communication, alarm status, and dual-axis outputs on a compatible test setup. Installation must be performed by qualified personnel. After disconnecting power, wait at least 15 minutes, confirm the CHARGE lamp is off, and verify DC-bus voltage before servicing.
REACO CNC Supply and Support
Related units are listed in the Mitsubishi CNC servo drive collection. Component-level service is covered by REACO's Mitsubishi CNC drive repair service.
