Mitsubishi MDS-EJ-V1-30 30A One-Axis CNC Servo Drive
$992.00 USD
Shipping:
Delivery: Estimated 2- 6 business days delivery. See details
Returns: 14 days returns. See details

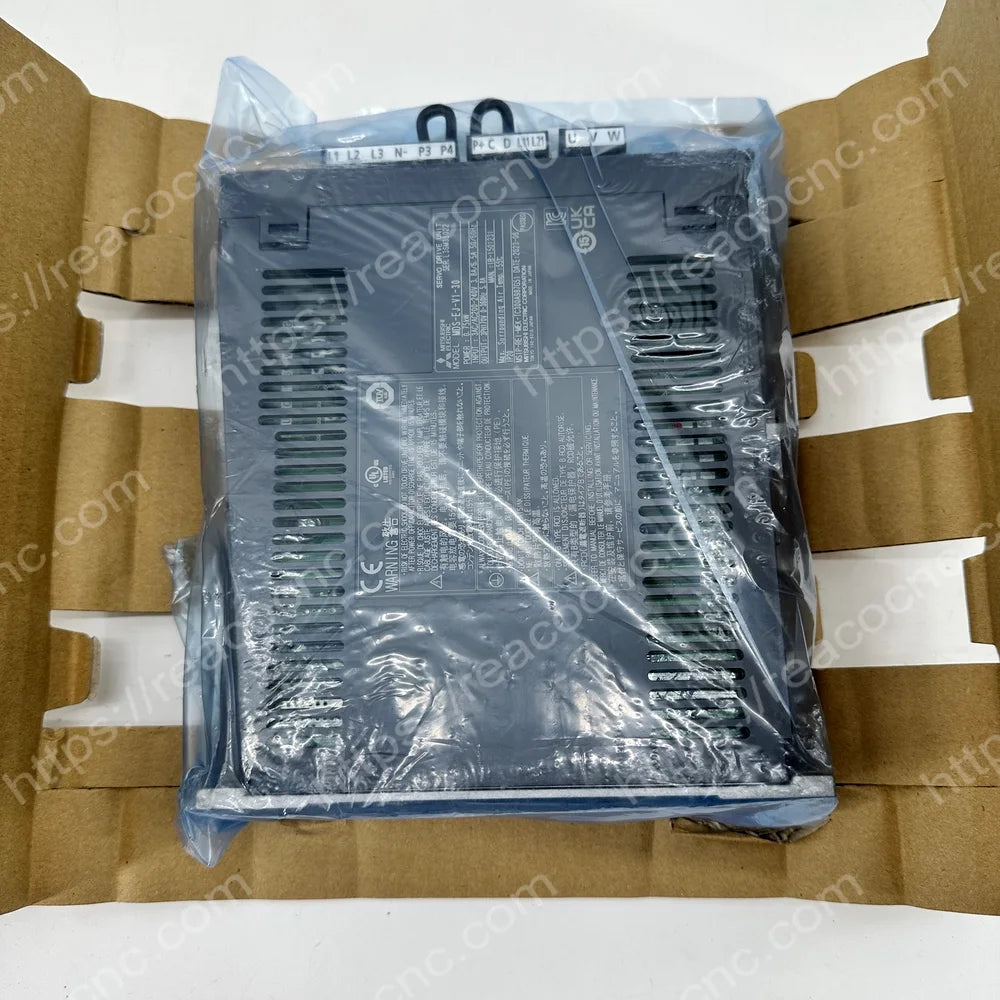

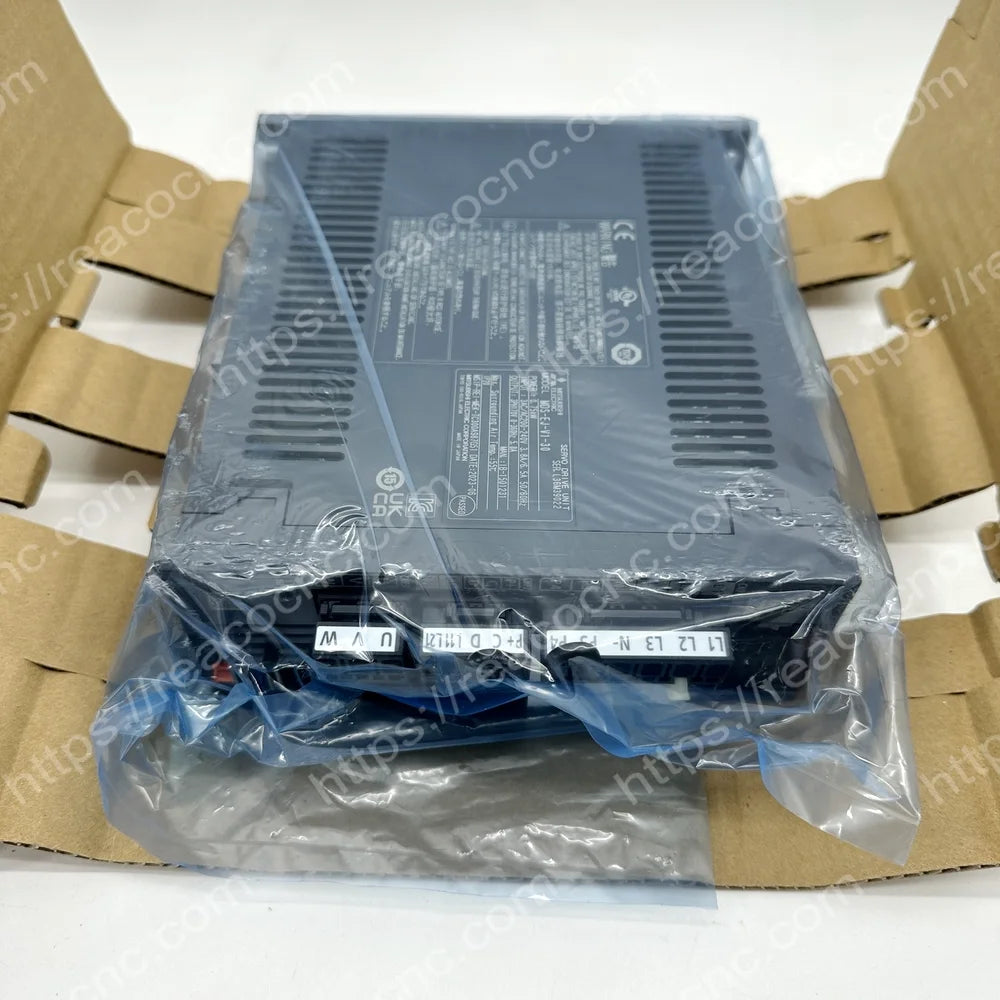

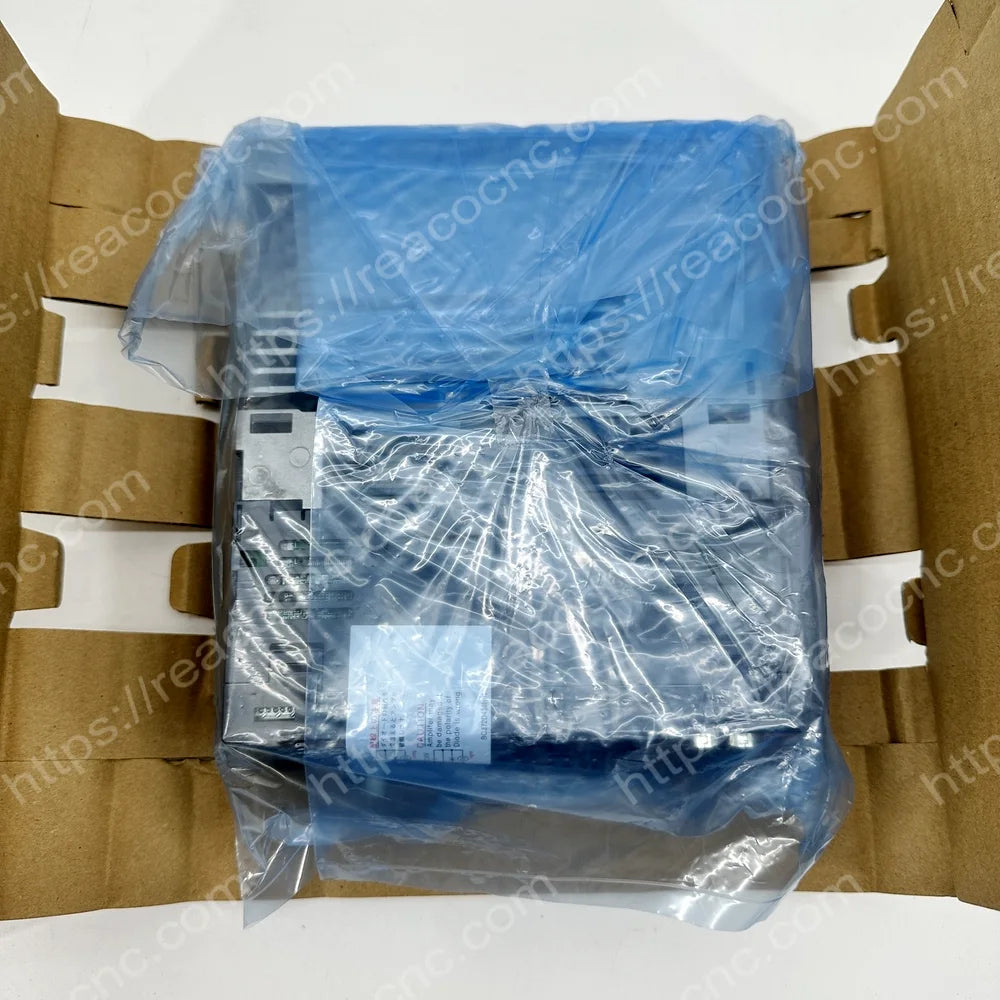

Mitsubishi MDS-EJ-V1-30 30A One-Axis CNC Servo Drive
The Mitsubishi MDS-EJ-V1-30 is a compact MDS-EJ Series 200V-class, one-axis CNC servo drive for compatible Mitsubishi CNC systems. Its integrated converter and servo amplifier use sine-wave PWM control for precise axis motion.
For this exact model, “30” means the 30A nominal maximum (peak) current class, not a 3.0kW rating. Official ratings are 170VAC, 5.8A output with single- or three-phase 200–240VAC main input.
MDS-EJ-V1-30 Product Information
| Brand | Mitsubishi Electric |
| Model / MPN | MDS-EJ-V1-30 |
| Series / Type | MDS-EJ / one-axis CNC servo drive |
| Voltage Class | 200V class |
| Peak Current | 30A nominal maximum |
| Rated Output | 170VAC, 5.8A |
| Main Input | Single- or three-phase 200–240VAC, 50/60Hz; 3.8A rated with three-phase input |
| Control Power | Single-phase 200–240VAC, 50/60Hz; 0.2A maximum |
| Control / Braking | Sine-wave PWM; regenerative braking and built-in dynamic brake |
| Regenerative Resistor | Built-in 20W, 40Ω |
| Protection / Cooling | IP20 / forced-air cooling |
| Width / Mass | 60mm / approximately 1.4kg |
| Condition | New, refurbished, or used 90% new; subject to variant and stock |
| Handling | Normally 1–3 business days |
| Shipping / ETA | DHL, UPS, or FedEx worldwide; typically 2–6 business days |
| Warranty | 1 year for new/refurbished; 3 months for used 90% new |
| Service / Packing | 100% tested, test video, free technical support; anti-static reinforced carton |
Integrated Servo Drive Functions
The MDS-EJ-V1-30 uses a converter with a resistor-regeneration circuit. Its regenerative and built-in dynamic braking, two-channel 0–5V analog output, and forced-air cooling support dependable motion control. Rated heat generation is approximately 50W; operating ambient temperature is 0–55°C.
Motor and Replacement Compatibility
Servo drives are not universal. Confirm the full MDS-EJ-V1-30 nameplate, axis count, supply voltage, motor and encoder combination, connectors, CNC software, parameters, and machine configuration. Do not substitute MDS-EJ-V1-15, MDS-EJ-V1-40, or the two-axis MDS-EJ-V2-30 because the housings or current codes appear similar.
Testing and Installation Notes
REACO CNC checks the label, housing, connectors, power stage, fan, communication, alarms, braking circuit, and servo operation before shipment. Back up CNC and servo parameters before replacement. Qualified personnel should isolate power and allow the DC bus to discharge before installation.
Related resources: Mitsubishi servo drives and Mitsubishi CNC drive repair service.
