Name: FANUC A06B-0227-B000 αiF 8/3000 AC Servo Motor
Brand: FANUC
Price: 1055.0 USD
Availability: OutOfStock

FANUC A06B-0227-B000 αiF 8/3000 AC Servo Motor

Disponibile

• Testing Video Provided

$463.00 USD

Spedizione:

Consegna: Consegna stimata in 2-6 giorni lavorativi. Vedi dettagli

Resi: 14 giorni per i resi. Vedi dettagli

Tutte le parti sono coperte dalla garanzia REACO CNC

Tutte le parti sono state testate sotto carico

Risposta rapida, spedizione globale, spedizione rapida disponibile

Supporto tecnico gratuito

Oltre 100.000 pezzi in magazzino e pronti per la consegna

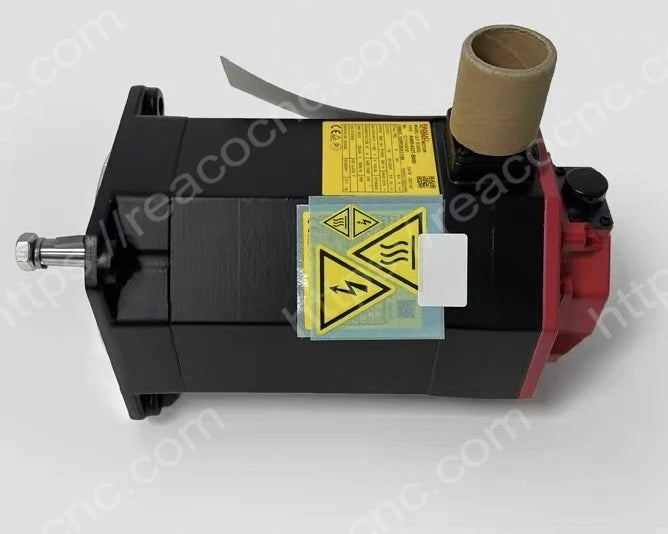

FANUC A06B-0227-B000 is an αiF 8/3000 AC servo motor designed for precision feed-axis motion in compatible FANUC CNC machine tools and industrial automation systems. It delivers a rated output of 1.6 kW, 8 N·m stall torque and a maximum speed of 3000 min⁻¹.

This exact B000 configuration has a tapered output shaft, no holding brake and an αiA1000 absolute pulse coder. The installed pulse coder is commonly identified by auxiliary reference A860-2000-T301; the complete motor nameplate A06B-0227-B000 remains the primary replacement reference.

A06B-0227-B000 Specifications

Brand	FANUC
Full Model / MPN	A06B-0227-B000
Motor Model	αiF 8/3000
Product Type	Three-phase AC servo motor
Rated Output	1.6 kW / approximately 2.1 HP
Rated / Maximum Speed	3000 min⁻¹
Stall Torque	8.0 N·m
Maximum Torque	29 N·m

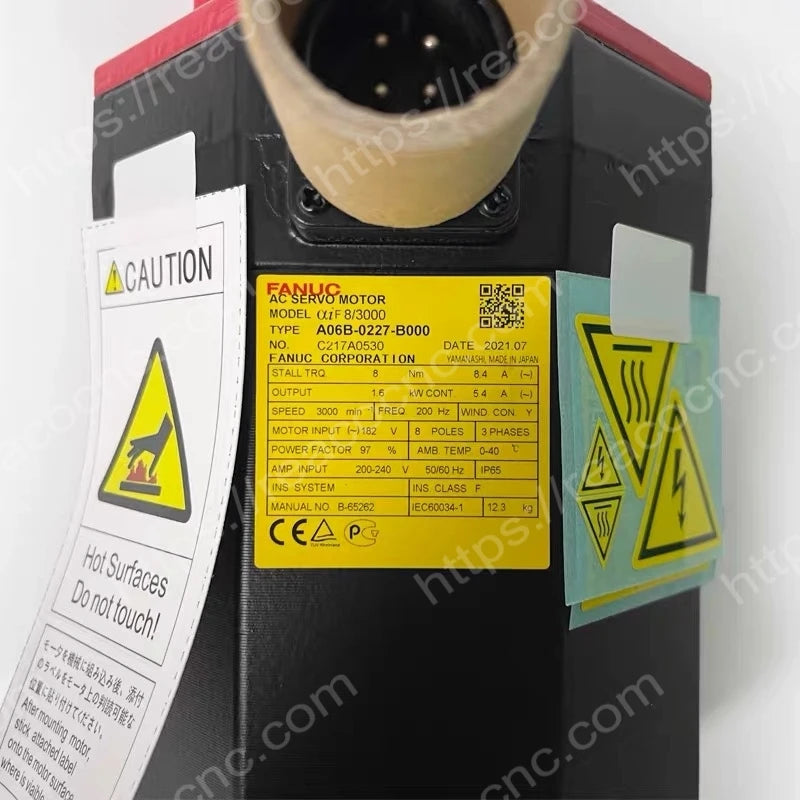

Motor Rating	Three-phase 182 VAC, 5.4 A, 200 Hz
Stall Current	8.4 A RMS

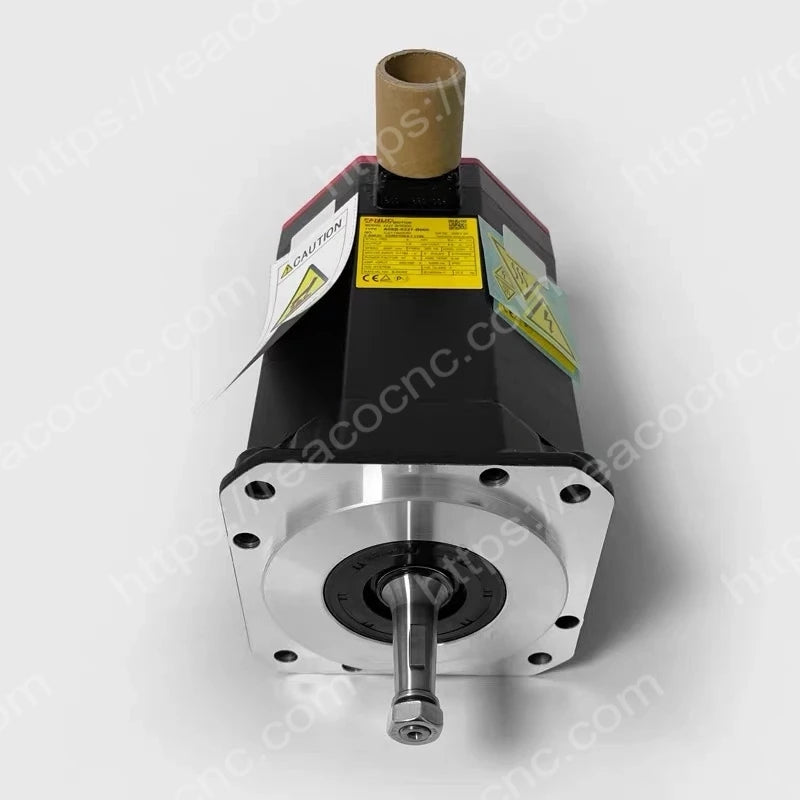

Shaft / Brake	φ16 tapered shaft / no brake
Feedback	αiA1000 absolute pulse coder, 1,000,000 divisions/rev
Protection / Cooling	IP65 / naturally cooled, fully enclosed
Condition	New, refurbished, or used 90% new; subject to stock
Handling	Normally 1–3 business days
Shipping / ETA	DHL, UPS, or FedEx worldwide; typically 2–6 business days
Warranty	1 year for new/refurbished; 3 months for used 90% new
Service / Packing	100% tested, test video and free technical support; reinforced protective packing

αiF 8/3000 Motion Performance

The A06B-0227-B000 provides closed-loop speed and position control for CNC feed axes. Its αiA1000 absolute pulse coder records position feedback with 1,000,000 divisions per revolution and supports absolute-position retention when the CNC or servo amplifier has a correctly maintained backup battery.

Standard Non-Brake Configuration

A06B-0227-B000 does not contain a holding brake. It should not be substituted for brake-equipped A06B-0227 configurations on vertical or gravity-loaded axes. Confirm the original shaft, brake requirement, encoder type and connector arrangement before ordering.

Replacement and Installation Checks

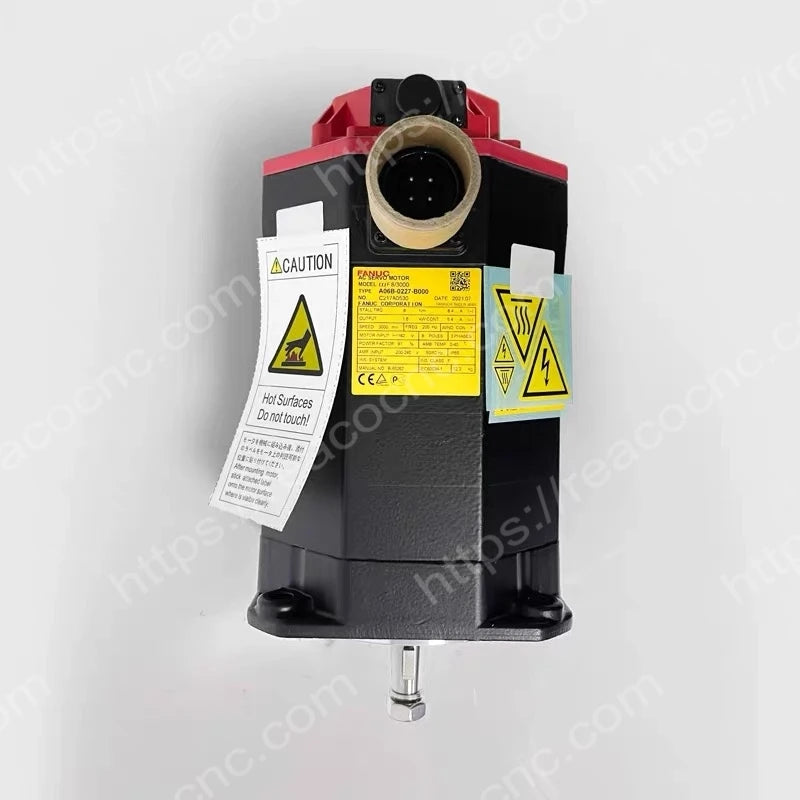

Match the complete A06B-0227-B000 nameplate and do not assume that B001, B002, B100, B300 or #0100 versions are identical. Check the servo amplifier, parameters, mechanical coupling and feedback cable. Installation and axis setup should be performed by qualified CNC personnel.
