Name: FANUC A06B-0257-B110 αiF 40/3000 9kW Servo Motor
Brand: FANUC
Price: 4132.0 USD
Availability: OutOfStock

FANUC A06B-0257-B110 αiF 40/3000 9kW Servo Motor

Disponibile

• Testing Video Provided

$2,150.00 USD

Spedizione:

Consegna: Consegna stimata in 2-6 giorni lavorativi. Vedi dettagli

Resi: 14 giorni per i resi. Vedi dettagli

Tutte le parti sono coperte dalla garanzia REACO CNC

Tutte le parti sono state testate sotto carico

Risposta rapida, spedizione globale, spedizione rapida disponibile

Supporto tecnico gratuito

Oltre 100.000 pezzi in magazzino e pronti per la consegna

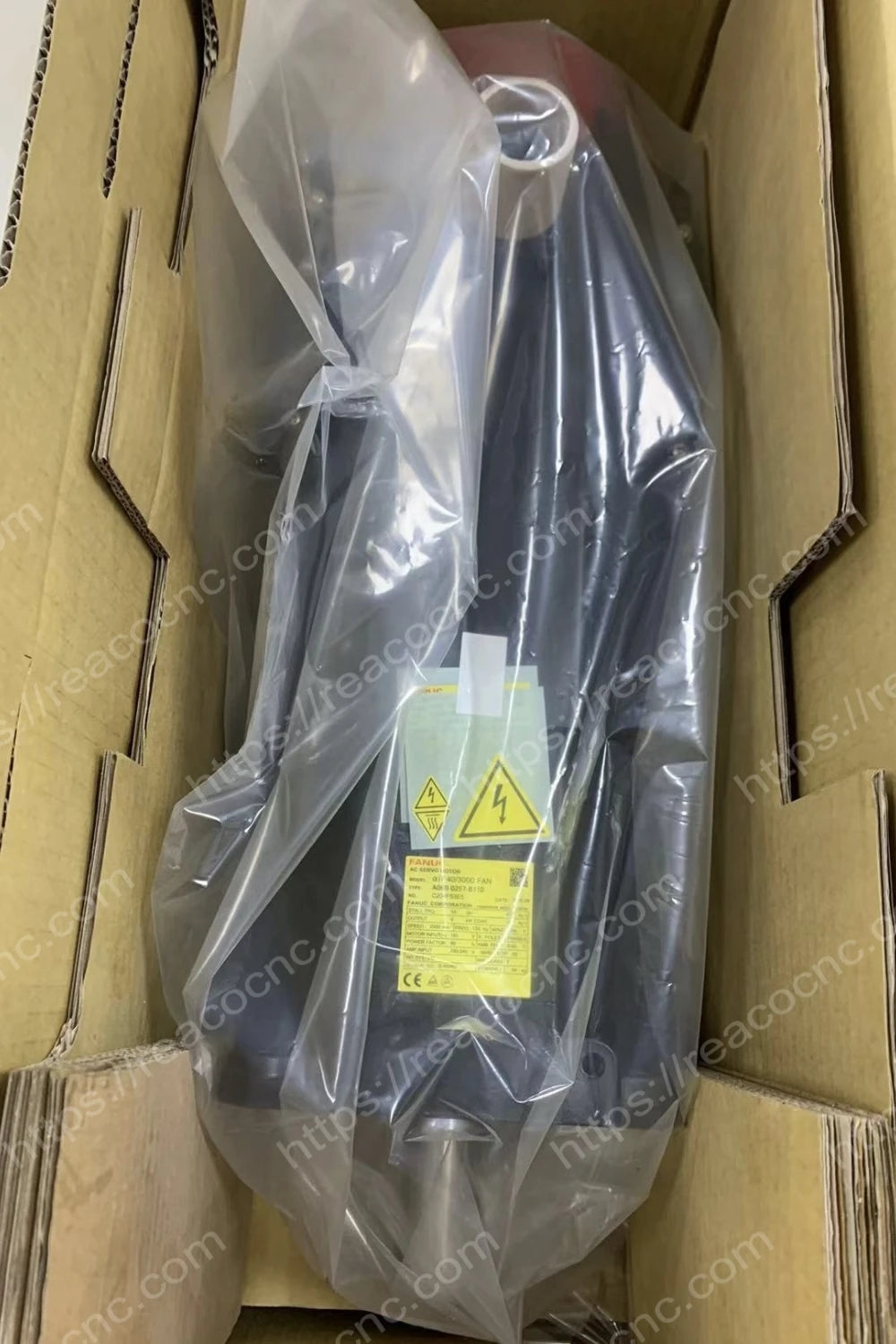

FANUC A06B-0257-B110 is a fan-cooled αiF 40/3000 AC servo motor for high-torque feed-axis applications in compatible FANUC CNC machine tools. It provides 9.0 kW rated output, 53 N·m stall torque and a maximum speed of 3000 min⁻¹.

The exact B110 configuration has a straight shaft, external cooling fan, no holding brake and an αiA1000 absolute pulse coder. It belongs to the FANUC 200V-class αiF motor family and should be operated only with the specified servo amplifier and parameters.

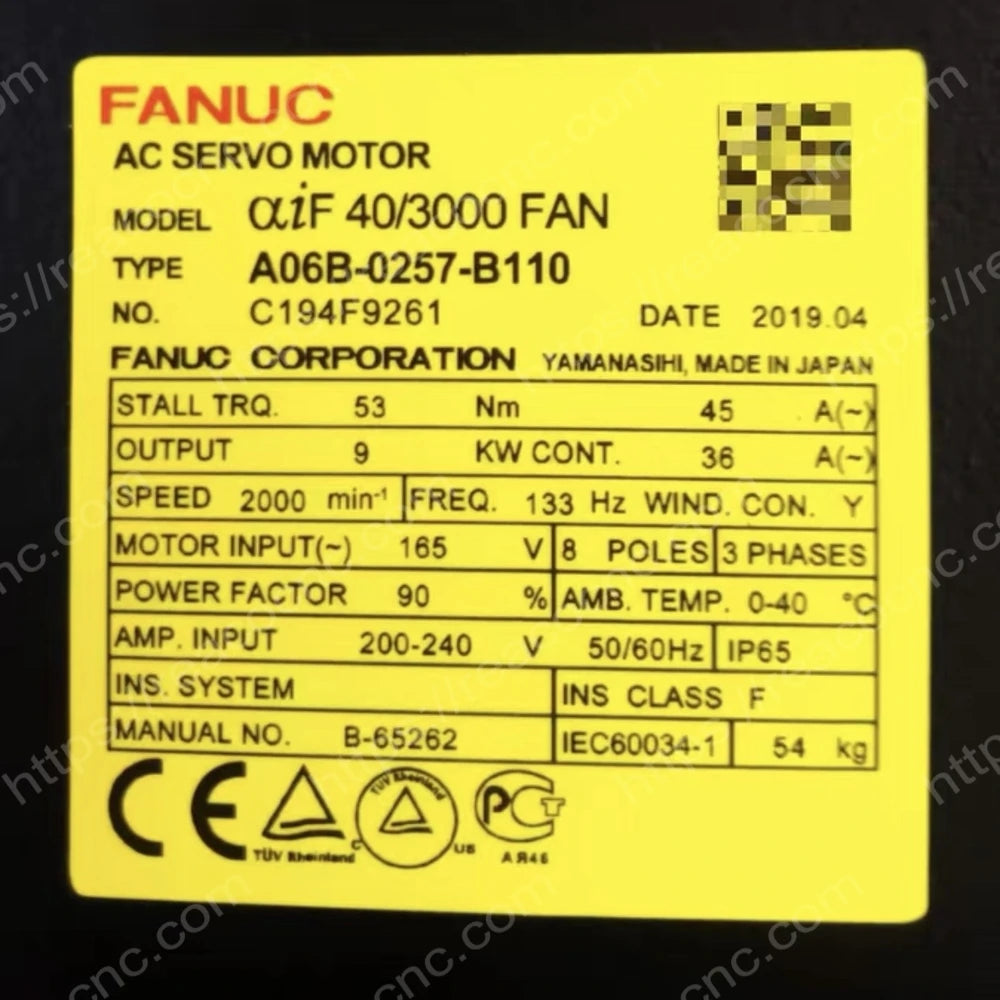

A06B-0257-B110 Specifications

Brand	FANUC
Full Model / MPN	A06B-0257-B110
Motor Model	αiF 40/3000 with fan
Product Type	Three-phase AC servo motor
Voltage Class	200V-class FANUC servo system
Motor Rating	Approximately 165 VAC, 36 A
Rated Output	9.0 kW / approximately 12 HP
Rated Speed	2000 min⁻¹
Maximum Speed	3000 min⁻¹
Stall Torque / Current	53 N·m / 45 A RMS
Maximum Torque	130 N·m
Shaft / Brake	Straight shaft without keyway / no brake

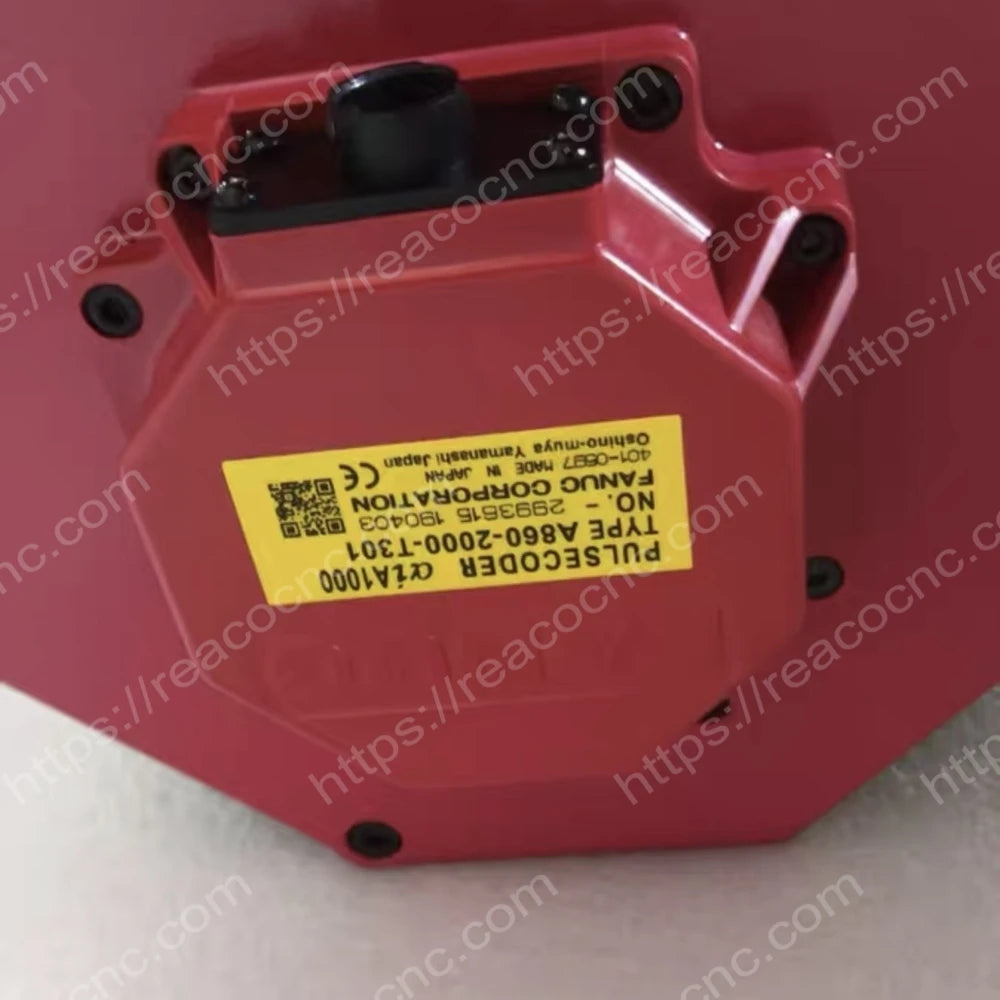

Feedback	αiA1000 absolute pulse coder, 1,000,000 divisions/rev
Cooling	External forced-air cooling fan
Protection	IP65 motor body; fan and fan connectors excluded
Approximate Mass	54 kg
Condition	New, refurbished, or used 90% new; subject to stock
Handling	Normally 1–3 business days
Shipping / ETA	DHL, UPS, or FedEx worldwide; typically 2–6 business days
Warranty	1 year for new/refurbished; 3 months for used 90% new
Service / Packing	100% tested, test video and free technical support; reinforced export packing

High-Torque Fan-Cooled Performance

Compared with the naturally cooled A06B-0257 configuration, the fan-cooled version increases rated output and continuous torque capability. The αiA1000 absolute pulse coder supplies high-resolution position and speed feedback for accurate CNC axis control.

Cooling Fan and Shaft Configuration

The external fan is essential to the rated performance of A06B-0257-B110. Confirm fan voltage, connector arrangement, airflow direction and cabinet clearance. This model has a straight shaft without a keyway and does not contain a holding brake.

Replacement and Installation Checks

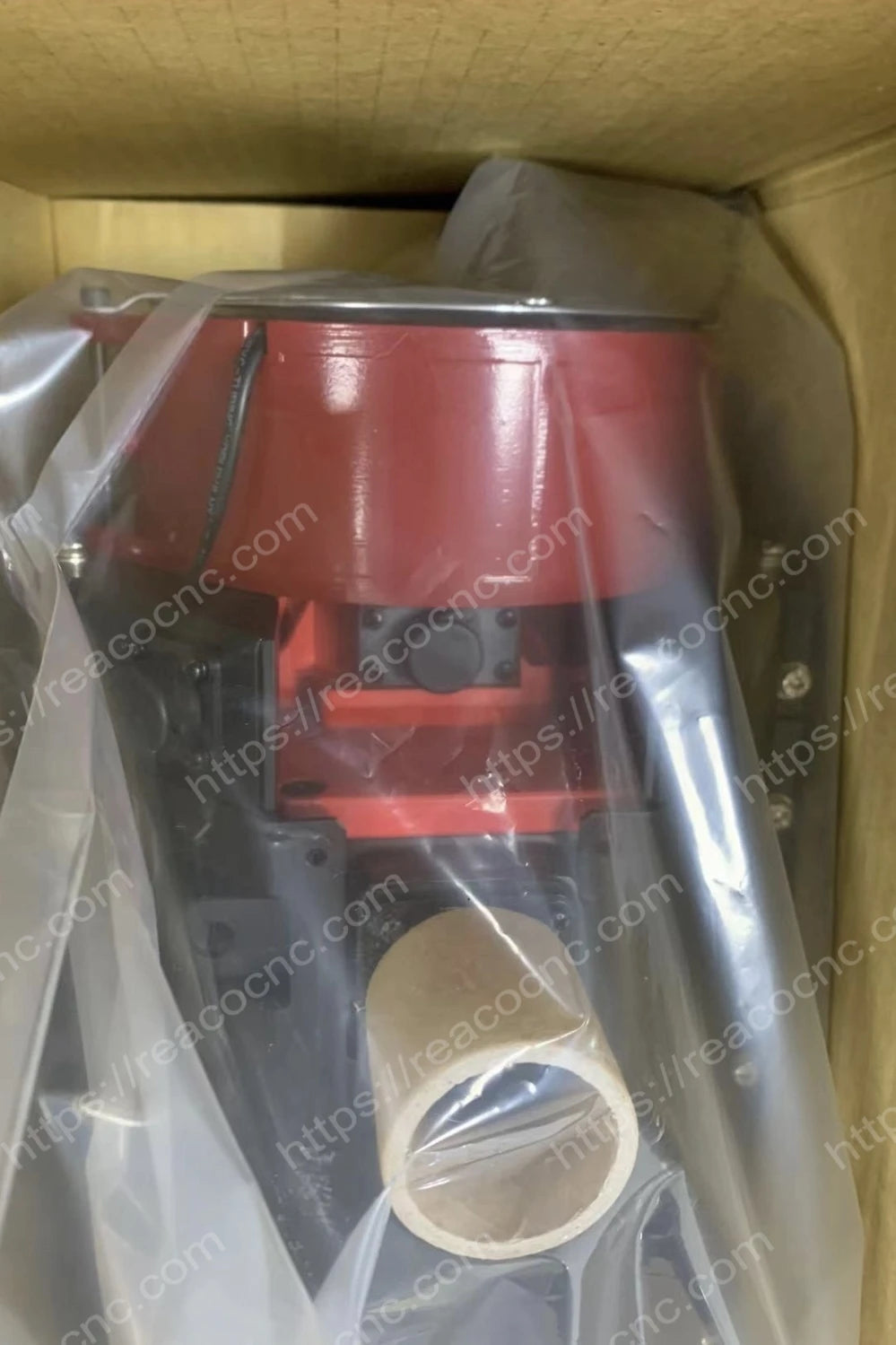

Match the complete A06B-0257-B110 nameplate, shaft, fan, pulse coder and connectors. Do not substitute B100, B110#0100, B210 or brake-equipped versions without engineering confirmation. Verify the amplifier capacity, motor parameters, coupling and axis load before startup.
