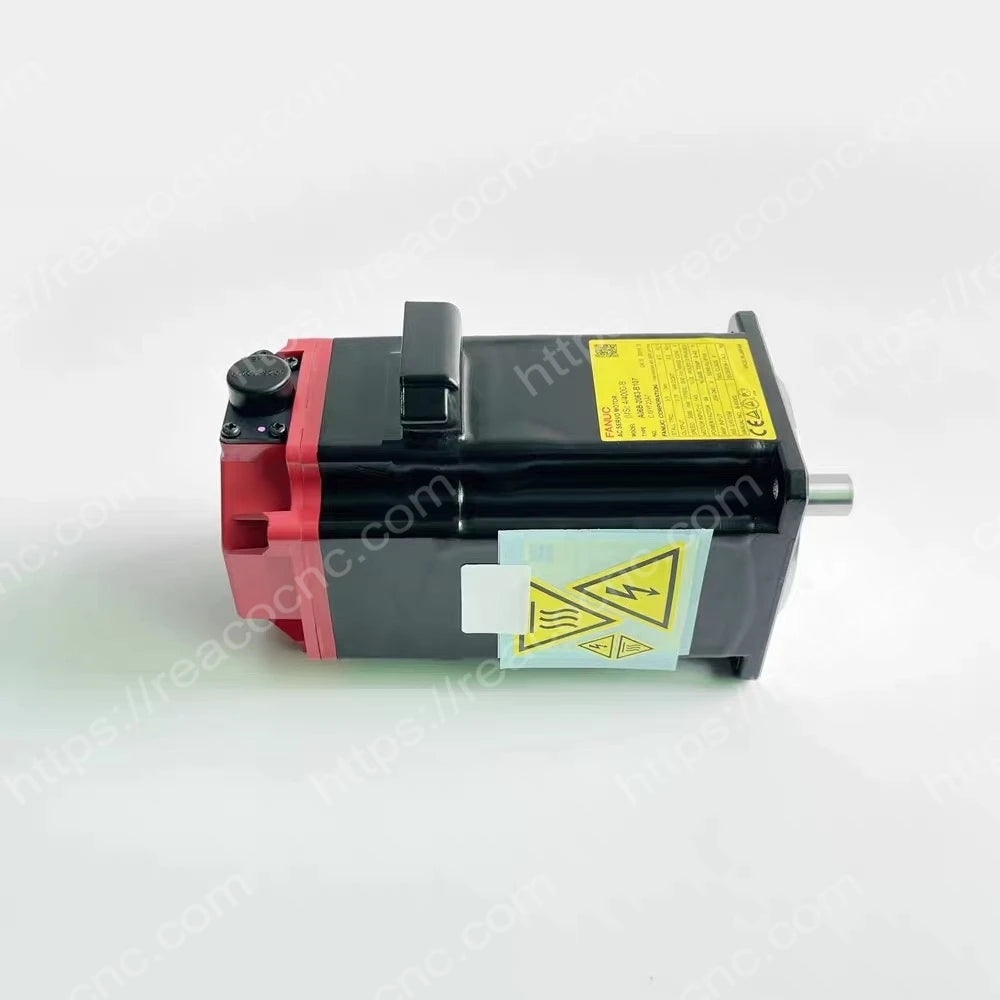

Name: FANUC A06B-2063-B107 βiSc 4/4000-B AC Servo Motor
Brand: FANUC
Price: 744.0 USD
Availability: InStock

FANUC A06B-2063-B107 βiSc 4/4000-B AC Servo Motor

Disponibile

• Testing Video Provided

$744.00 USD

Spedizione:

Consegna: Consegna stimata in 2-6 giorni lavorativi. Vedi dettagli

Resi: 14 giorni per i resi. Vedi dettagli

Tutte le parti sono coperte dalla garanzia REACO CNC

Tutte le parti sono state testate sotto carico

Risposta rapida, spedizione globale, spedizione rapida disponibile

Supporto tecnico gratuito

Oltre 100.000 pezzi in magazzino e pronti per la consegna

The FANUC A06B-2063-B107 is a βiSc 4/4000-B AC servo motor for CNC feed-axis and industrial positioning applications. It provides 0.75kW continuous output, a maximum speed of 4000rpm, a straight smooth shaft and βiA1000 absolute position feedback.

A06B2063B107 is the compact search form of the same part number. Use the complete hyphenated nameplate model—and any suffix printed after it—as the primary replacement reference.

A06B-2063-B107 Product Specifications

Brand	FANUC
Model / MPN	A06B-2063-B107
Motor Model	βiSc 4/4000-B AC servo motor
Rated Output	0.75kW continuous / 1HP
Rated / Maximum Speed	3000rpm / 4000rpm
Stall / Maximum Torque	3.5N·m / 10N·m
Shaft Configuration	Straight smooth shaft without keyway
Brake	No holding brake in the B107 configuration

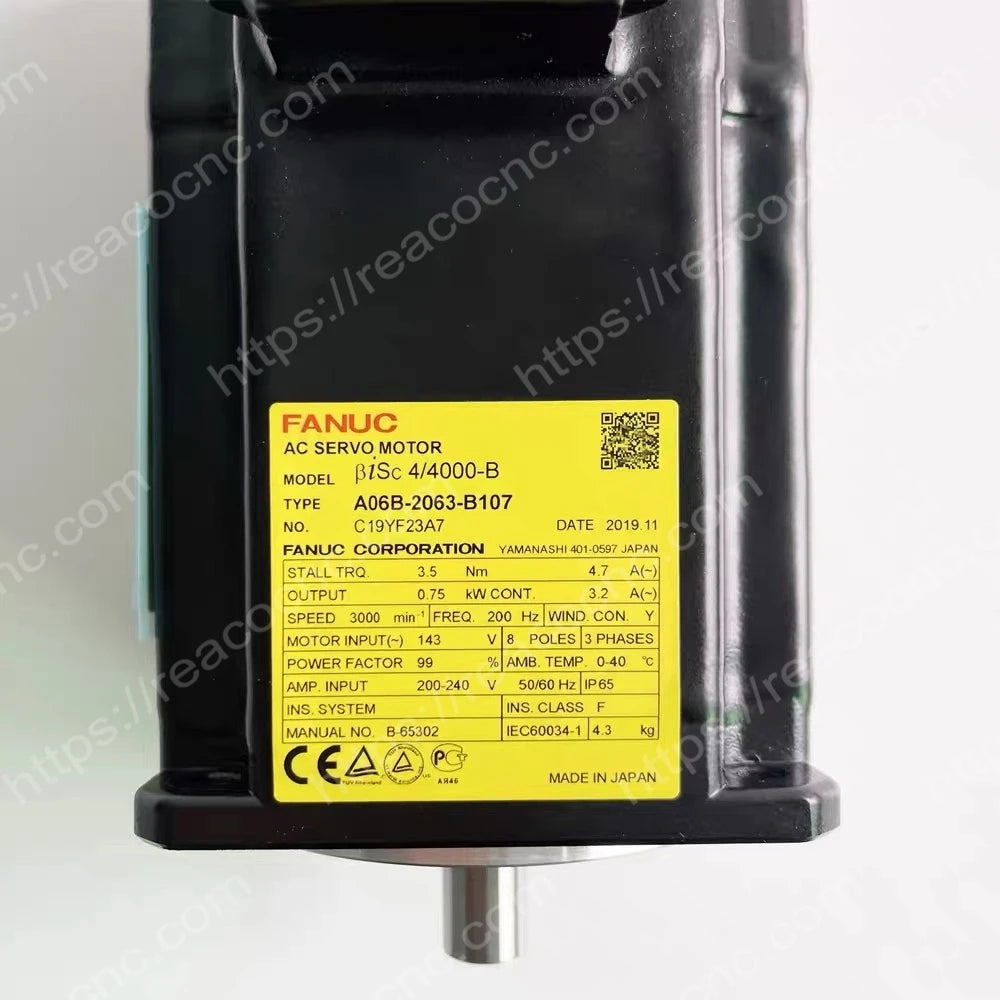

Feedback	βiA1000 absolute pulse coder, 1,000,000 divisions/revolution
Protection Suffix	Confirm the full nameplate; #0100 identifies the IP67 version
Condition	New, refurbished, or used 90% new; subject to stock
Handling	Normally 1–3 business days
Shipping / ETA	DHL, UPS, or FedEx worldwide; typically 2–6 business days
Warranty	1 year for new/refurbished; 3 months for used 90% new
Service / Packing	100% tested, test video and technical support; reinforced protective packing

βiSc Servo and Position Feedback

The βiSc 4/4000-B converts commands from a compatible FANUC servo amplifier into controlled axis motion. Its βiA1000 absolute pulse coder supplies high-resolution position feedback so the CNC can monitor motor position, speed and operating status.

Exact-Model and Suffix Checks

The B107 configuration uses a straight shaft without a keyway, no brake and a βiA1000 coder. Do not substitute B007, B207, B307 or B407 solely because the base A06B-2063 motor number matches; shaft and brake configurations differ. If the physical label includes #0100, retain that suffix when ordering because it specifies the IP67 version.

Testing and Installation Notes

REACO CNC checks the full label, shaft, flange, connectors, insulation, windings, pulse-coder feedback and running condition as applicable. Before replacement, verify the complete suffix, mounting dimensions, power and feedback connectors, CNC parameters and compatible FANUC amplifier.
