Name: FANUC A16B-1210-0510 0/10 CNC Control Power Supply Unit
Brand: FANUC
Price: 193.0 USD
Availability: InStock

FANUC A16B-1210-0510 0/10 CNC control power supply main view

FANUC A16B-1210-0510 0/10 CNC Control Power Supply Unit

Disponibile

• Testing Video Provided

$193.00 USD

Spedizione:

Consegna: Consegna stimata in 2-6 giorni lavorativi. Vedi dettagli

Resi: 14 giorni per i resi. Vedi dettagli

Tutte le parti sono coperte dalla garanzia REACO CNC

Tutte le parti sono state testate sotto carico

Risposta rapida, spedizione globale, spedizione rapida disponibile

Supporto tecnico gratuito

Oltre 100.000 pezzi in magazzino e pronti per la consegna

FANUC A16B-1210-0510 is a legacy Power Supply Unit A for compatible FANUC Series 0 and Series 10 CNC controls. It mounts to the master PCB and supplies regulated DC power to the CNC control, display and interface circuits.

FANUC documentation specifies a selectable 200/220/230/240VAC input and +5V, +15V, -15V, +24V and +24E outputs. ENABLE and PA-PB signals monitor power status and abnormal outputs.

A16B-1210-0510 Product Information

Brand	FANUC
Model / MPN	A16B-1210-0510
Product Type	Power Supply Unit A / CNC control power supply
Control Family	Compatible FANUC Series 0 and Series 10 configurations
AC Input	200 / 220 / 230 / 240VAC through CP11
DC Outputs	+5V, +15V, -15V, +24V and +24E
Main Output	CP12 to the master printed-circuit board
Auxiliary Outputs	CP14 for +24E; CP15 for compatible CRT/MDI units
Status Signals	ENABLE and PA-PB power-monitoring outputs
Condition	New, refurbished, or used 90% new; subject to stock
Handling	Normally 1–3 business days
Shipping / ETA	DHL, UPS, or FedEx worldwide; typically 2–6 business days
Warranty	1 year for new/refurbished; 3 months for used 90% new
Service / Packing	100% tested, test video and technical support; anti-static reinforced packing

Multi-Voltage CNC Power Distribution

The A16B-1210-0510 converts AC input into the regulated rails used by the CNC electronics. ENABLE remains high while all DC outputs are normal and changes state when a fault is detected. The PA-PB contact supports power holding and abnormal-output indication in the configured control.

Compatibility and Nameplate Checks

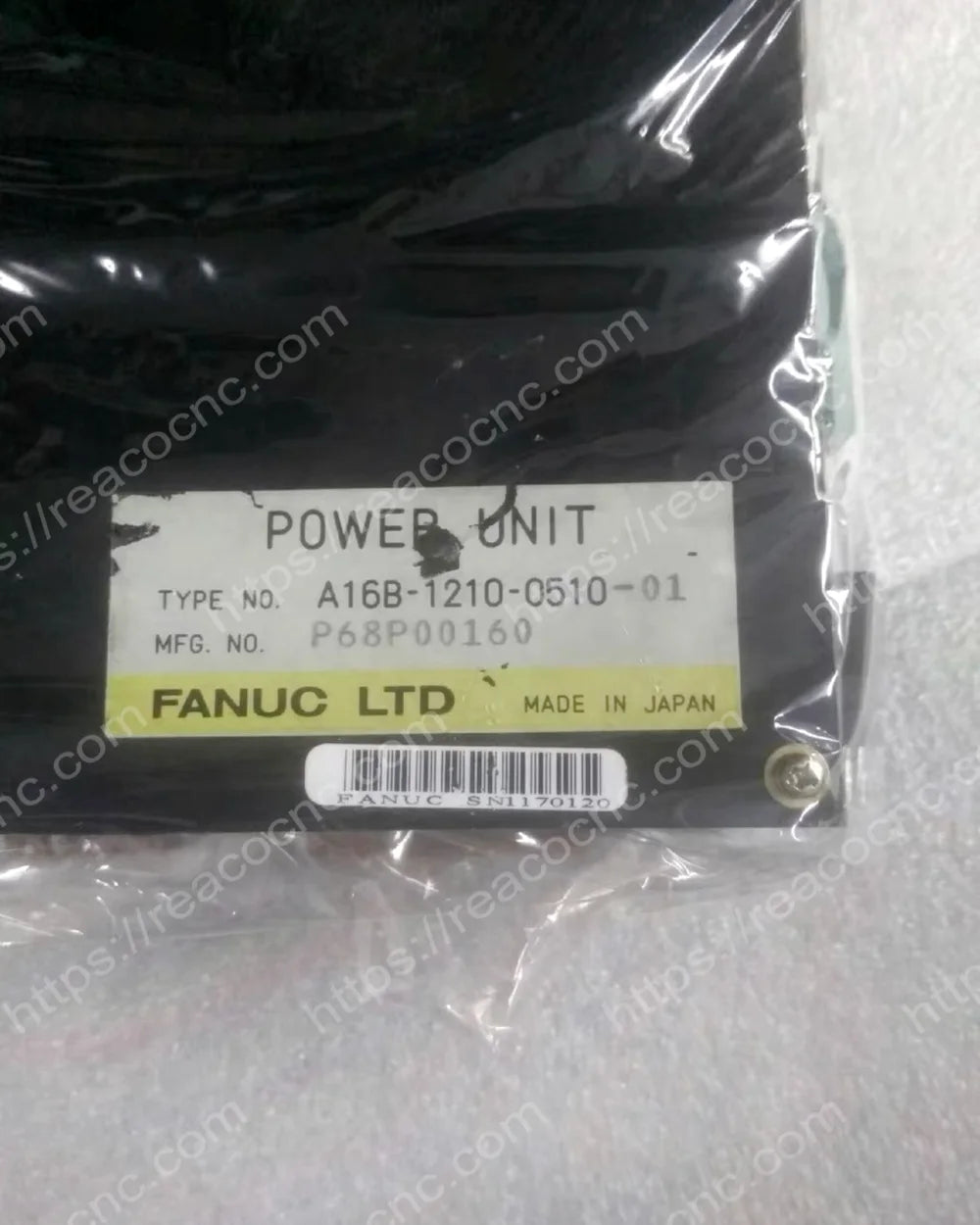

Confirm the complete marking, including suffixes or revisions after A16B-1210-0510, plus the master-board number, CNC series, input-unit arrangement and connectors. Do not substitute A16B-1211-0850, A16B-1210-0511 or another similar supply solely because its housing appears alike.

Testing and Installation Notes

REACO CNC checks the label, housing, fuses, capacitors, connectors, AC input, every DC output rail, ENABLE signal and stability under load. After replacement, qualified personnel should verify the documented 10.00V reference test point. Isolate incoming power, discharge stored energy and use ESD-safe handling.
