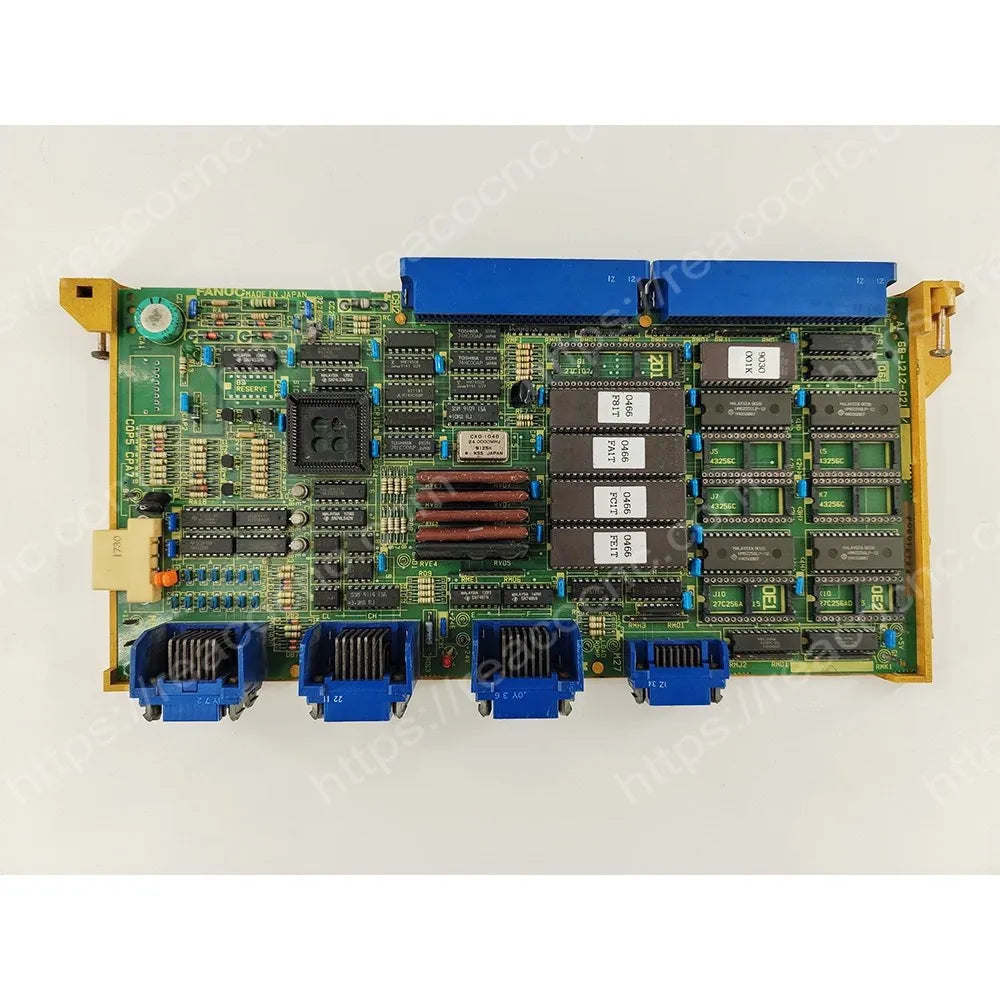

FANUC A16B-1212-0210 Series 0-C Analog Spindle Memory PCB

FANUC A16B-1212-0210 Product Overview

The FANUC A16B-1212-0210 is a CNC memory PCB used in compatible FANUC Series 0 Model C control configurations. FANUC maintenance documentation identifies it as a memory card associated with an S-analog spindle interface.

Applications can include Series 0-MC and 0-TC controls, depending on the installed CNC hardware, software and machine-tool builder configuration. The complete board number, revision and fitted memory devices must be checked before replacement.

Memory Board Function

The A16B-1212-0210 works with the CNC master board and other control modules to support memory-related functions within the configured Series 0 control. It is not a complete CNC controller and should not be selected by appearance alone.

Software and Parameter Notice

Software and machine-specific data are not defined by the bare A16B part number. Before removing the original PCB, back up all available CNC parameters, diagnostics, programs, offsets, option information, pitch-error compensation data and PMC-related data.

After installation, the correct software or ROM devices may need to be retained or transferred, and the machine data may need to be reloaded. Confirm exactly which memory and software devices are included with the replacement board.

Compatibility Check

Compare the complete A16B-1212-0210 number, printed revision, CNC system model, master-board number, spindle-interface type and connector arrangement. The similar A16B-1212-0211 is a separate part number and must not be treated as an automatic substitute.

Tested Supply from REACO CNC

REACO CNC can supply the FANUC A16B-1212-0210 subject to current availability. The condition, revision and included memory devices will be confirmed before shipment. Browse our FANUC CNC circuit boards and FANUC CNC and robot parts for related components.

• 100% Function Tested Before Shipment
• Worldwide DHL / UPS / FedEx Shipping
• Contact REACO CNC for Current Stock, Price and Lead Time
