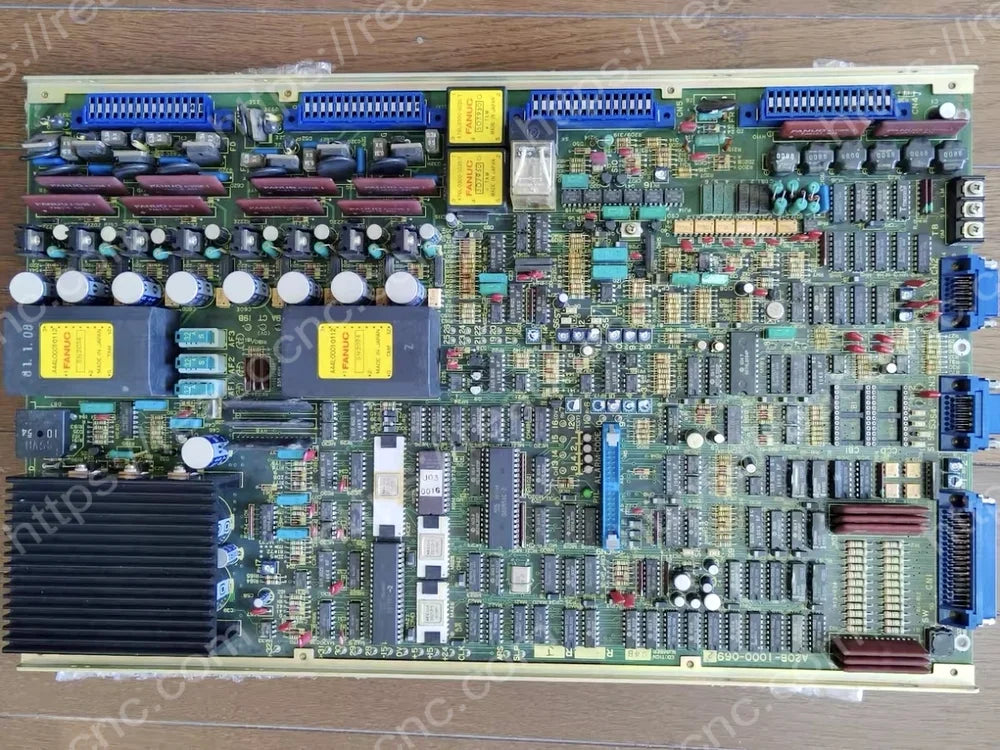

FANUC A20B-1000-0692 is an AC analog spindle drive control PCB used as the upper control board in selected FANUC A06B-6044-Hxxx spindle servo units. It manages analog command, control and monitoring functions between the CNC, drive power section and motor feedback system.

This listing is for the PCB, not a complete spindle drive. Confirm the full A06B-6044 drive number, board revision and machine configuration before replacement.

A20B-1000-0692 Product Information

Analog Spindle Control Function

The A20B-1000-0692 receives the configured analog spindle command and coordinates motor acceleration, deceleration, speed regulation and drive-status monitoring. It works with the amplifier power circuitry and spindle feedback components. Orientation and other functions depend on the option boards, parameters and machine design.

Drive, Motor and PCB Compatibility

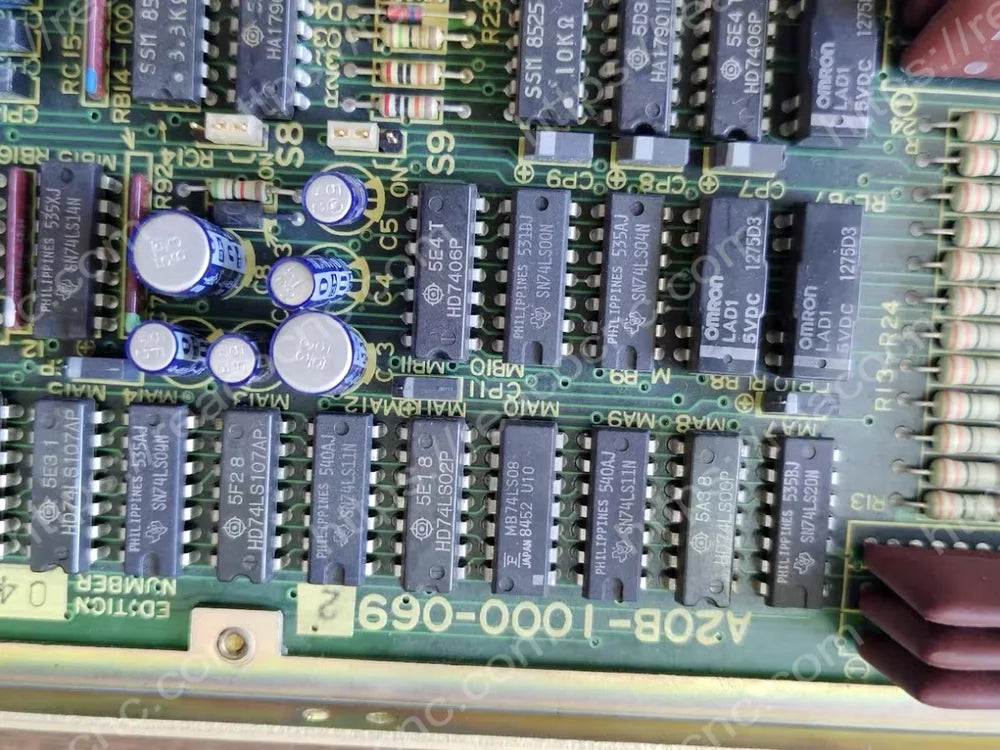

Match the complete A20B-1000-0692 number and revision. Verify the A06B-6044-Hxxx unit, spindle motor, lower power PCB, connectors, option boards and machine wiring. A20B-1000-0690, -0691, -0693 and other similar boards may support different drive or motor combinations and are not assumed interchangeable.

Testing and Installation Notes

REACO CNC checks the marking, components, connectors, analog command response, feedback, acceleration/deceleration and spindle operation on a compatible test system as applicable. Before removal, record connectors, jumpers, switches and adjustment settings. Qualified personnel should isolate power and allow the DC bus to discharge before installation.
