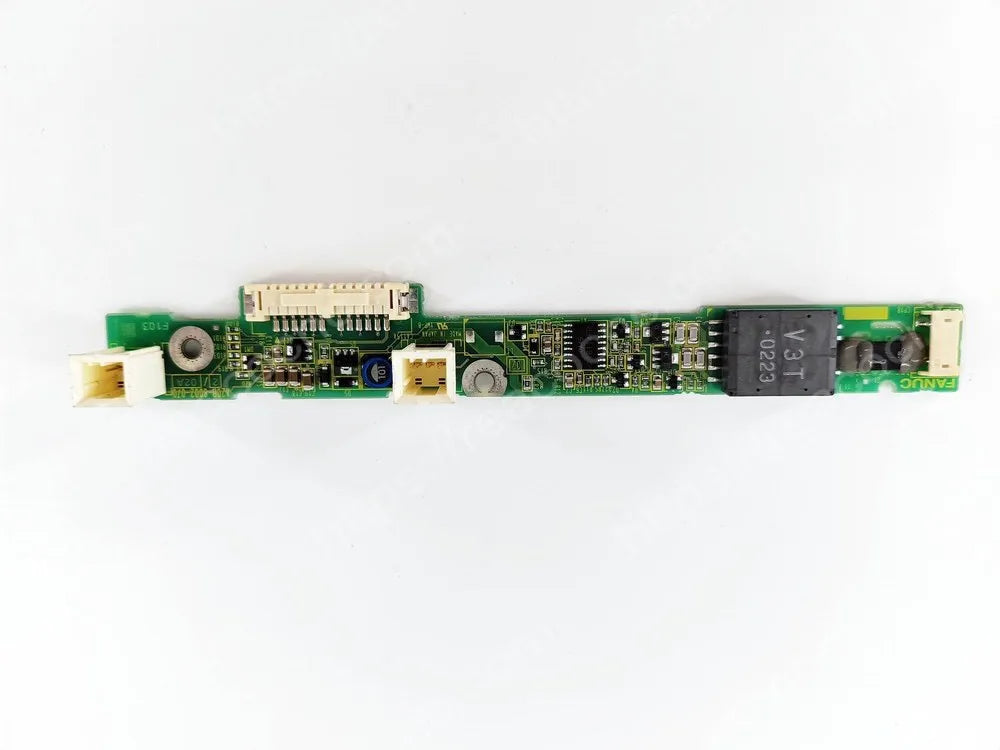

The FANUC A20B-8002-0702 is an LCD inverter PCB used with compatible FANUC Series 0i-D and 0i Mate-D CNC control systems.

FANUC maintenance documentation identifies this board as the inverter for a 10.4-inch color LCD. It forms part of the LCD display assembly and supports the electrical operation of the screen’s backlight system.

The A20B-8002-0702 may be used in applicable 0i-TD, 0i-MD, 0i Mate-TD, and 0i Mate-MD configurations equipped with the corresponding 10.4-inch color display. Compatibility still depends on the complete control-unit specification and display configuration.

This board is suitable for replacement when a confirmed inverter fault causes the LCD backlight to fail, become intermittent, remain unusually dim, or prevent the display from illuminating normally.

Because a dark or abnormal screen can also be caused by the LCD panel, main board, power supply, cable, or display-signal circuit, the fault should be properly diagnosed before replacing the inverter PCB.

• LCD inverter function tested before shipment

• In stock and prepared for prompt dispatch

• Worldwide DHL, UPS, and FedEx shipping

Product Details

• Brand: FANUC
• Part Number: A20B-8002-0702
• Alternative Format: A20B80020702
• Type: LCD Inverter PCB / Backlight Inverter Board
• Display Type: Color LCD
• Display Size: 10.4 Inch
• Product Series: A20B-8002
• Referenced Control Family: FANUC Series 0i-D / 0i Mate-D
• Referenced Models: 0i-TD / 0i-MD / 0i Mate-TD / 0i Mate-MD
• Application: FANUC CNC Display Systems
• Function: LCD backlight inverter operation
• Category: FANUC Display PCB / CNC LCD Inverter Board

Compatibility Note

Before ordering the A20B-8002-0702, please verify:

• Complete FANUC part number
• 10.4-inch color LCD configuration
• CNC control model and basic-unit specification

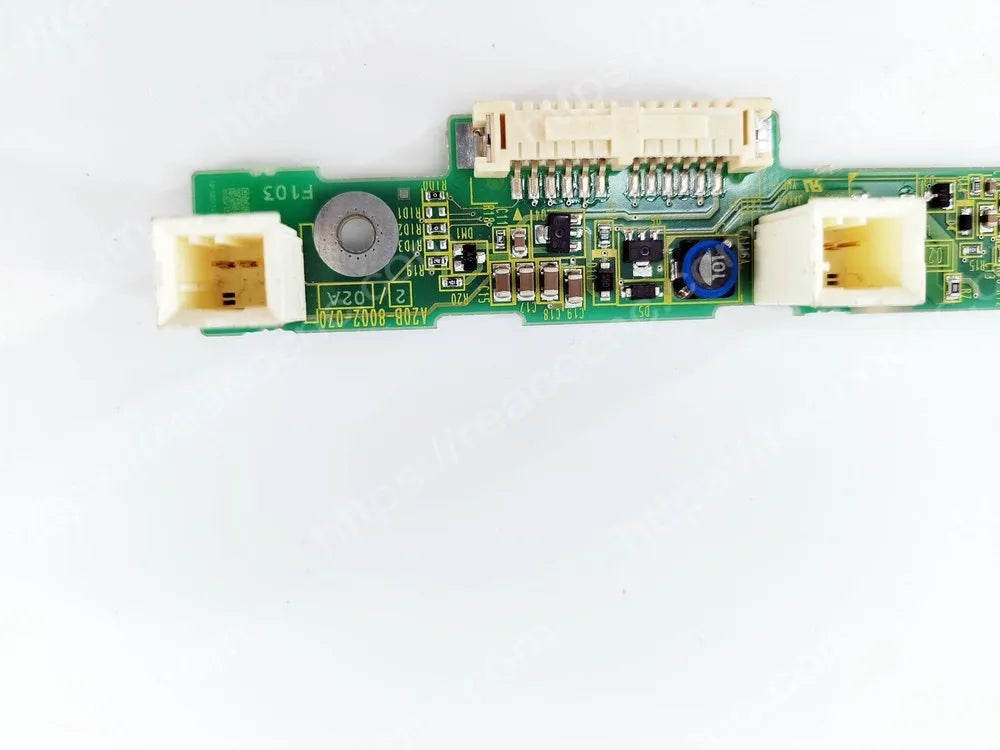

• Original PCB layout and connector position
• Display-unit part number
• Whether the fault is caused by the inverter, LCD panel, cable, power supply, or main board

The similar A20B-8002-0703 is listed by FANUC for an 8.4-inch color LCD, so the two inverter boards should not be selected only by appearance.

Common Use Cases

• FANUC 10.4-inch LCD inverter PCB replacement
• Repair of a color LCD with no backlight
• Troubleshooting intermittent or unusually dim screen illumination
• Maintenance of FANUC 0i-D display assemblies
• Replacement of a damaged LCD backlight control board
• Preparation of a tested display spare for CNC maintenance

Sales & Support

Each A20B-8002-0702 LCD inverter PCB is inspected and tested under applicable conditions before delivery.

Worldwide shipping is available through DHL, UPS, FedEx, and other express carriers. REACO CNC provides PCB repair service, warranty coverage, testing-video support, and technical assistance for FANUC CNC display boards and control components.
