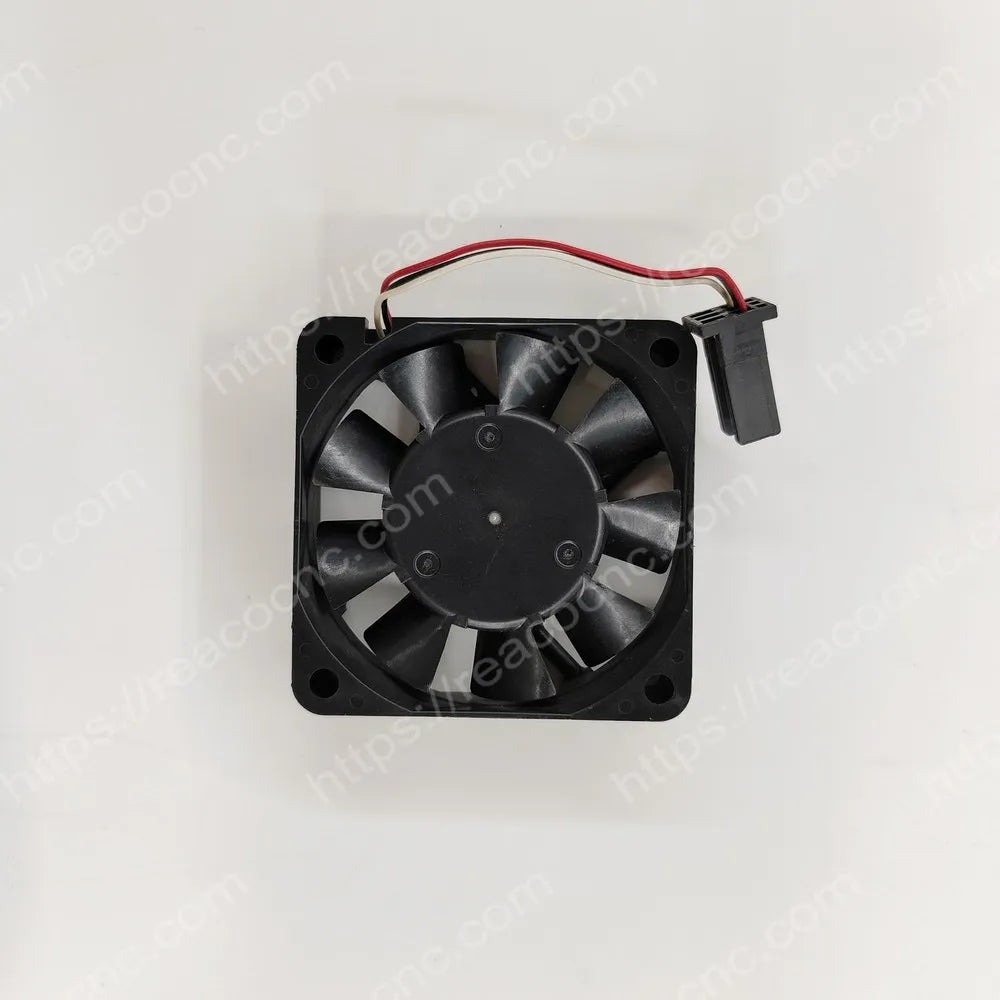

The FANUC A90L-0001-0511 is a 24VDC internal cooling fan motor used in selected larger FANUC Alpha i power supply, servo and spindle amplifier modules. It circulates air inside the housing and differs from the external radiator fan used on the heat-sink fins.

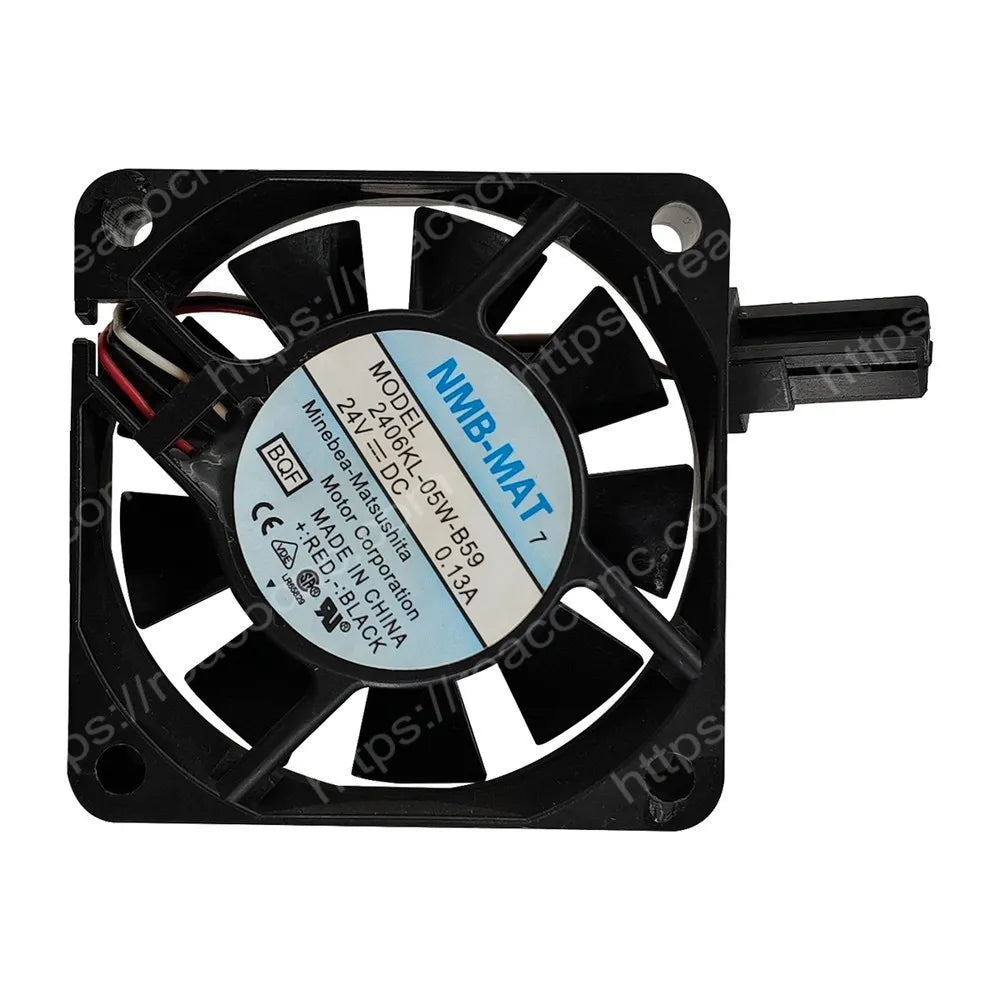

Known manufacturer versions include NMB-MAT 2406KL-05W-B59 and Sanyo Denki 9WF0624H7D03. Both use a 60 × 60 × 15mm frame, but the label, current, lead length and connector may vary. Match the actual A90L number and original fan.
A90L-0001-0511 Product Information
| Brand | FANUC |
| Model / MPN | A90L-0001-0511 |
| Product Type | Internal air-circulation cooling fan motor |
| Application | Selected FANUC Alpha i PSM, SVM and SPM modules |
| Associated Fan Unit | A06B-6110-C607 in documented applications |
| Manufacturer Models | NMB 2406KL-05W-B59; Sanyo Denki 9WF0624H7D03 |
| Rated Voltage | 24VDC |
| Rated Current | Nameplate-dependent; commonly approximately 0.08–0.13A |

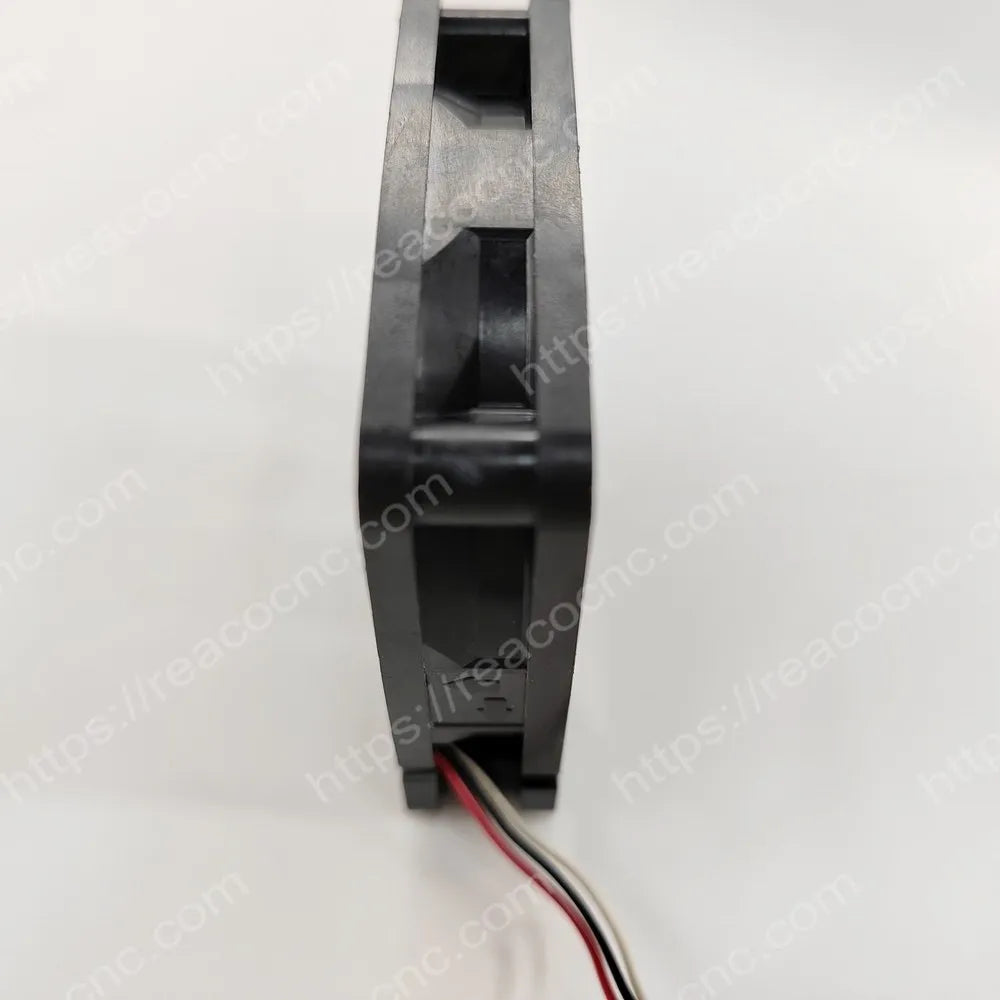

| Frame Size | Approximately 60 × 60 × 15mm |
| Connection | Three-wire lead; verify connector, pinout and cable length |
| Cooling Position | Internal module air circulation |
| Quantity | One or two fans depending on the amplifier model |
| Condition | New, refurbished, or used 90% new; subject to stock |
| Testing | 100% tested before shipping; test video available |
| Handling | Normally 1–2 business days |
| Shipping / ETA | DHL, UPS, or FedEx worldwide; typically 3–7 business days |
| Warranty | 1 year for new/refurbished; 3 months for used 90% new |
| Service / Packing | Free technical support; protective reinforced packing |
Internal Air-Circulation Function
A90L-0001-0511 maintains airflow around internal power and control components. Worn bearings, blocked vents or a stopped fan can increase temperature and contribute to fan or overheat alarms. Some high-capacity modules use two motors, so check the quantity before ordering.
Alpha i Module Compatibility
FANUC documentation lists this motor in A06B-6110-C607 assemblies used by selected larger Alpha i modules, including specified high-capacity servo and spindle amplifiers. Confirm the complete A06B number, fan location, quantity, mounting cover, airflow direction, connector and cable length.
Testing and Installation Notes
REACO CNC checks the label, frame, blades, bearing noise, startup, running current, airflow and signal lead as applicable. Disconnect power and wait for the DC bus to discharge before opening the amplifier. Install the fan in the original airflow direction and do not identify wire functions by color alone.
Related resources: FANUC CNC drives and FANUC drive repair services.
