The FANUC SV0411 alarm indicates an excess error during servo axis movement. This alarm occurs when the position deviation of a servo axis becomes too large while the axis is moving.
During normal servo operation, the CNC system continuously compares the commanded position with the actual position detected by the feedback system. If the difference between the command and feedback becomes greater than the allowable level during movement, the CNC system may generate the SV0411 alarm.
This alarm may be related to incorrect power cable or feedback cable connection, incorrect servo motor initialization parameters, unsuitable position deviation alarm level settings, axis vibration, Cs axis or spindle encoder parameter issues, servo motor failure, power-side abnormalities, or servo amplifier failure.
What Does FANUC SV0411 Alarm Mean?

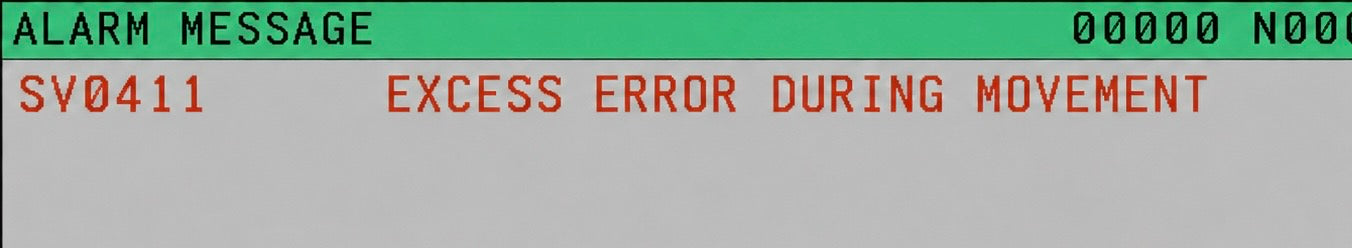

SV0411: Excess Error During Movement
The FANUC SV0411 alarm means that the position error of a servo axis is too large while the axis is moving. In other words, the actual axis position detected by the feedback system does not follow the commanded movement within the allowable deviation range.
Compared with SV0410, which is related to excessive error when the axis is stopped, SV0411 occurs during axis movement. It usually appears when the servo system cannot correctly control the axis, the feedback signal does not match the commanded movement, or the actual motor movement is abnormal.
Important parameters related to this alarm may include P1828, which sets the allowable position deviation during servo axis movement, and P5310, depending on the CNC system, axis type, and control condition.
Common Causes of FANUC SV0411 Alarm
The most common causes of FANUC SV0411 excess error during movement alarm include:
1. Power Cable or Feedback Cable Connected Incorrectly
If the servo motor power cable or feedback cable is connected incorrectly, the CNC system may command the axis to move in one direction while the feedback or actual motor movement does not correspond correctly.
This can cause the position deviation to increase rapidly during movement and trigger the SV0411 alarm.
When the alarm appears after maintenance, motor replacement, amplifier replacement, cable replacement, or wiring work, the power cable and feedback cable should be checked first.
2. Incorrect Servo Motor Initialization Parameters
Incorrect servo motor initialization parameters can cause the servo system to control the motor improperly. If the motor data does not match the actual servo motor, the axis may move abnormally, vibrate, or fail to follow the commanded movement.
If SV0411 appears after parameter initialization, system recovery, memory card replacement, motor replacement, or software loading, the servo motor initialization parameters should be checked carefully.
3. Incorrect Movement Position Deviation Alarm Level
The SV0411 alarm may occur if the position deviation alarm level during movement is not set correctly.
Parameters such as P1828 and P5310 should be set correctly according to the machine structure, servo axis condition, and control mode. If the value is too sensitive or unsuitable for the machine condition, the CNC system may generate the alarm during normal movement.
4. Servo Axis Vibration or Hunting
If the servo motor or axis vibrates during movement, SV0411 may occur as an additional alarm. In this situation, the real cause may be axis vibration, resonance, excessive servo gain, mechanical looseness, or unstable load.
If vibration or hunting is observed during operation, the vibration issue should be corrected first. Do not treat SV0411 only as a parameter issue before checking the actual servo movement condition.
5. Cs Axis Control or Spindle Encoder Parameter Issue
If the SV0411 alarm occurs during Cs axis control or spindle positioning control, the spindle encoder-related parameters should be checked.
Incorrect spindle encoder parameter settings may cause abnormal position feedback during Cs axis control, resulting in excessive position error during movement.
6. Servo Motor Phase or Power-Side Abnormality
SV0411 may also occur when there is an abnormality on the motor power side. For example, if the servo motor phase sequence is abnormal, the axis may move in the wrong direction or accelerate abnormally when a movement command is given.
In field troubleshooting, this type of issue may look similar to a motor phase sequence problem: the axis may move normally in one direction at low speed, but alarm at high speed, or it may move rapidly in the wrong direction when commanded to move in the opposite direction.
7. Servo Motor Failure or Insulation Problem
A faulty servo motor may cause abnormal movement, incorrect torque response, poor feedback behavior, or excessive position deviation during movement.
If the motor has poor insulation, internal winding damage, or a ground fault, the axis may fail to follow commands correctly and may trigger SV0411. In some troubleshooting cases, the motor insulation resistance may be found to be extremely low, and the alarm disappears after replacing the servo motor.
8. Servo Amplifier Failure
A damaged servo amplifier may also cause the SV0411 alarm. If the amplifier cannot correctly control the servo motor output, the actual movement may deviate from the command, resulting in excessive position error during movement.
If cables, parameters, motor condition, and mechanical load have been checked but the alarm remains, the servo amplifier should also be inspected or replaced for testing.
How to Troubleshoot FANUC SV0411 Alarm
When troubleshooting the FANUC SV0411 alarm, the main point is to determine why the servo axis cannot follow the commanded movement within the allowable deviation range.
You may need to check:
- Whether the alarm occurs during manual movement, rapid movement, automatic operation, or Cs axis control
- Whether the servo motor power cable is connected correctly
- Whether the feedback cable or encoder cable is connected correctly
- Whether two axes have swapped power cables or feedback cables
- Whether the servo motor initialization parameters are correct
- Whether parameter P1828 is set to a reasonable value
- Whether related parameters such as P5310 are correctly set for the control condition
- Whether the servo motor or axis vibrates, hunts, or resonates during movement
- Whether the servo gain or related servo adjustment is suitable
- Whether the axis moves in the correct direction under command
- Whether the servo motor phase sequence may be abnormal
- Whether the servo motor insulation is normal
- Whether the servo drive or amplifier is faulty
- Whether Cs axis control is used and whether spindle encoder parameters are correct
It is important to check the actual motor movement direction and feedback condition carefully. If the axis moves opposite to the command direction or moves rapidly in the wrong direction, the issue may not be only a parameter problem. The motor power wiring, phase sequence, motor condition, and amplifier output should be checked carefully.
Recommended Solution
The correct solution for FANUC SV0411 alarm depends on the actual cause. The following checks are recommended based on the official troubleshooting direction and common field repair experience.
1. Check Power Cable and Feedback Cable Connections
First, check whether the servo motor power cable and feedback cable are connected correctly.
If the alarm occurs after maintenance, motor replacement, amplifier replacement, cable replacement, or wiring work, confirm that the power cable and encoder feedback cable are connected to the correct axis. If two axes are involved, make sure the cables have not been swapped.
2. Check Servo Motor Initialization Parameters
Confirm whether the servo motor initialization parameters are correct. If the motor parameters do not match the actual servo motor, the servo system may not control the axis properly during movement.
If necessary, reinitialize the servo axis parameters according to the correct motor and machine configuration, and then test whether the SV0411 alarm still occurs.
3. Correctly Set P1828, P5310, and Related Alarm Level Parameters
Correctly set the position deviation alarm level during servo axis movement. Important related parameters may include P1828, P5310, and other parameters depending on the CNC system and machine configuration.
The parameter value should match the actual machine condition. It is not recommended to increase the parameter value randomly before confirming whether the alarm is caused by wiring, motor, amplifier, vibration, or mechanical problems.
4. Solve Axis Vibration Before Treating SV0411 as the Main Alarm
If the servo motor or axis vibrates during operation, the vibration problem should be checked first. In this situation, SV0411 may be an additional alarm caused by unstable servo movement.
Possible checks include servo gain, resonance condition, mechanical looseness, load condition, and machine rigidity. If excessive gain or axis resonance is present, correct the vibration issue first and then check whether SV0411 disappears.
5. Check Spindle Encoder Parameters for Cs Axis Control
If this alarm occurs during Cs axis control or spindle positioning control, check the spindle encoder-related parameters.
Incorrect spindle encoder feedback settings may cause the CNC system to detect excessive position error during Cs axis movement.
6. Check Motor Phase Sequence and Power-Side Condition
If the axis movement direction is abnormal, or if the axis moves rapidly in the opposite direction when commanded, check the motor phase sequence and power-side condition.
For example, if slow movement in the positive direction is normal, but rapid movement causes SV0411, and movement in the negative direction causes the axis to move rapidly in the positive direction before alarming, the symptom may be similar to a motor phase or power-side abnormality.
In this case, the motor, power cable, and servo drive should be separated and checked carefully.
7. Check Servo Motor Insulation and Replace the Motor If Necessary
If the motor is suspected to be faulty, check the motor insulation condition. A multimeter or insulation tester can be used by qualified technicians to check whether the motor insulation is abnormal.
If the motor insulation is close to zero or clearly abnormal, the servo motor may be damaged. In this case, replace the servo motor and test the axis again.
8. Check or Replace the Servo Amplifier
If the power cable, feedback cable, motor parameters, motor insulation, and mechanical condition have been checked but the alarm remains, the servo amplifier may be faulty.
A faulty servo amplifier can cause abnormal motor output or poor servo control, resulting in excessive position deviation during movement. In this case, check, repair, or replace the servo amplifier.
If your machine shows FANUC SV0411 excess error during movement alarm, please contact REACO CNC directly. Our team can help check the possible cause and provide suitable FANUC servo motor, servo amplifier, cable, parameter, or Cs axis troubleshooting support.
REACO CNC Support for FANUC SV0411 Alarm
REACO CNC provides support for FANUC CNC systems, servo motors, servo amplifiers, feedback cables, axis control boards, spindle positioning control, Cs axis control, and related CNC hardware issues.
We can help with:
- FANUC CNC alarm analysis
- FANUC SV0411 alarm troubleshooting
- Servo axis movement position deviation issue analysis
- Servo parameter checking guidance
- P1828, P5310, and related parameter checking support
- Servo motor and feedback cable checking
- Servo motor insulation issue analysis
- Servo amplifier repair or replacement support
- Cs axis and spindle encoder parameter checking
- Replacement FANUC CNC parts supply
If you are not sure whether the SV0411 alarm is caused by wiring, servo parameters, axis vibration, motor phase sequence, motor insulation failure, servo amplifier failure, or spindle encoder settings, you can send us the CNC system model, alarm screen, servo amplifier model, motor model, axis information, and machine condition. Our team will help check the possible cause.
FAQ About FANUC SV0411 Alarm
What is FANUC SV0411 alarm?
FANUC SV0411 alarm means that the position deviation of a servo axis is too large while the axis is moving. The CNC system detects that the actual axis position cannot follow the commanded movement within the allowable range.
What causes FANUC SV0411 excess error during movement alarm?
The alarm may be caused by incorrect power cable or feedback cable connection, wrong servo motor initialization parameters, unsuitable movement position deviation alarm level parameters, axis vibration, motor phase abnormality, servo motor insulation failure, servo amplifier failure, or spindle encoder parameter issues during Cs axis control.
Which parameters are related to FANUC SV0411 alarm?
Important related parameters may include P1828, which sets the position deviation alarm level during servo axis movement, and P5310, depending on the machine configuration and control condition.
Can wrong cable connection cause SV0411 alarm?
Yes. Incorrect servo motor power cable or feedback cable connection can cause abnormal motor movement or incorrect feedback. This may quickly increase position deviation during movement and trigger SV0411.
Can axis vibration cause SV0411 alarm?
Yes. If the servo motor or axis vibrates, hunts, or resonates during movement, SV0411 may appear as an additional alarm. The vibration problem should be solved first.
Can a motor phase problem cause SV0411 alarm?
Yes. If the motor phase sequence or power-side connection is abnormal, the axis may move in the wrong direction or move abnormally under command, which can cause SV0411.
Can servo motor insulation failure cause SV0411 alarm?
Yes. A servo motor with poor insulation or internal winding damage may cause abnormal movement and excessive position error. If the motor insulation is close to zero or abnormal, the servo motor should be replaced.
Can a servo amplifier failure cause SV0411 alarm?
Yes. A damaged servo amplifier may cause abnormal motor output or poor servo control, resulting in excessive position deviation during movement. If other causes have been ruled out, the amplifier should be checked or replaced.
What should I check if SV0411 occurs during Cs axis control?
If SV0411 occurs during Cs axis control or spindle positioning control, check the spindle encoder-related parameters and confirm that the spindle encoder feedback configuration is correct.
How can I fix FANUC SV0411 alarm?
Check the servo power cable and feedback cable connection, verify servo motor initialization parameters, correctly set movement position deviation alarm level parameters such as P1828 and P5310, solve any vibration issue first, check Cs axis spindle encoder parameters if used, confirm motor phase sequence, check motor insulation, and inspect or replace the servo amplifier if necessary.
