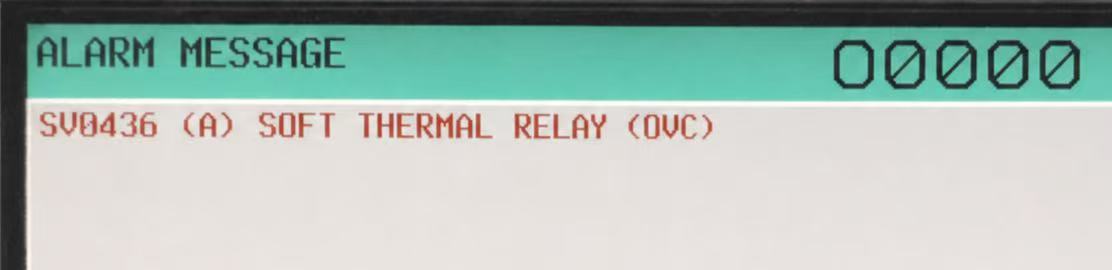

The FANUC SV0436 alarm indicates a soft thermal relay alarm, also known as an OVC alarm. This is a protective alarm detected by the digital servo software when the system calculates that the servo motor has been used beyond the continuous operating time allowed under the current load condition.
In simple terms, the CNC system internally calculates the motor load and operating condition. If the current load continues for longer than the motor can safely handle, the system generates SV0436 to protect the servo motor from damage.
This alarm may be caused by incorrect motor parameters, brake not fully released, power cable or feedback cable problems, excessive acceleration/deceleration load, mechanical resistance, excessive cutting load, poor lubrication, unsuitable counterweight condition, or a servo motor that is too small for the actual machine load.
Quick Summary of FANUC SV0436 Alarm
| Alarm Code | SV0436 |
|---|---|
| Alarm Meaning | Soft Thermal Relay Alarm / OVC |
| Main Cause | The digital servo software detects a soft thermal overload condition based on calculated motor usage and load. |
| Main Protection Purpose | To prevent servo motor damage caused by continuous overload. |
| Related Parameters | P1620, P1621 and other acceleration/deceleration time constant parameters |
| Key Check Items | Motor parameters, brake release, motor power cable, feedback cable, servo load, mechanical load, cutting condition, lubrication, counterweight, motor size |
What Does FANUC SV0436 Alarm Mean?
SV0436: Soft Thermal Relay Alarm (OVC)
The FANUC SV0436 alarm means that the digital servo software has detected a soft thermal overload condition. The alarm is generated based on the calculated load and operation time of the servo motor.
This is a protective function. The system estimates whether the motor is operating beyond the safe continuous usage range under the current load. If the load is too high or the motor has been operating under heavy load for too long, SV0436 may occur to prevent motor damage.
Because SV0436 is calculated by the servo software, it does not always mean the motor is physically overheated at the moment. The cause may be related to actual overload, incorrect servo motor parameters, mechanical resistance, brake problems, cables, machining load, or acceleration/deceleration settings.
Common Causes of FANUC SV0436 Alarm
The most common causes of FANUC SV0436 soft thermal relay OVC alarm include:
1. Incorrect Servo Motor Parameters
If the servo motor parameters are incorrect, the CNC system may calculate the motor load incorrectly or control the motor in an unsuitable way.
When SV0436 appears, especially after motor replacement, parameter restoration, system recovery, or servo initialization, check the motor-specific parameters carefully. If needed, reinitialize the servo motor parameters according to the correct motor model.
2. Brake Does Not Fully Release
For a brake axis or a servo motor with a brake, the brake must release completely during movement.
If the brake does not fully release, the motor will run under additional resistance. This can greatly increase motor load and cause the system to calculate an OVC condition, resulting in SV0436.
3. Power Cable or Feedback Cable Problem
Problems in the servo motor power cable or feedback cable may also cause abnormal motor operation and load calculation.
Loose connectors, incorrect wiring, poor contact, damaged cables, feedback signal problems, or motor insulation issues may cause unstable servo operation and trigger SV0436.
4. Acceleration or Deceleration Load Is Too High
If the alarm occurs mainly during rapid movement, the motor may be overloaded during acceleration or deceleration.
In this case, the acceleration/deceleration time constants, such as P1620 and P1621, may need to be increased to reduce the acceleration load on the servo motor.
5. Excessive Mechanical Load
Mechanical resistance is one of the most common causes of SV0436.
Possible mechanical causes include abnormal ball screw bearings, ball screw nut problems, slider issues, tight guideway wedge adjustment, poor lubrication, mechanical jamming, or excessive friction in the axis movement system.
6. Excessive Cutting Load During Machining
If the alarm occurs only during a specific machining program or cutting segment, the cutting load may be too high.
Unreasonable cutting depth, feedrate, tool condition, material condition, or machining process may cause the servo motor load to exceed the continuous allowable range.
7. Long Operation Time Under Heavy Load
SV0436 may occur only after the machine has been running for a long time.
In this situation, check whether the guideway lubrication is normal, whether the mechanical resistance increases after long operation, and whether the servo motor selection is suitable for the machine structure. If the motor is too small for the actual load, SV0436 may occur repeatedly.
8. Counterweight or Gravity Axis Problem
For a gravity axis or an axis with a counterweight structure, an unreasonable counterweight condition may increase motor load.
If nitrogen counterbalance is used, check whether the nitrogen cylinder pressure is normal. If the counterweight is not balanced correctly, the motor may work under excessive load and trigger the OVC alarm.
How to Troubleshoot FANUC SV0436 Alarm
When troubleshooting the FANUC SV0436 alarm, the main point is to confirm when the alarm occurs and whether the servo load is actually abnormal.
You may need to check:
- Whether the alarm occurs during low-speed movement, rapid movement, manual operation, automatic machining, or long-time operation
- Whether the alarm is occasional or appears continuously
- Whether the servo axis load display is normal during manual low-speed movement
- Whether the alarm occurs only during rapid movement or acceleration/deceleration
- Whether the servo motor parameters are correct
- Whether reinitializing the motor parameters clears the alarm
- Whether acceleration/deceleration time constants such as P1620 and P1621 are suitable
- Whether the brake axis can release the brake completely
- Whether the motor power cable and feedback cable are normal
- Whether the connectors are loose or damaged
- Whether motor insulation is normal
- Whether the motor bearing is good and whether the motor shaft is stuck
- Whether the mechanical part causes excessive load
- Whether the ball screw bearing, ball screw nut, slider, guideway wedge, or lubrication system is abnormal
- Whether the cutting load is too high in a fixed machining program segment
- Whether the motor size is suitable for the machine load
- Whether the counterweight or nitrogen cylinder pressure is normal on gravity axes
Because SV0436 is a protective alarm, it is important not to simply ignore it. The machine condition, servo load, motor parameters, cables, brake, mechanical system, and machining process should be checked step by step.
Recommended Solution
The correct solution for FANUC SV0436 depends on whether the alarm is caused by parameter mismatch, brake failure, cable problem, acceleration load, mechanical resistance, machining load, or motor sizing.
1. Observe the Alarm Axis During Manual Low-Speed Movement
First, move the alarm axis manually at low speed while observing the servo load status.
Confirm whether the axis moves smoothly and whether the load display is normal. Also record whether the alarm occurs during low-speed movement, rapid movement, manual operation, automatic machining, occasionally, or continuously.
2. If Low-Speed Load Is Normal but Rapid Movement Causes Alarm
If the axis moves normally at low speed and the load display is normal, but SV0436 occurs during rapid movement, check the motor parameters first.
Reinitialize the servo motor parameters according to the correct motor model and test again. If needed, increase the acceleration/deceleration time constant values such as P1620 and P1621 to reduce acceleration load.
3. Check Brake Release on Brake-Type Axes
If the alarm occurs on a brake axis or an axis with a brake, confirm whether the brake releases completely.
Check the brake coil, brake power supply, brake voltage, and mechanical brake release condition. If the brake does not fully release, the motor may be overloaded and trigger SV0436.
4. If Low-Speed Load Is High, Separate the Motor from the Machine
If the axis load is high even during low-speed movement, separate the motor from the mechanical structure and test the motor independently.
If the motor still generates the alarm or shows abnormal load when separated from the machine, check the power cable, feedback cable, connectors, motor insulation, motor bearings, and whether the motor shaft is stuck.
5. If the Motor Runs Normally Without Mechanical Load
If the motor runs normally after being separated from the mechanical part, the fault is likely in the machine mechanism.
Check the ball screw bearing, ball screw nut, slider, guideway wedge, guideway adjustment, lubrication oil path, and other mechanical components that may increase load or friction.
6. Check Machining Conditions If Alarm Occurs in a Fixed Program Segment
If SV0436 occurs during a fixed machining program segment, check whether the cutting load and machining process are reasonable.
Confirm the cutting depth, feedrate, tool condition, material condition, and whether the cutting process causes excessive servo load.
7. Check Lubrication and Motor Sizing for Long-Time Operation Alarms
If the machine runs for a long time before SV0436 occurs, check whether the guideway lubrication is normal.
Also confirm whether the motor selection is suitable for the machine structure. If the motor is too small or does not match the load requirement, the alarm may occur after extended operation.
8. Check Counterweight on Gravity Axes
If the alarm occurs on a gravity axis with a counterweight structure, check whether the counterweight is reasonable.
For nitrogen counterbalance systems, confirm whether the nitrogen cylinder pressure is normal. An incorrect counterweight condition can increase the motor load and cause SV0436.
If your machine shows FANUC SV0436 soft thermal relay OVC alarm, please contact REACO CNC directly. Our team can help check servo motor parameters, brake release, power and feedback cables, servo load condition, acceleration/deceleration time constants, mechanical load, lubrication, counterweight condition, and motor selection.
REACO CNC Support for FANUC SV0436 Alarm
REACO CNC provides support for FANUC CNC systems, servo motors, servo amplifiers, feedback cables, brake-type motors, axis load problems, mechanical troubleshooting, and related CNC hardware issues.
We can help with:
- FANUC CNC alarm analysis
- FANUC SV0436 soft thermal relay OVC troubleshooting
- Servo motor parameter initialization guidance
- Servo axis load condition analysis
- Brake axis issue checking
- Motor power cable and feedback cable checking
- P1620 and P1621 acceleration/deceleration time constant guidance
- Mechanical load and lubrication issue analysis
- Counterweight and gravity axis troubleshooting
- Servo motor and amplifier replacement support
- Replacement FANUC CNC parts supply
If you are not sure whether the SV0436 alarm is caused by motor parameters, brake failure, cable problems, acceleration/deceleration load, mechanical resistance, cutting load, poor lubrication, counterweight imbalance, or motor sizing, you can send us the CNC system model, alarm screen, axis information, servo motor model, amplifier model, load display information, and machine condition. Our team will help check the possible cause.
FAQ About FANUC SV0436 Alarm
What is FANUC SV0436 alarm?
FANUC SV0436 alarm means soft thermal relay alarm, also called OVC. It occurs when the digital servo software detects a calculated soft thermal overload condition.
What causes FANUC SV0436 OVC alarm?
The alarm may be caused by incorrect motor parameters, brake not fully released, power cable or feedback cable problems, excessive acceleration/deceleration load, mechanical resistance, high cutting load, poor lubrication, counterweight imbalance, or a servo motor that is too small for the actual load.
Is SV0436 a real motor overheat alarm?
SV0436 is a soft thermal relay alarm calculated by the digital servo software. It is related to motor load and operating time. It does not always mean the motor temperature is physically high at that exact moment, but it is still a protective alarm and should be checked seriously.
What should I check first when SV0436 appears?
Move the alarm axis manually at low speed and observe the servo load status. Confirm whether the alarm occurs during low-speed movement, rapid movement, manual operation, automatic machining, or after long-time operation.
Can incorrect motor parameters cause SV0436?
Yes. Incorrect servo motor parameters may cause wrong load calculation or abnormal servo control. Reinitializing the motor parameters according to the correct motor model may help resolve the alarm.
Can P1620 and P1621 help with SV0436?
Yes. If the alarm occurs mainly during rapid movement or acceleration/deceleration, increasing acceleration/deceleration time constant parameters such as P1620 and P1621 may reduce motor load.
Can brake problems cause SV0436?
Yes. If the brake does not fully release, the servo motor runs under extra resistance and may trigger the OVC alarm. Brake voltage and release condition should be checked.
Can mechanical resistance cause SV0436?
Yes. Ball screw bearing problems, ball screw nut issues, slider resistance, tight guideway wedge adjustment, poor lubrication, or mechanical jamming may increase servo load and cause SV0436.
Can machining load cause SV0436?
Yes. If the alarm occurs during a fixed machining program segment, check cutting depth, feedrate, tool condition, material condition, and machining process. Excessive cutting load may cause SV0436.
Can counterweight problems cause SV0436?
Yes. For gravity axes with counterweight or nitrogen counterbalance systems, an incorrect counterweight condition or abnormal nitrogen cylinder pressure may increase motor load and cause the alarm.
How can I fix FANUC SV0436 alarm?
Check the motor parameters, observe servo load during movement, confirm brake release, inspect power and feedback cables, increase P1620/P1621 time constants if acceleration load is high, separate the motor from the machine to distinguish motor and mechanical problems, inspect mechanical load and lubrication, check machining conditions, and confirm counterweight condition on gravity axes.
Need Help with FANUC SV0436 Alarm?
If your CNC machine has a FANUC SV0436 soft thermal relay OVC alarm, please contact REACO CNC. We can help analyze the alarm cause and provide suitable FANUC CNC repair, servo motor checking, brake troubleshooting, cable inspection, acceleration/deceleration parameter guidance, mechanical load analysis, counterweight checking, or related technical support.
Reference Source: Beijing FANUC. This article is based on technical documentation provided by Beijing FANUC. For More Fanuc CNC repair Cases and technical articles, please back to Fanuc Technical Support Center.
