FANUC SV0436 Soft Thermal Relay OVC Alarm: Causes and Troubleshooting

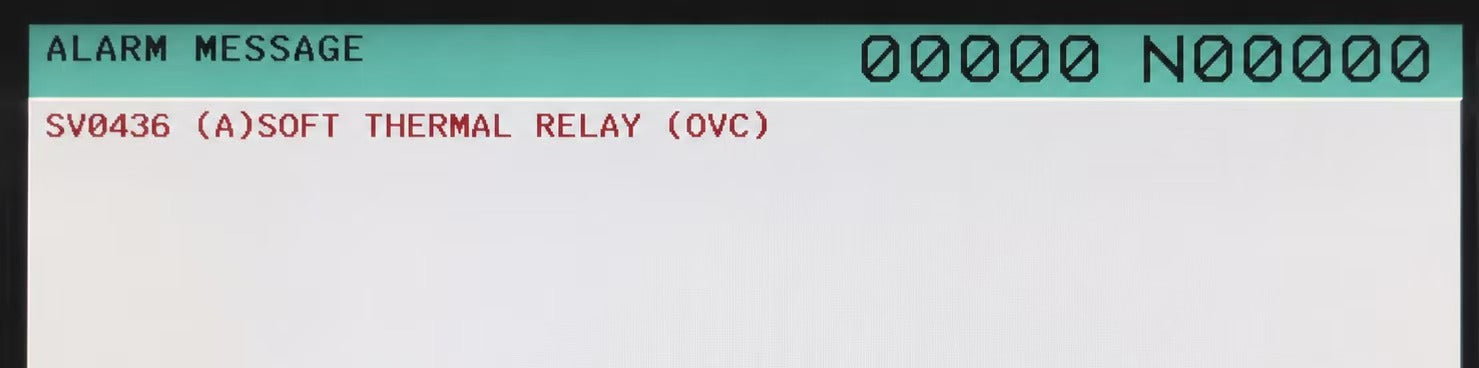

What Is FANUC SV0436 Alarm?

FANUC SV0436 Soft Thermal Relay OVC alarm indicates that the CNC servo software has detected a calculated thermal overload condition. It does not always mean that the servo motor is physically overheated. In many cases, the CNC control calculates the motor load, current and running time, then triggers protection when the software thermal limit is exceeded.

In simple terms, SV0436 is a software-based overload protection alarm. The servo motor may be working harder than it should because of excessive mechanical load, incorrect servo parameters, brake problems, wiring issues or unsuitable machining conditions.

What Does FANUC SV0436 Soft Thermal Relay OVC Mean?

The SV0436 alarm means that the servo system has detected a soft thermal overload condition. The servo software monitors the motor load and running condition. If the load remains too high for longer than the allowed continuous operating time, the CNC system issues the SV0436 alarm to prevent motor or drive damage.

The key point is that SV0436 is a calculated protection alarm, not always a direct motor over-temperature alarm. A motor may not feel extremely hot when this alarm appears, because the alarm is based on load and duration calculated by the servo software.

Common Symptoms of FANUC SV0436 Alarm

When this alarm appears, the machine may show one or more of the following symptoms:

• The alarm appears only during rapid movement.
• The alarm appears during low-speed jogging.
• The alarm happens on one fixed axis, such as X, Y, Z or a robot gantry axis.
• The alarm appears during a specific machining program block.
• The alarm appears after the machine has been running for a long time.
• The alarm is intermittent and does not occur at a fixed time.
• The servo load display is abnormally high during movement or even at standstill.
• The axis with a brake or counterbalance structure shows abnormal load.

Understanding when the alarm appears is important because FANUC SV0436 can be caused by electrical, parameter, mechanical or process-related problems.

Main Causes of FANUC SV0436 OVC Alarm

1. Excessive Mechanical Load

Mechanical resistance is one of the most common causes of SV0436. If the ball screw, guide rail, bearing, slider, gib or lubrication system has a problem, the servo motor must output more torque to move the axis. Over time, the software thermal protection may be triggered.

Possible mechanical causes include:

• Poor guide rail lubrication
• Damaged or worn ball screw bearing
• Tight ball screw nut
• Abnormal linear guide block
• Heavy friction on hard rail surfaces
• Axis misalignment
• Mechanical jamming
• Over-tightened gib or wedge adjustment

If the axis load is high even during low-speed manual operation, the mechanical side should be checked carefully.

2. Incorrect Motor Parameters or Servo Settings

If SV0436 occurs mainly during rapid movement while low-speed movement looks normal, the problem may be related to motor settings or acceleration and deceleration conditions.

Possible causes include:

• Incorrect motor code
• Wrong servo initialization data
• Improper motor-specific parameters
• Acceleration/deceleration time set too short
• Parameter mismatch after CNC, servo amplifier or motor replacement

For FANUC systems, parameters such as No.1620 and No.1621 are often checked when rapid movement causes overload-related alarms. Increasing acceleration/deceleration time may reduce sudden load peaks during rapid positioning.

3. Brake Not Fully Released

For axes with a motor brake, SV0436 may occur when the brake does not release completely. A dragging brake increases motor load quickly and can trigger soft thermal protection.

This is especially common on:

• Vertical axes
• Gantry robot axes
• Servo motors with holding brakes
• Machines that have been stopped for a long time
• Systems with brake wiring or relay problems

Check whether the brake power supply, brake relay, brake timing and mechanical release condition are normal.

4. Motor, Power Cable or Feedback Cable Problem

If the motor is disconnected from the mechanical structure and still shows abnormal load or SV0436 alarm, the problem may be on the electrical side.

Check the following:

• Servo motor power cable
• Feedback cable
• Connector looseness
• Cable phase connection
• Cable insulation
• Ground fault risk
• Pulse coder feedback condition
• Motor bearing condition
• Motor shaft rotation condition
• Motor insulation resistance

Loose connectors, damaged cables or poor insulation may cause abnormal motor current and make the servo software calculate an overload condition.

5. Machine Process or Cutting Load Too Heavy

If the alarm always appears at the same machining step, the issue may be related to the process rather than the servo hardware.

Check whether:

• Cutting depth is too large
• Feedrate is too aggressive
• Tool condition is poor
• Cutting resistance is too high
• The program contains frequent rapid acceleration and deceleration
• The same axis is overloaded repeatedly in one cycle

In this case, optimizing the machining process may solve the SV0436 alarm without replacing any servo parts.

6. Counterbalance Problem on Gravity Axis

For a vertical axis or lifting axis with counterbalance, the servo motor may carry too much weight if the counterbalance system is abnormal.

Check:

• Nitrogen cylinder pressure
• Counterweight structure
• Balance chain or belt
• Hydraulic or pneumatic balance system
• Z-axis holding condition
• Static load percentage on the servo monitor screen

If the counterbalance is not working correctly, the servo motor may remain under heavy load even when the axis is not moving.

Step-by-Step Troubleshooting for FANUC SV0436 Alarm

Step 1: Confirm the Alarm Axis and Running Condition

First, identify which axis shows the SV0436 alarm. Then confirm the actual condition when the alarm occurs.

• Does it happen during manual jog?
• Does it happen during rapid movement?
• Does it happen during automatic machining?
• Does it happen at low speed or high speed?
• Is it occasional or repeated?
• Does it happen immediately after startup or after long operation?

This information helps separate mechanical overload, parameter problems and machining process problems.

Step 2: Check Servo Load Display

Run the alarm axis at low speed and observe the servo load on the CNC screen. If the load is normal at low speed but rises sharply during rapid movement, check servo parameters, acceleration/deceleration time and motor initialization.

If the load is high even at low speed, check mechanical resistance, brake release and motor condition.

Step 3: Test Rapid Movement

If the axis only alarms during rapid traverse, reduce the rapid speed or adjust acceleration/deceleration conditions for testing.

You may need to check:

• Motor code
• Servo parameter initialization
• Parameter No.1620
• Parameter No.1621
• Motor/amplifier matching
• Machine load during rapid positioning

Do not increase parameters blindly. Always back up CNC parameters before making changes.

Step 4: Check the Brake Axis

If the alarm axis has a brake, confirm that the brake is fully released before movement. A brake that is only partially released can cause high motor load and trigger SV0436 very quickly.

Step 5: Separate Motor from Mechanical Structure

If the axis load is very high at low speed, disconnect the motor from the mechanical structure and run the motor separately.

If the motor still shows abnormal load after being separated, check the motor, power cable, feedback cable, connector and insulation.

If the motor runs normally after being separated, the problem is more likely in the mechanical transmission system.

Step 6: Inspect Mechanical Components

When the motor itself is normal but the axis load remains high after coupling with the machine, inspect the mechanical side.

Key parts to check include:

• Ball screw
• Ball screw bearing
• Ball screw nut
• Linear guide block
• Slider
• Hard rail surface
• Gib adjustment
• Coupling
• Lubrication system

Mechanical friction is a major reason why the servo system enters soft thermal overload.

Step 7: Review Machining Program and Cutting Conditions

If SV0436 appears only during a fixed program segment, check the machining process. Possible solutions include reducing cutting depth, reducing feedrate, checking the tool, improving lubrication or cooling, and modifying the program to reduce continuous overload.

Example Case: Two-Axis Gantry Robot with Frequent SV0436 Alarm

A customer’s two-axis gantry robot frequently showed FANUC SV0436 soft thermal relay alarm. The alarm frequency was not fixed, which made the problem difficult to judge at first.

Based on field troubleshooting experience, the possible causes included:

1. Incorrect motor code or motor-specific parameters
2. Acceleration/deceleration time set too small
3. Loose or incorrect motor power cable or feedback cable connection
4. Brake not fully released
5. Mechanical resistance or abnormal load on the gantry axis

For this type of problem, the recommended diagnostic sequence is to first monitor the servo load, then compare low-speed and rapid movement behavior, and finally separate the motor from the mechanical structure if necessary. This avoids replacing the servo amplifier or motor before confirming the real cause.

SV0436 vs Motor Overheat Alarm: What Is the Difference?

SV0436 is often misunderstood as a direct motor overheating alarm. In fact, it is better understood as a software-calculated overload protection alarm.

A motor may not feel extremely hot when SV0436 appears. The CNC system may trigger the alarm because the servo software has calculated that the motor has been operating beyond its allowed continuous load curve.

For example, a motor may be allowed to reach a high load briefly during acceleration. However, if the same high load continues for too long, the software protection will judge it as unsafe and issue the SV0436 OVC alarm.

Practical Maintenance Tips

Before replacing parts, check these items first:

• Back up CNC parameters and machine data.
• Record the exact alarm axis.
• Observe servo load during stop, low-speed jog and rapid movement.
• Check whether the alarm occurs in manual mode or automatic mode.
• Confirm whether the axis has a brake or counterbalance system.
• Check lubrication and mechanical resistance.
• Inspect motor cables and feedback connectors.
• Verify motor code and servo parameter settings.
• Review recent maintenance history, motor replacement or amplifier replacement.

Replacing the servo amplifier too early may not solve the problem if the real cause is mechanical friction, brake drag, parameter mismatch or excessive cutting load.

FAQ: FANUC SV0436 Soft Thermal Relay OVC Alarm

What is FANUC SV0436 alarm?

FANUC SV0436 is a soft thermal relay OVC alarm. It means the digital servo software has detected a calculated thermal overload condition on the servo system.

Does SV0436 mean the servo motor is actually overheated?

Not always. SV0436 is often based on software calculation of motor load and running time. The motor may not be physically overheated when the alarm appears.

What is the most common cause of SV0436?

Common causes include excessive mechanical load, incorrect motor parameters, too short acceleration/deceleration time, brake not fully released, cable problems, motor problems or excessive machining load.

Can SV0436 be caused by mechanical problems?

Yes. Mechanical friction, poor lubrication, damaged ball screw bearings, tight guide rails or abnormal counterbalance can all cause high servo load and trigger SV0436.

Should I replace the servo amplifier when SV0436 appears?

Not immediately. SV0436 is often related to load, parameters, brake, motor or machine mechanics. The servo amplifier should be checked only after basic troubleshooting confirms that the external causes are normal.

How do I troubleshoot SV0436 quickly?

Start by checking the servo load display. Compare the load during stop, low-speed jog and rapid movement. Then check brake release, motor parameters, motor cables, feedback cable, mechanical resistance and machining conditions.
