The FANUC SV0466 alarm indicates a motor and amplifier combination mismatch. This alarm occurs when the CNC system detects that the maximum current value of the servo amplifier does not match the maximum current value of the servo motor.
In a FANUC servo system, the motor model, servo amplifier model, motor code, FSSB connection order, and servo parameters must match the actual machine configuration. If a drive has been replaced, a fourth axis has been added, a full machine parameter backup has been restored, or the motor code has been initialized incorrectly, the system may generate the SV0466 alarm.
SV0466 is usually not a random alarm. It often appears after hardware replacement, axis addition, parameter recovery, or servo configuration changes. Troubleshooting should focus on whether the actual motor and amplifier combination is correct, whether the FSSB connection order matches the parameter setting, whether the motor code is correct, and whether parameter P2165 matches the actual amplifier.
Quick Summary of FANUC SV0466 Alarm
| Alarm Code | SV0466 |
|---|---|
| Alarm Meaning | Motor and Amplifier Combination Mismatch |
| Main Cause | The servo amplifier maximum current value does not match the servo motor maximum current value. |
| Common Timing | After drive replacement, fourth axis addition, servo parameter initialization, or full machine parameter backup restoration |
| Key Check Items | Amplifier model, motor model, motor code, FSSB connection order, servo parameter initialization, parameter P2165, restored machine parameters |
| Temporary Test Parameter | P2165 may be set to 0 only for temporary testing when appropriate. |
What Does FANUC SV0466 Alarm Mean?
SV0466: Motor and Amplifier Combination Mismatch

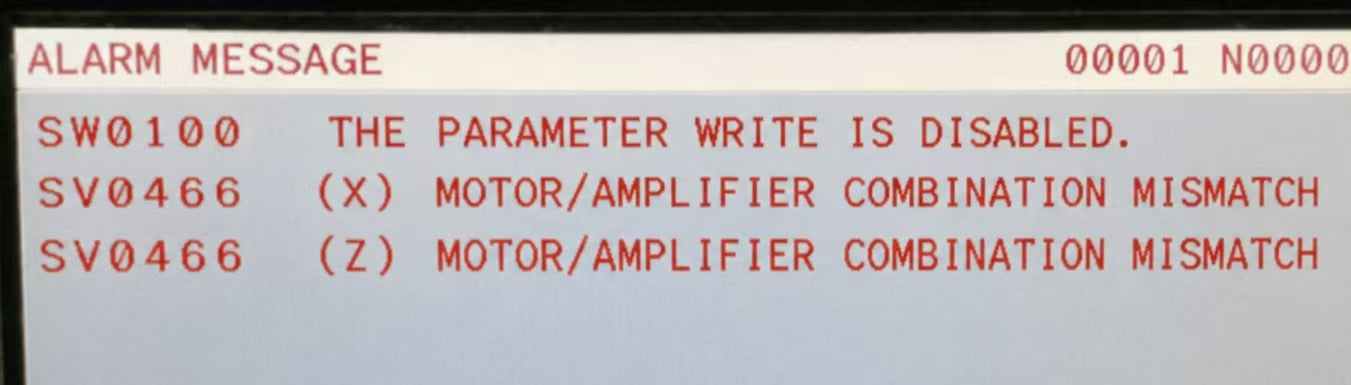

The FANUC SV0466 alarm means that the current servo motor and servo amplifier combination does not match the system setting or the required current specification.
The CNC system checks whether the amplifier capacity and motor data are compatible. If the amplifier maximum current value and the motor maximum current value do not match, the system judges the motor/amplifier combination as incorrect and displays SV0466.
This alarm often appears after a servo amplifier is replaced with a different model, after adding a fourth axis, after restoring parameters from another machine, or after setting an incorrect motor code during servo parameter initialization.
When Does SV0466 Usually Appear?
1. After Replacing a Servo Amplifier
If SV0466 appears after replacing a servo amplifier, the first question is whether the replacement amplifier model matches the original motor and system configuration.
If the amplifier capacity or current rating is not suitable for the connected motor, the system may detect a motor/amplifier mismatch and generate the alarm.
2. After Adding a Fourth Axis
When a fourth axis is added, the motor, amplifier, FSSB connection order, axis assignment, and servo parameters must all be configured correctly.
If the new axis drive does not match the motor, or if the FSSB connection order does not match the parameter setting, SV0466 may occur.
3. After Restoring Machine Parameters
If a full machine parameter backup is restored, the restored parameters must match the actual machine hardware.
If the backup comes from a different machine configuration, or if the servo amplifier and motor combination has changed, the restored parameters may not match the current hardware and may trigger SV0466.
4. After Servo Motor Parameter Initialization
If the motor code is entered incorrectly during servo motor parameter initialization, the CNC may load motor parameters that do not match the actual motor.
This can cause a mismatch between the motor current data and amplifier current rating, resulting in SV0466.
Common Causes of FANUC SV0466 Alarm
1. Servo Amplifier Model Does Not Match the Motor
The servo amplifier model must be suitable for the connected servo motor.
If the amplifier current capacity does not match the motor maximum current requirement, the system may report SV0466. In this case, a matching amplifier model should be used.
2. Incorrect Motor Code
The motor code determines the servo motor parameter set used by the CNC system.
If the motor code is incorrect, the CNC may load the wrong motor data. This may make the system think the motor and amplifier combination is invalid.
3. Incorrect Servo Motor Parameter Initialization
Even if the motor code looks close, incorrect initialization may still cause parameter mismatch.
Use the correct motor parameter list to confirm whether the motor code and initialized servo motor parameters match the actual motor model.
4. FSSB Connection Order Does Not Match Parameter Setting
The FSSB connection order must match the system parameter setting and actual axis assignment.
If the optical fiber connection order is different from the parameter configuration, the CNC may associate the wrong amplifier with the wrong axis or motor, causing SV0466.
5. Axis and Amplifier Assignment Mismatch
Each servo amplifier should correspond correctly to the configured axis.
If the actual amplifier connection does not match the axis assignment in the CNC parameters, the system may detect an incorrect motor/amplifier combination.
6. Restored Parameters Do Not Match the Machine
Parameters restored from another machine or an old configuration may not match the current hardware.
If the machine has changed amplifiers, motors, or axis configuration, the restored backup should be checked carefully before assuming the hardware is faulty.
7. Parameter P2165 Does Not Match the Actual Amplifier
Parameter P2165 should be checked against the actual amplifier configuration.
If P2165 does not match the installed amplifier, SV0466 may occur. For temporary function testing only, P2165 may be set to 0 to temporarily mask the alarm, but this should not be used as a normal long-term repair method.
How to Troubleshoot FANUC SV0466 Alarm
When troubleshooting SV0466, first confirm what happened before the alarm appeared. This is very important because the cause is usually related to a configuration or hardware change.
You may need to check:
- Whether the alarm appeared after replacing a servo amplifier
- Whether the alarm appeared after adding a fourth axis
- Whether the alarm appeared after restoring full machine parameters
- Whether the installed amplifier model matches the connected motor
- Whether the motor code is correct for the actual servo motor
- Whether the servo motor parameters were initialized correctly
- Whether the motor parameter list matches the actual motor model
- Whether the FSSB optical fiber connection order matches the parameter setting
- Whether each axis and servo amplifier correspond correctly
- Whether the restored parameter backup belongs to the same machine configuration
- Whether parameter P2165 matches the actual amplifier
- Whether P2165 is being used only temporarily for testing and not as a permanent fix
Recommended Solution
The correct solution for FANUC SV0466 depends on whether the alarm is caused by incorrect drive selection, wrong motor code, wrong servo parameter initialization, FSSB connection order mismatch, parameter backup mismatch, or incorrect P2165 setting.
1. Confirm When the Alarm Appeared
First, confirm the machine condition before SV0466 appeared.
Check whether the alarm occurred after replacing a drive, adding a fourth axis, restoring machine parameters, changing FSSB wiring, or initializing servo motor parameters. This helps narrow down whether the issue is hardware selection, parameter setting, or connection order.
2. Check Whether the Servo Amplifier Matches the Motor
If the alarm appeared after drive replacement or axis addition, confirm whether the servo amplifier model matches the connected motor.
If the drive model and motor current requirement do not match, replace the drive with a suitable amplifier model.
3. Check the Motor Code
Check whether the motor code of the alarm axis is set correctly.
The motor code should match the actual servo motor model. If the motor code is wrong, correct it and reinitialize the servo motor parameters.
4. Reinitialize Servo Motor Parameters Correctly
Use the correct motor parameter list to confirm whether the servo motor parameters have been initialized correctly.
If the parameters do not match the actual motor, reinitialize the motor parameters according to the correct motor code and motor model.
5. Check the FSSB Connection Order
Check whether the FSSB optical fiber connection order matches the parameter setting.
Each axis should correspond to the correct servo amplifier. If the actual fiber connection does not match the CNC parameter setting, restore the connection to the correct order or correct the parameter setting according to the actual configuration.
6. Check Restored Machine Parameters
If SV0466 appeared after restoring a full machine parameter backup, confirm whether the restored parameters match the actual machine hardware.
If the backup belongs to another configuration, or if the machine has changed drives or motors, the restored servo parameters may not be suitable.
7. Check Parameter P2165
Check whether parameter P2165 matches the actual amplifier.
If P2165 does not match the installed amplifier, correct the parameter according to the machine and amplifier configuration. If the alarm only needs to be temporarily masked for testing another function, P2165 may be set to 0, but this should only be used as a temporary test measure.
8. Contact REACO CNC If the Combination Cannot Be Confirmed
If you are not sure whether the motor, amplifier, FSSB order, motor code, and P2165 setting are correct, contact REACO CNC for checking support.
If your machine shows FANUC SV0466 motor and amplifier combination mismatch alarm, please contact REACO CNC directly. Our team can help check the servo amplifier model, motor model, motor code, FSSB connection order, servo parameter initialization, restored parameter backup, and parameter P2165 setting.
REACO CNC Support for FANUC SV0466 Alarm
REACO CNC provides support for FANUC CNC systems, servo amplifiers, servo motors, FSSB connection configuration, motor code checking, and servo parameter initialization.
We can help with:
- FANUC CNC alarm analysis
- FANUC SV0466 alarm troubleshooting
- Motor and amplifier matching check
- Servo amplifier model confirmation
- Servo motor model and motor code checking
- Servo motor parameter initialization guidance
- FSSB connection order checking
- Axis and amplifier assignment checking
- Parameter P2165 checking guidance
- Replacement FANUC CNC parts supply
If you are not sure whether the SV0466 alarm is caused by wrong amplifier selection, incorrect motor code, FSSB connection order mismatch, parameter backup mismatch, or incorrect P2165 setting, you can send us the CNC system model, alarm screen, servo amplifier model, servo motor model, FSSB connection photos, motor code setting, P2165 value, and parameter backup condition. Our team will help check the possible cause.
FAQ About FANUC SV0466 Alarm
What is FANUC SV0466 alarm?
FANUC SV0466 alarm means motor and amplifier combination mismatch. It occurs when the amplifier maximum current value does not match the motor maximum current value.
What causes FANUC SV0466 motor/amplifier combination mismatch?
The alarm may be caused by an incorrect servo amplifier model, wrong motor code, incorrect servo motor parameter initialization, FSSB connection order mismatch, restored parameters that do not match the machine, or incorrect P2165 setting.
When does SV0466 usually appear?
SV0466 often appears after replacing a servo amplifier, adding a fourth axis, restoring full machine parameters, changing FSSB connection order, or initializing servo motor parameters incorrectly.
What should I check first when SV0466 appears?
First, confirm what changed before the alarm appeared. Check whether a drive was replaced, a fourth axis was added, parameters were restored, or FSSB wiring was changed.
Can the wrong motor code cause SV0466?
Yes. If the motor code does not match the actual servo motor, the CNC may load incorrect motor data and detect a motor/amplifier combination mismatch.
Can FSSB connection order cause SV0466?
Yes. If the FSSB optical fiber connection order does not match the parameter setting, the CNC may associate the wrong amplifier with the wrong axis or motor and generate SV0466.
What is parameter P2165 used for in SV0466 troubleshooting?
Parameter P2165 should match the actual amplifier configuration. For temporary testing only, setting P2165 to 0 may mask the alarm, but this should not be used as a permanent solution.
How can I fix FANUC SV0466 alarm?
Check whether the servo amplifier matches the motor, confirm the motor code, reinitialize servo motor parameters using the correct motor parameter list, check FSSB connection order, verify restored machine parameters, and confirm whether P2165 matches the actual amplifier.
Need Help with FANUC SV0466 Alarm?
If your CNC machine has a FANUC SV0466 motor and amplifier combination mismatch alarm, please contact REACO CNC. We can help analyze the alarm cause and provide suitable FANUC CNC repair, motor code checking, amplifier matching support, FSSB connection order checking, servo parameter initialization guidance, or replacement FANUC parts support.
Reference Source: Beijing FANUC. This article is based on technical documentation provided by Beijing FANUC. For More Fanuc CNC repair Cases and technical articles, please back to Fanuc Technical Support Center.
