Name: FANUC A16B-2203-0452 Alpha SVM1-80 Power Board
Brand: FANUC
Price: 328.0 USD
Availability: InStock

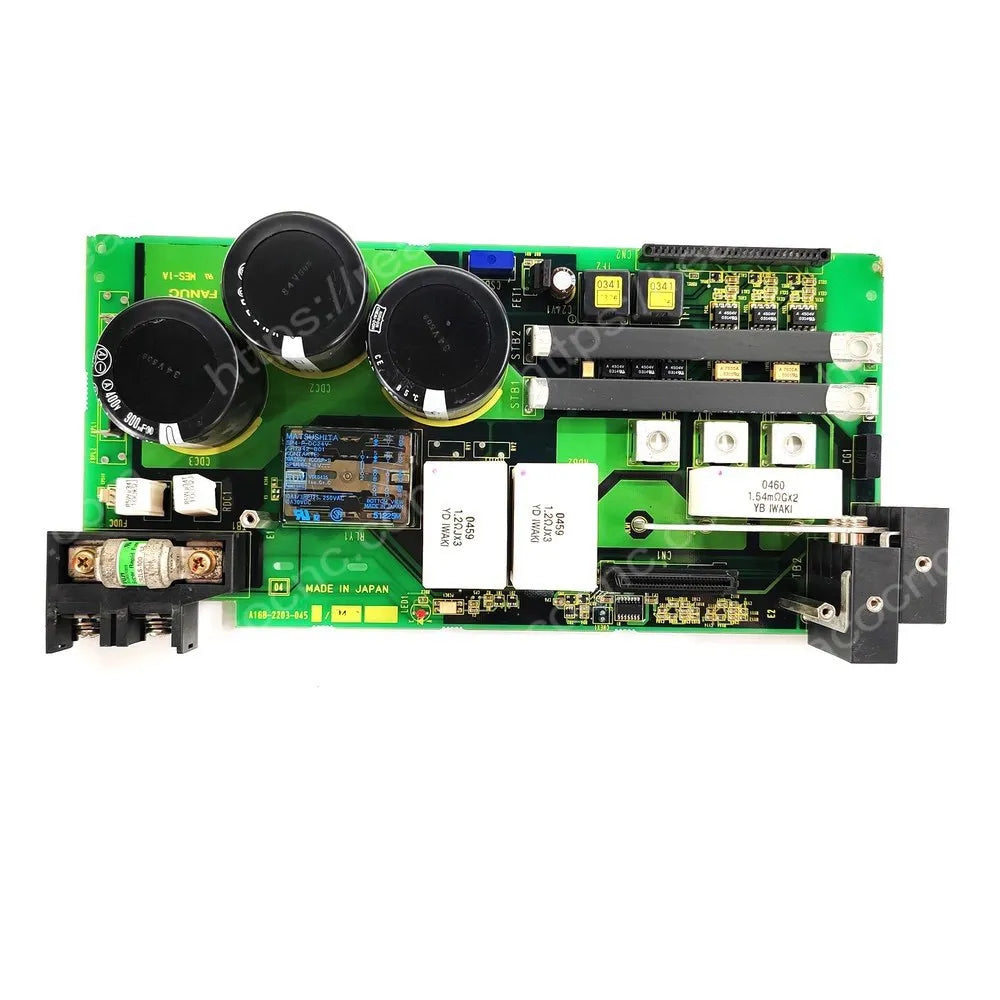

FANUC A16B-2203-0452 SVM1-80 servo power board main view

FANUC A16B-2203-0452 Alpha SVM1-80 Power Board

Disponibile

• Testing Video Provided

$328.00 USD

Spedizione:

Consegna: Consegna stimata in 2-6 giorni lavorativi. Vedi dettagli

Resi: 14 giorni per i resi. Vedi dettagli

Tutte le parti sono coperte dalla garanzia REACO CNC

Tutte le parti sono state testate sotto carico

Risposta rapida, spedizione globale, spedizione rapida disponibile

Supporto tecnico gratuito

Oltre 100.000 pezzi in magazzino e pronti per la consegna

FANUC A16B-2203-0452 is an internal power and wiring board for Alpha SVM1-80 servo amplifier modules. FANUC documents it for compatible A06B-6079-H105 and A06B-6096-H105 single-axis amplifiers, where it forms the base power assembly used with the applicable control PCB.

The earlier wiring-board specification is A16B-2202-0762. Confirm the complete amplifier number, interface type, board revision and control PCB before replacement.

A16B-2203-0452 Product Information

Brand	FANUC
Model / MPN	A16B-2203-0452
Series	FANUC Alpha servo amplifier series
Product Type	Servo-amplifier power board / wiring board
Amplifier Model	SVM1-80 single-axis servo amplifier
Type A/B Host Module	A06B-6079-H105
Type A/B Control PCB	A20B-2001-0930
FSSB Host Module	A06B-6096-H105
FSSB Control PCB	A20B-2100-0540 for the documented later configuration
Earlier Wiring Spec	A16B-2202-0762
Earlier FSSB Control PCB	A20B-2100-0250
Voltage Class	200V-class Alpha servo drive platform
Status	Discontinued by manufacturer; stock subject to availability
Condition	New, refurbished, or used 90% new; subject to stock
Testing	100% tested before shipping; test video available
Handling	Normally 1–2 business days
Shipping / ETA	DHL, UPS, or FedEx worldwide; typically 3–7 business days
Warranty	1 year for new/refurbished; 3 months for used 90% new
Service / Packing	Free technical support; anti-static reinforced packing

SVM1-80 Power-Stage Wiring Platform

A16B-2203-0452 forms the internal power and connection platform of the compatible SVM1-80 amplifier. It supports the servo power stage and interfaces with the separately installed control PCB; it is not a standalone CNC axis-control board.

Type A/B and FSSB Compatibility

For A06B-6079-H105, the board is used in a Type A/B amplifier configuration with an A20B-2001-0930 control PCB. For A06B-6096-H105, it forms the later HRV3-compatible FSSB configuration with an A20B-2100-0540-series control PCB.

Earlier Board and Replacement Checks

A16B-2202-0762 and A20B-2100-0250 are documented earlier specifications. Do not mix earlier and later boards without confirming the complete amplifier hardware. REACO CNC checks the board number, revision, terminals, connectors, solder joints and operation in a compatible SVM1-80 setup as applicable.
